8.55 Registration Clutch

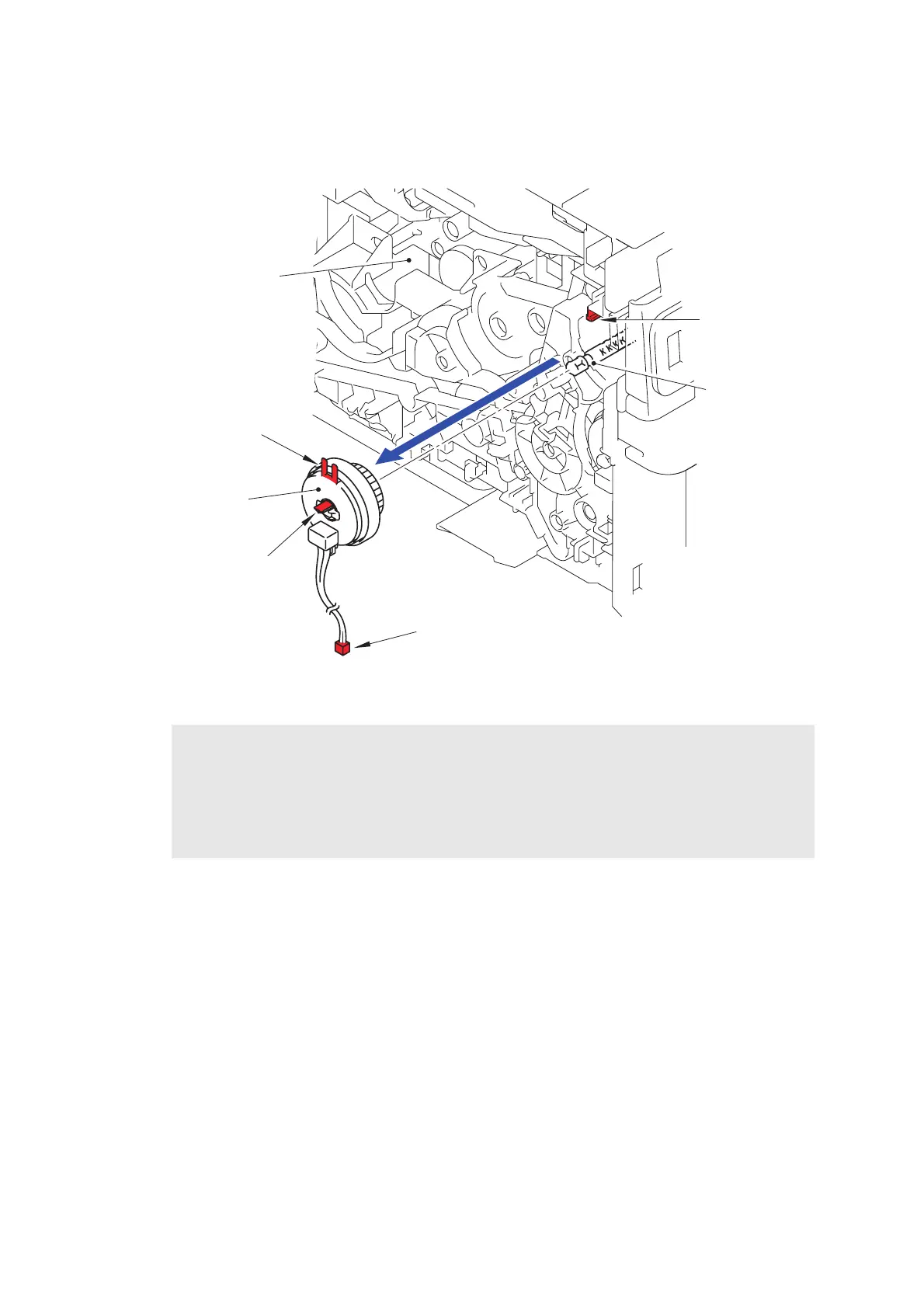

(1) Release the Hook to remove the Registration clutch from the PF registration drive joint.
Fig. 3-187
Assembling Note:
- When assembling the Registration clutch, attach the Rotation preventing hook to the Rib
of the Main body.
- Registration clutch and Paper feed clutch are both clutch parts, and they are identified
with connector colors. The connector of the Registration clutch is red. Be careful not to
install an incorrect clutch.
Hook
Registration clutch
<Left side>
Side frame L ASSY
PF registration
drive joint
Red connector
Rib
Rotation preventing hook
To Next Page
