8.25 Paper Stack Lever
(1) Turn the ADF unit upside down.
(2) Remove the Taptite cup B 3x10 screw from the ADF unit.

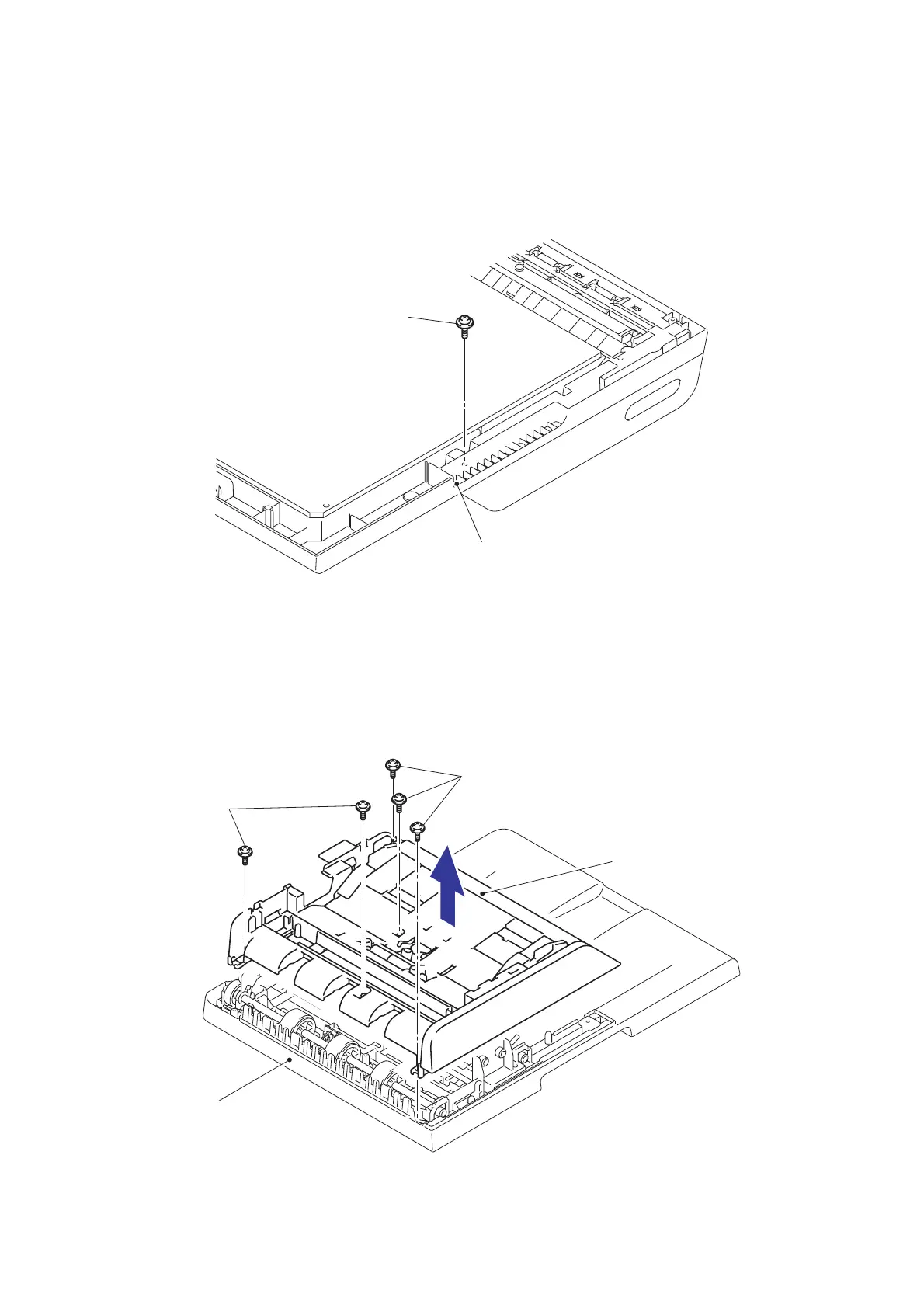

Fig. 3-74
(3) Return the ADF unit to the original position.
(4) Remove the five Taptite cup B 3x10 screws from the Upper ADF chute.
(5) Remove the Upper ADF chute from the ADF unit.
Fig. 3-75
Taptite cup B 3x10
ADF unit
Taptite cup B 3x10
Taptite cup B 3x10
Upper ADF chute
ADF unit
