Brother MFC-9340CDW - Pull Arm L;Pull Arm R;Pull Arm Spring

3-45
Confidential
8.12 Pull Arm L/Pull Arm R/Pull Arm Spring

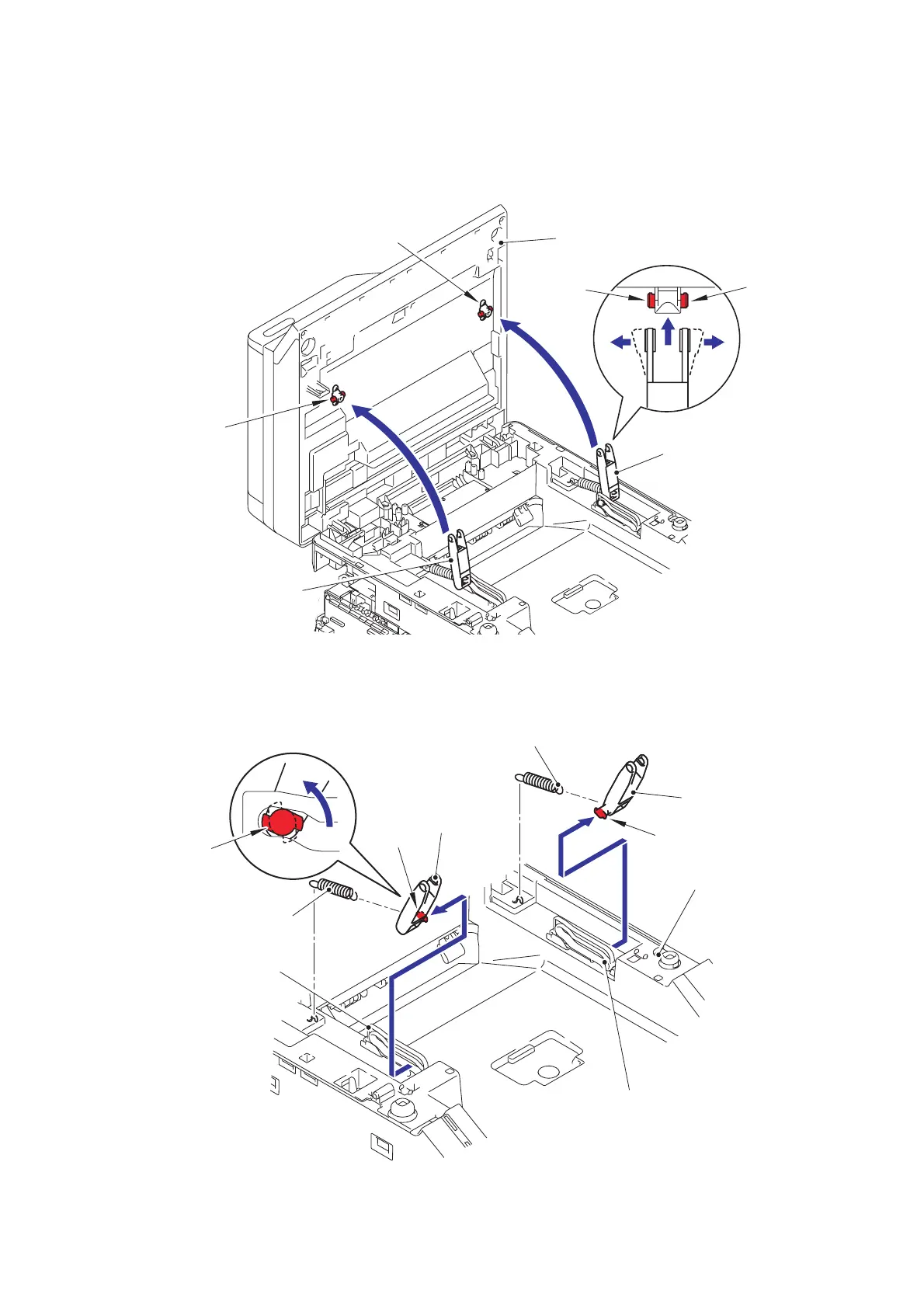

(1) Release the two Bosses by opening the Pull arms R and L at the joint of the Document
scanner unit.
Fig. 3-30
(2) Remove the Pull arm L and Pull arm spring from the Pull arm guide on the left side.
(3) Remove the Pull arm R and Pull arm spring from the Pull arm guide on the right side.
Fig. 3-31
Document scanner unit
Pull arm R
Pull arm L
Boss
Boss
<Front side>
Boss
Boss
Rib
Rib
Rib
Pull arm spring
Pull arm spring
Pull arm L
Pull arm R
Main body
Pull arm guide
Pull arm guide
<Front side>
