Brother MFC-9340CDW - Paper Eject ASSY

3-144
Confidential
8.61 Paper Eject ASSY

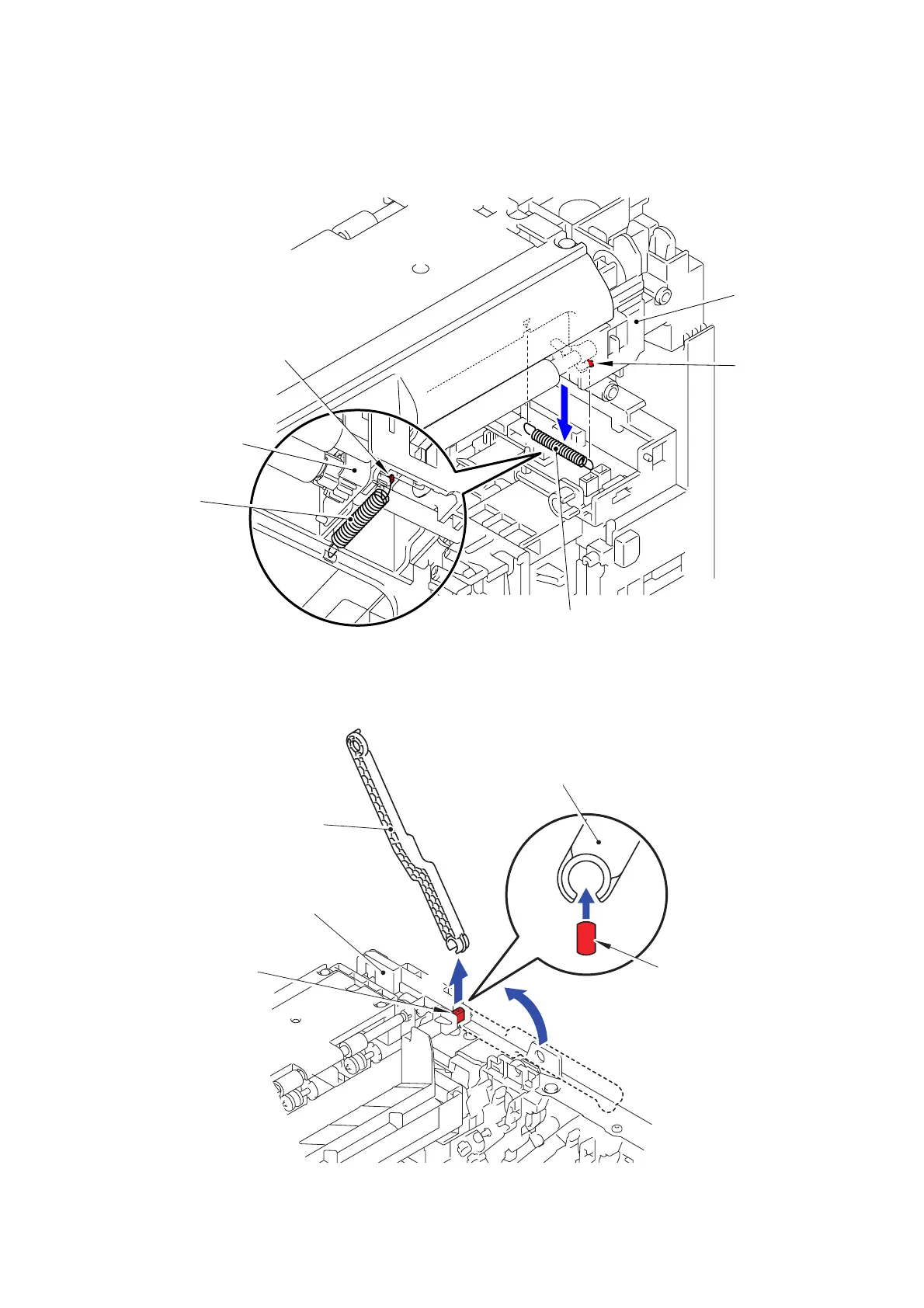

(1) Release the Hook to remove the Cooling roller spring L from the Paper eject ASSY.
(2-sided printing model only)
Fig. 3-206
(2) Raise the Arm R as shown in the figure, and then remove it from the Boss of the Paper eject
ASSY.
Fig. 3-207
Hook
Paper eject
Cooling roller spring L
Hook
Paper eject ASSY
Cooling roller
ASSY
(2-sided printing
spring L
<Front side>
model only)
Arm R
Paper eject ASSY
Boss
Boss
Arm R
2a
2b
2b
