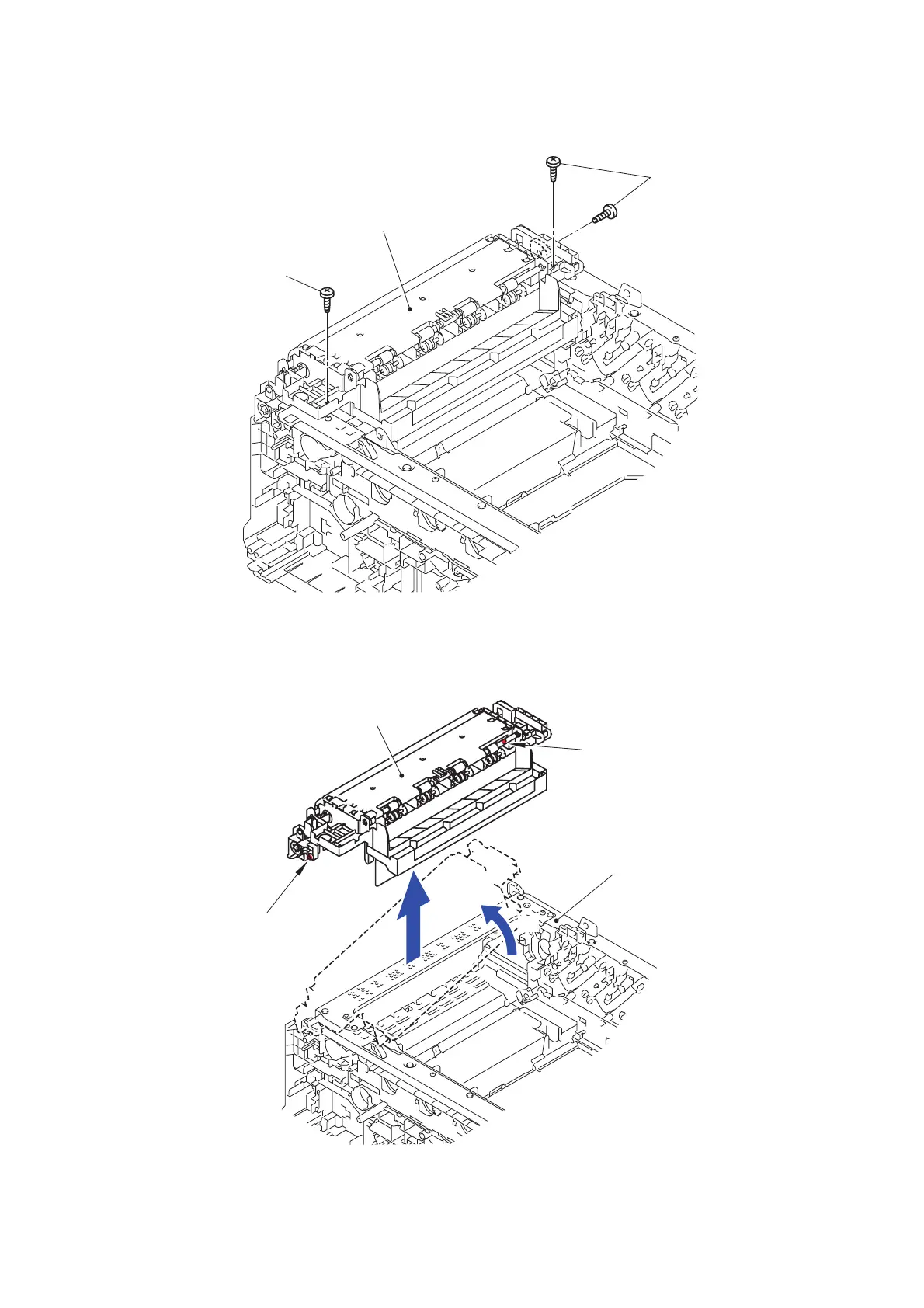

(3) Remove the three Taptite bind B M4x12 screws from the Paper eject ASSY.
Fig. 3-208
(4) Remove the two Bosses to remove the Paper eject ASSY from the Main body.
Fig. 3-209
Taptite bind B M4x12
Taptite bind B M4x12
Paper eject ASSY
<Left side>
Paper eject ASSY
Main body
Boss
Boss
<Left side>
4a
4b
