3-32
Confidential

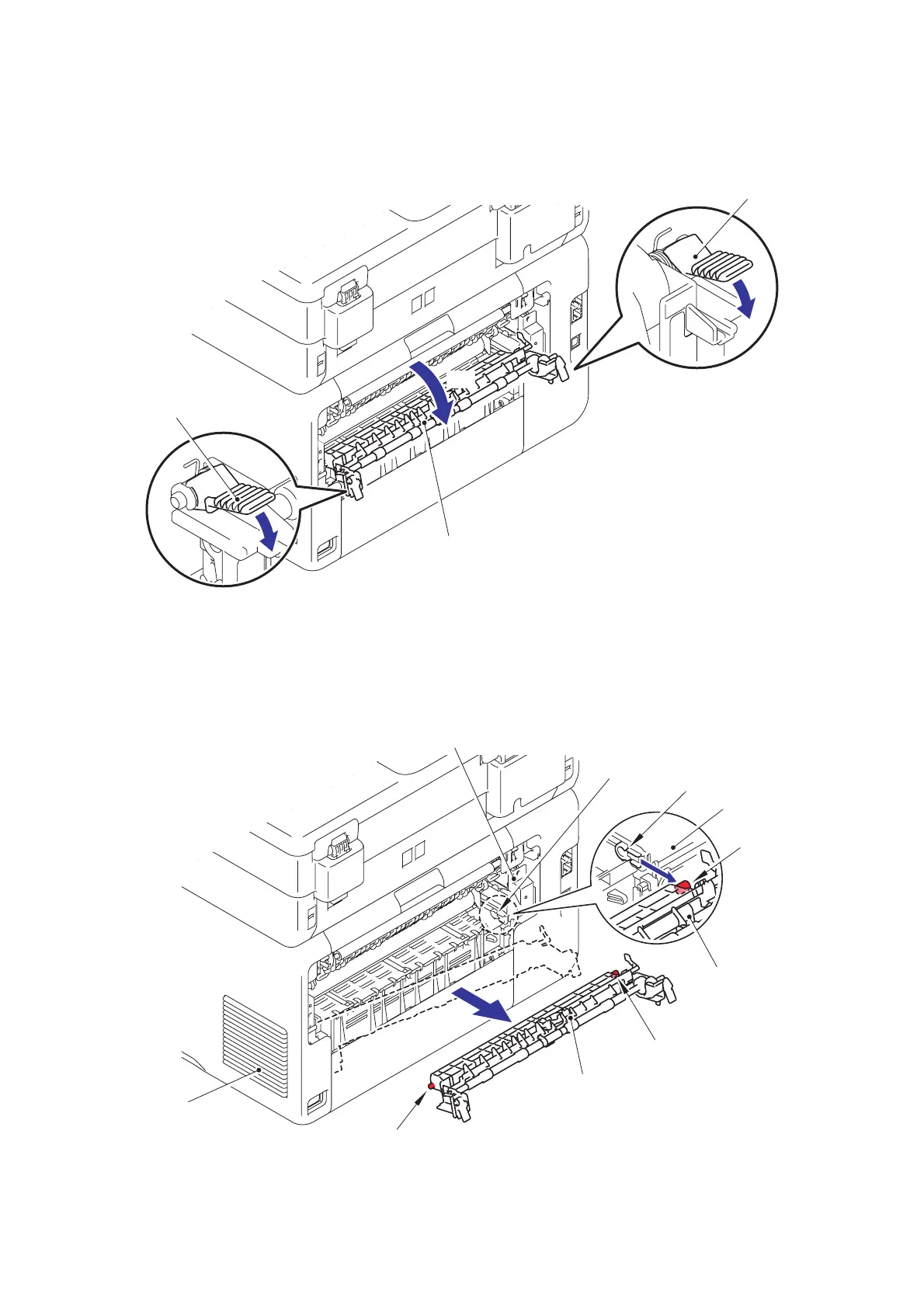

8.4 Fuser Cover ASSY
(1) Release the lock of the Lock lever L/R to open the Fuser cover ASSY.
Fig. 3-7
(2) Remove the left side Boss of the Fuser cover ASSY from the Bush of the Main body.
(3) Remove the right side Boss of the Fuser cover ASSY from the Bush of the Main body.
Fig. 3-8
Fuser cover ASSY
Lock lever L
Lock lever R
<Back side>
1a
1a
1b
Fuser cover ASSY
Main body
Boss
Bush
Bush
Fuser cover L
Fuser cover ASSY
Boss
Boss
Fuser cover L
<Back side>
