Brother MFC-9340CDW - Joint Cover Side R;Speaker Unit

3-96
Confidential

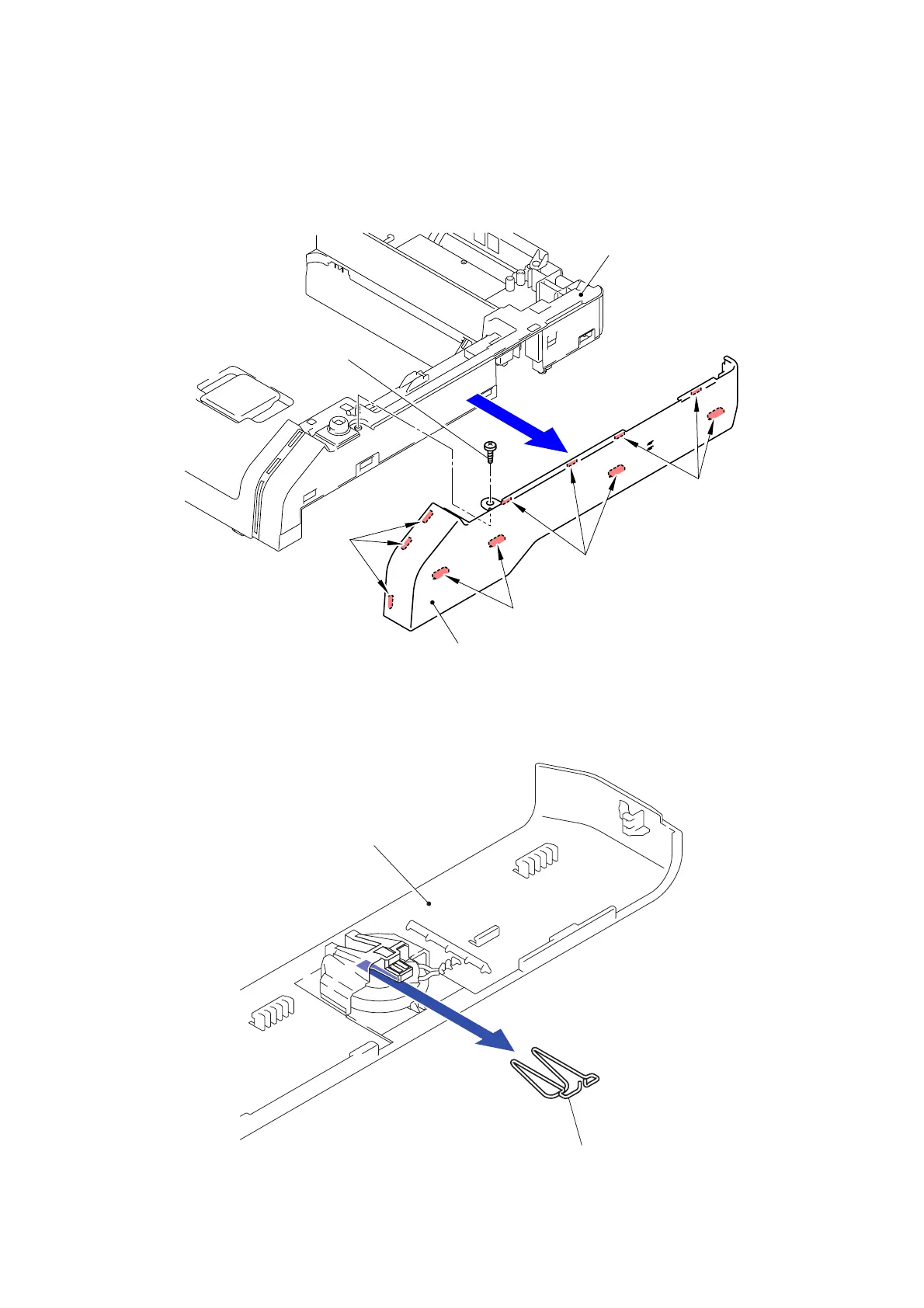

8.38 Joint Cover Side R/Speaker Unit
(1) Disconnect the wiring of the Speaker unit harness from the Joint cover ASSY.
(2) Remove the Taptite bind B M4x12 screw. Release the eleven Hooks to remove the Joint
cover side R from the Joint cover ASSY.
Fig. 3-125
(3) Remove the Speaker hold spring from the Joint cover side R.
Fig. 3-126
Hook
Hook
Hook
Hook
Joint cover ASSY
Joint cover side R
Taptite bind B M4x12
Joint cover side R
Speaker hold spring
