Brother MFC-9340CDW - Flat Cable Holder ASSY; Hinge Arm R

3-53
Confidential

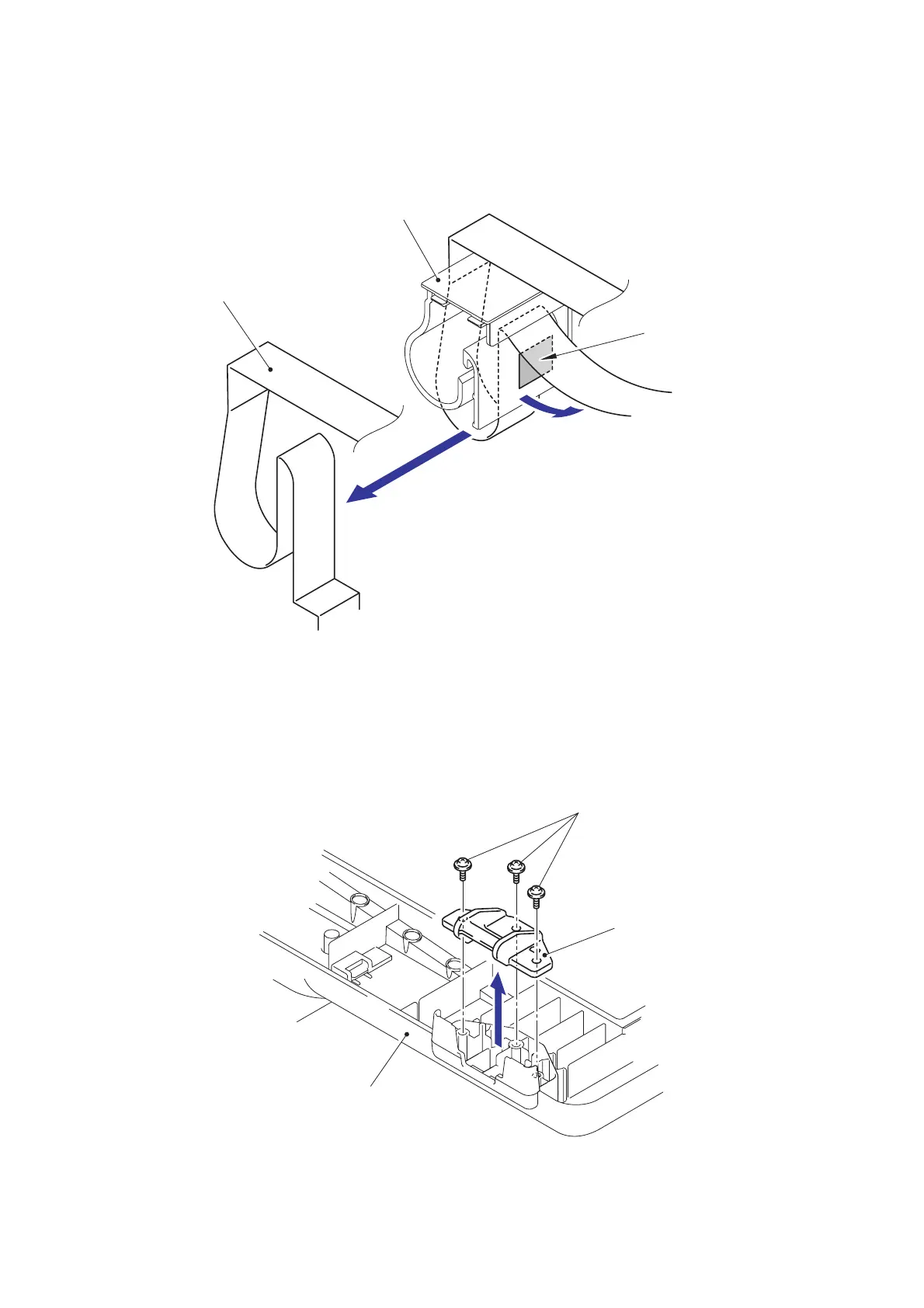

8.16 Flat Cable Holder ASSY
(1) Remove the Flat cable from the Flat cable holder ASSY by removing the Double-sided
adhesive tape.
Fig. 3-46
8.17 Hinge Arm R
(1) Remove the three Taptite cup B 3x10 screws to remove the Hinge arm R from the ADF unit.
Fig. 3-47
Flat cable holde ASSY
Flat cable
1a
1b
Double-sided adhesive tape
Taptite cup B 3x10
Hinge arm R
ADF unit
