Brother MFC-9340CDW - Side Cover L

3-39
Confidential
8.7 Side Cover L

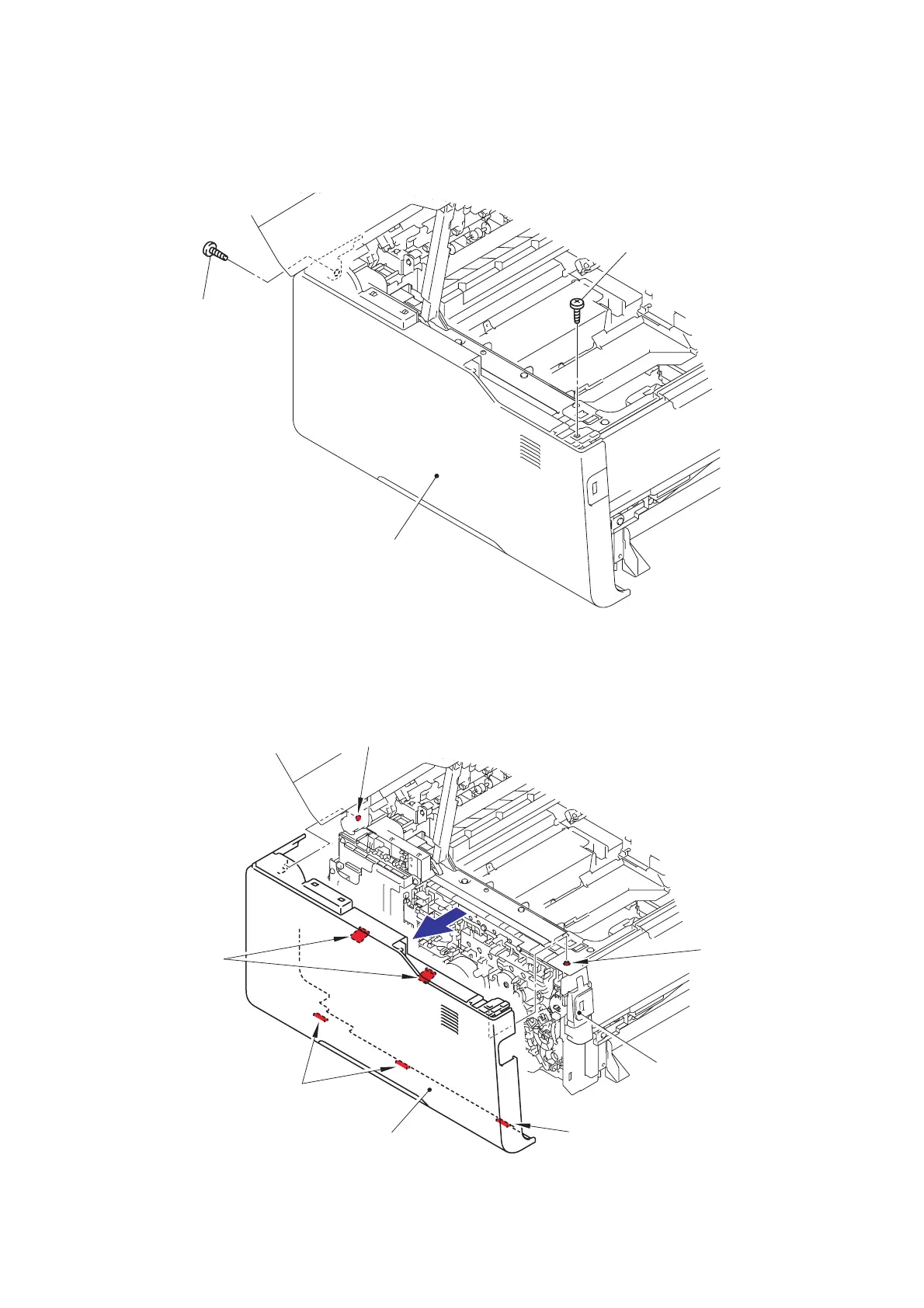

(1) Remove the two Taptite bind B M4x12 screws from the Side cover L.
Fig. 3-20
(2) Release the two Hooks and two Bosses on the upper side and three Hooks on the bottom
to remove the Side cover L from the Main body.
Fig. 3-21
Side cover L
Taptite bind B M4x12
Taptite bind B M4x12
<Left side>
Hook
Hook
Hook
Main body
Side cover L
Boss
Boss
<Left side>
