Brother MFC-9340CDW Service Manual

3-38
Confidential

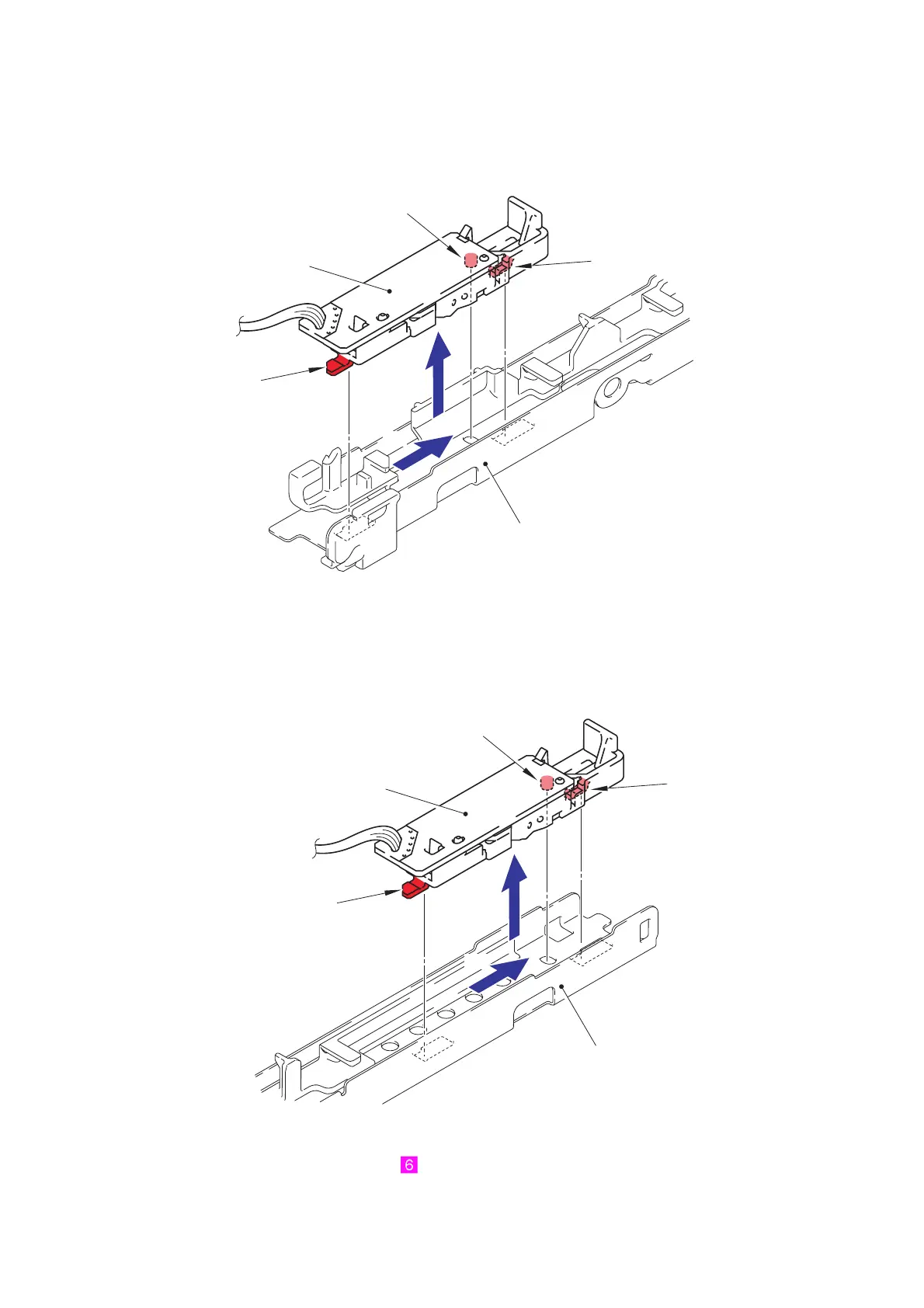

(5) Disconnect the wiring of the Registration mark L PCB harness.
(6) As the Boss being removed, slide the Registration mark L PCB ASSY in the direction of
the arrow 6a to remove it from the Registration sensor ASSY.
Fig. 3-18
(7) Disconnect the wiring of the Registration mark R PCB harness.
(8) As the Boss being removed, slide the Registration mark R PCB ASSY in the direction of
the arrow 8a to remove it from the Registration sensor ASSY.
Fig. 3-19
Harness routing: Refer to " Registration Mark L PCB ASSY,
Registration Mark R PCB ASSY"
Hook
Hook
Registration sensor ASSY
6a
6b
Boss
Hook
Hook
Registration mark L PCB ASSY
6b
Registration sensor ASSY
Hook
Hook
Boss
Registration mark R PCB ASSY
8a
8b

Brother MFC-9340CDW Specifications

Printing Specifications

print speed (black)	up to 23 ppm
print speed (color)	up to 23 ppm
print resolution	up to 600 x 2400 dpi
automatic duplex printing	Yes

Copying Specifications

copy speed (black)	up to 23 cpm
copy speed (color)	up to 23 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution (optical)	1200 x 2400 dpi
scan resolution (interpolated)	19200 x 19200 dpi

Fax Specifications

fax modem	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Memory and Interfaces

memory (standard/max)	192MB / 192MB
standard interfaces	Wireless 802.11b/g/n, Ethernet, Hi-Speed USB 2.0
usb direct interface	Yes

Supplies and Accessories

black toner cartridge yield	2, 500 pages
cyan toner cartridge yield (standard)	1, 400 pages
magenta toner cartridge yield (standard)	1, 400 pages
yellow toner cartridge yield (standard)	1, 400 pages
cyan toner cartridge yield (high capacity)	2, 200 pages
magenta toner cartridge yield (high capacity)	2, 200 pages
yellow toner cartridge yield (high capacity)	2, 200 pages
drum unit yield	15, 000 pages
belt unit yield	50, 000 pages
waste toner box yield	50, 000 pages
multi-purpose paper	Letter, 500 sheets
