Brother MFC-9340CDW - Process Drive Unit

3-129
Confidential
8.53 Process Drive Unit

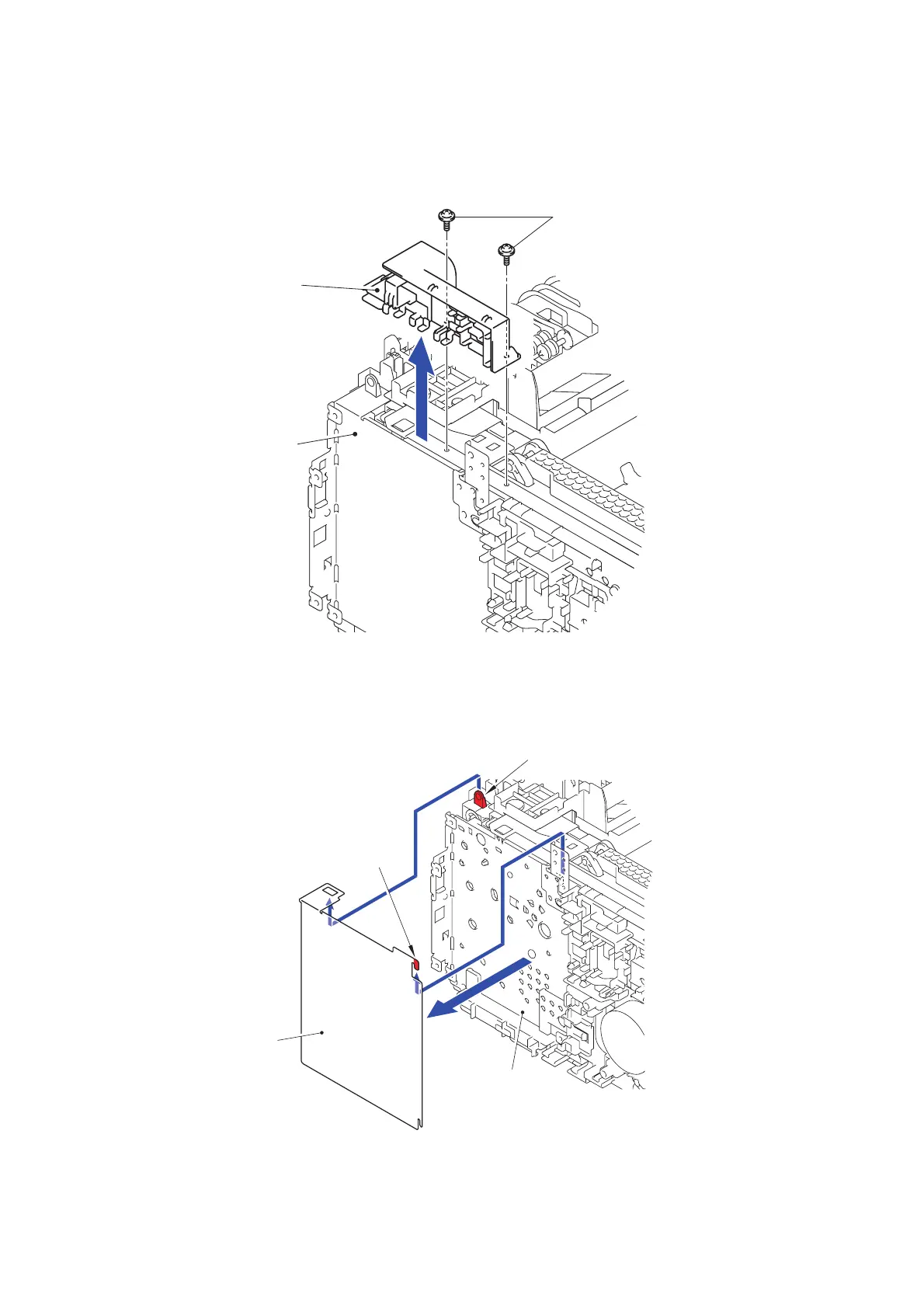

(1) Disconnect the wiring of the Back cover sensor harness.
(2) Remove the two Taptite cup S M3x8 SR screws to remove the Flat cable guide.
Fig. 3-180
(3) Release the two Hooks to remove the Main PCB insulation sheet from the Side frame L
ASSY.
Fig. 3-181
Main PCB insulation sheet
<Left side>
Flat cable guide
Taptite cup S M3x8 SR
Main PCB insulation sheet
<Left side>
Side frame L ASSY
Hook
Hook
