(4) Remove the two Taptite cup S M3x8 SR screws. Release the Hook to remove the Main
shield plate from the Side frame L ASSY.

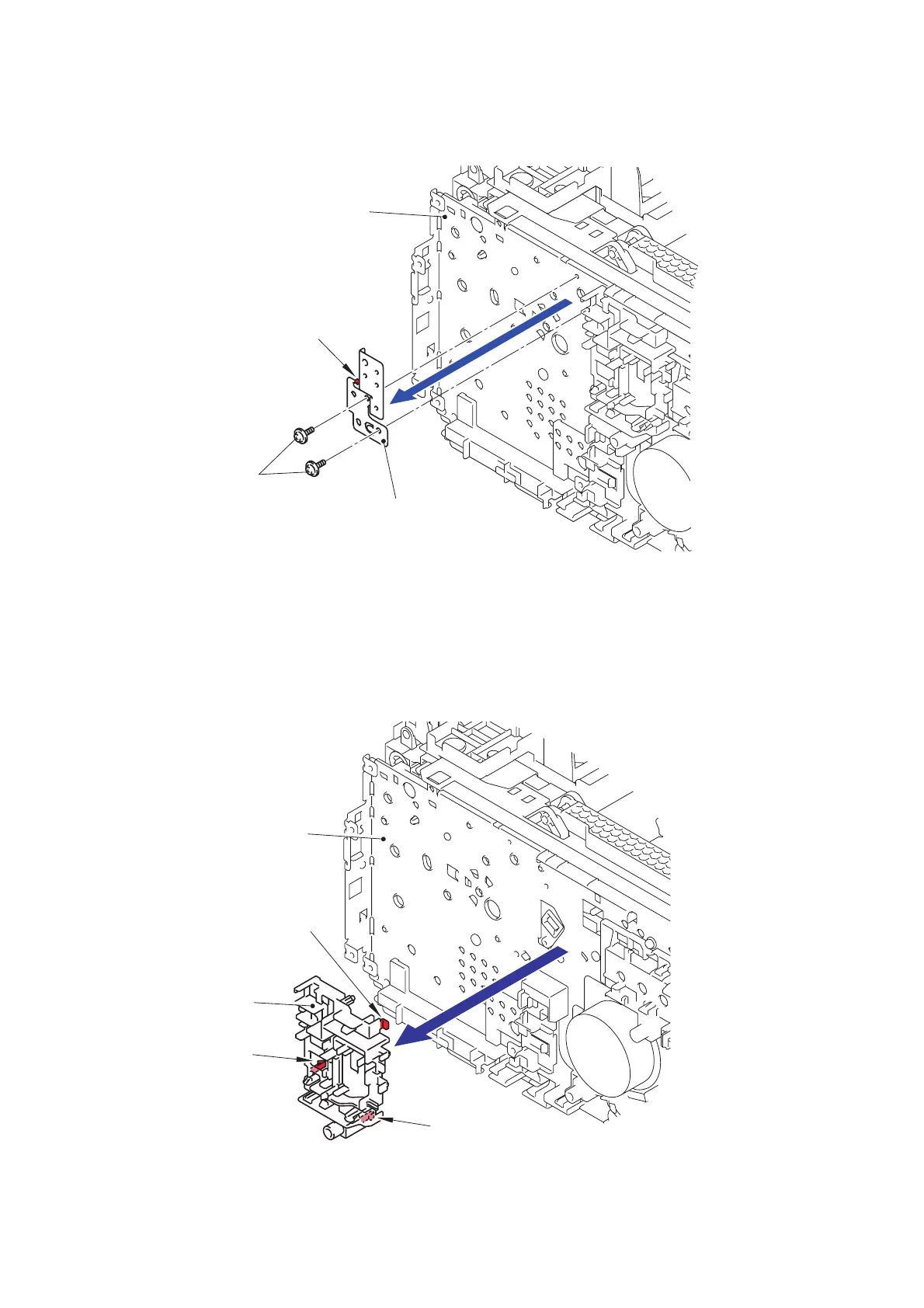

Fig. 3-182
(5) Disconnect the wiring of the USB host PCB harness, Registration clutch harness, Paper
feed clutch harness, Registration front/rear/manual feed sensor harness, Paper feed
harness and Eject sensor PCB harness.
(6) Release the three Hooks to remove the Line holder upper from the
Process drive unit .
Fig. 3-183
Side frame L ASSY
Hook
Taptite cup S M3x8 SR
<Left side>
Main shield plate
Hook
<Left side>
Hook
Hook
Process drive unit
Line holder upper
