Brother MFC-9340CDW Service Manual

3-131
Confidential

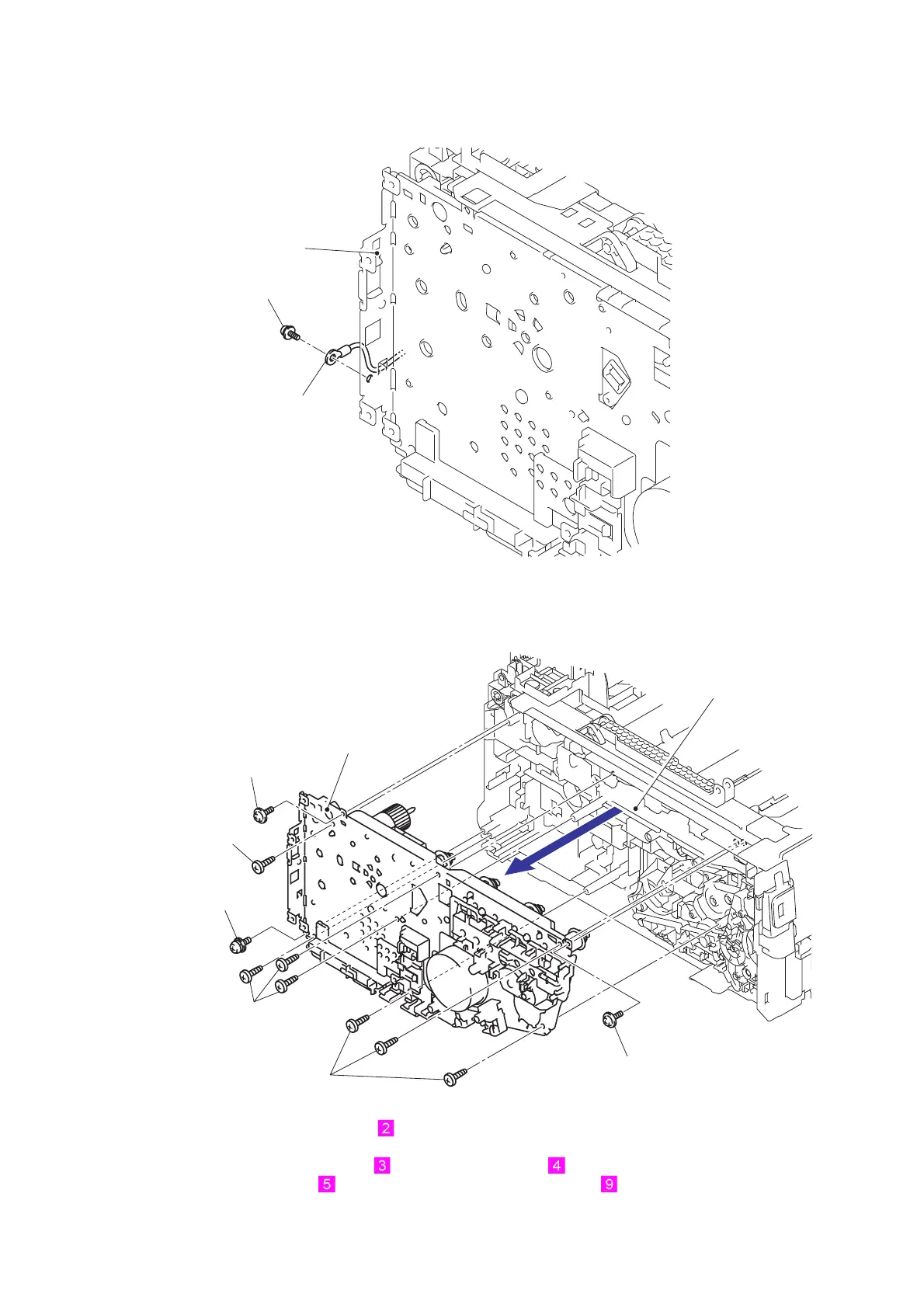

(7) Remove the Screw pan (S/P washer) M3.5x6 screw to remove the LVPS FG harness
from the Process drive unit.
Fig. 3-184
(8) Remove the two Taptite cup S M3x8 SR screws, seven Taptite bind B M4x12 screws, and
the one Taptite pan (washer) B M4x12 DA screw. Remove the Process drive unit from the
Side frame L ASSY.
Fig. 3-185
Harness routing: Refer to " External Temperature/Humidity Sensor PCB ASSY, Develop
Release Clutch, Registration Clutch, Paper Feed Clutch, USB Host PCB
ASSY", " Process Drive Unit", " Paper Feed Unit",
"
Back Cover Sensor Harness ASSY ", " Eject Sensor PCB ASSY "
Process drive unit
<Left side>
Screw pan (S/P washer) M3.5x6
LVPS FG harness
Process drive unit
Side frame L ASSY
Taptite cup S M3x8 SR
Taptite cup S M3x8 SR
Taptite pan
(washer) B M4x12 DA
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
<Left side>

Brother MFC-9340CDW Specifications

Printing Specifications

print speed (black)	up to 23 ppm
print speed (color)	up to 23 ppm
print resolution	up to 600 x 2400 dpi
automatic duplex printing	Yes

Copying Specifications

copy speed (black)	up to 23 cpm
copy speed (color)	up to 23 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution (optical)	1200 x 2400 dpi
scan resolution (interpolated)	19200 x 19200 dpi

Fax Specifications

fax modem	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Memory and Interfaces

memory (standard/max)	192MB / 192MB
standard interfaces	Wireless 802.11b/g/n, Ethernet, Hi-Speed USB 2.0
usb direct interface	Yes

Supplies and Accessories

black toner cartridge yield	2, 500 pages
cyan toner cartridge yield (standard)	1, 400 pages
magenta toner cartridge yield (standard)	1, 400 pages
yellow toner cartridge yield (standard)	1, 400 pages
cyan toner cartridge yield (high capacity)	2, 200 pages
magenta toner cartridge yield (high capacity)	2, 200 pages
yellow toner cartridge yield (high capacity)	2, 200 pages
drum unit yield	15, 000 pages
belt unit yield	50, 000 pages
waste toner box yield	50, 000 pages
multi-purpose paper	Letter, 500 sheets
