Brother MFC-9340CDW - Components

2-11
Confidential

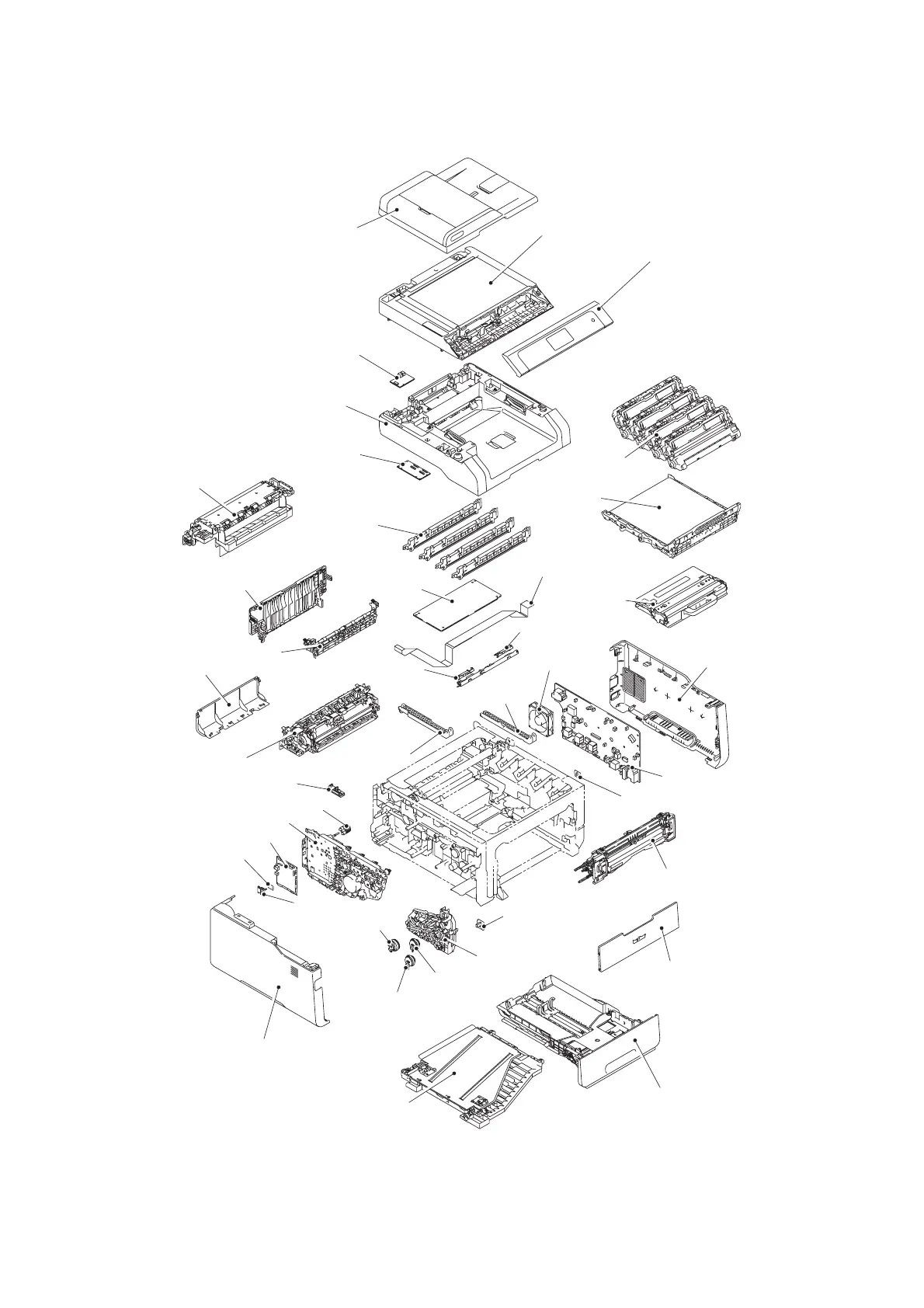

2.5 Components
Fig. 2-6
Belt unit
Paper eject ASSY
Side cover R
Side cover L
Joint arm L
Eject sensor PCB ASSY
Fuser drive gear Z25
Process drive unit
Main PCB ASSY
Paper feed unit
Main drive unit
Toner cartridge,
Back cover ASSY
Low-voltage power
Drum unit
supply PCB ASSY
HVPS flat cable
Waste toner
box
Fuser cover ASSY
Back cover lower
Registration mark
Registration mark
R PCB ASSY
L PCB ASSY
Main fan
High-voltage power
supply PCB ASSY
Develop release sensor PCB ASSY
Wireless LAN
PCB ASSY
Wireless LAN cap
Develop release clutch
Paper feed clutch
Registration clutch
External temperature/
humidity sensor
PCB ASSY
Manual feed slot
cover ASSY
Paper tray
Fuser unit
Duplex tray
LED ASSY
Joint cover ASSY
Joint arm R
ADF unit
Document scanner unit
Panel cover ASSY
Modem PCB ASSY
LED control PCB ASSY
