Brother MFC-9340CDW - Document Separate Roller ASSY

3-57
Confidential

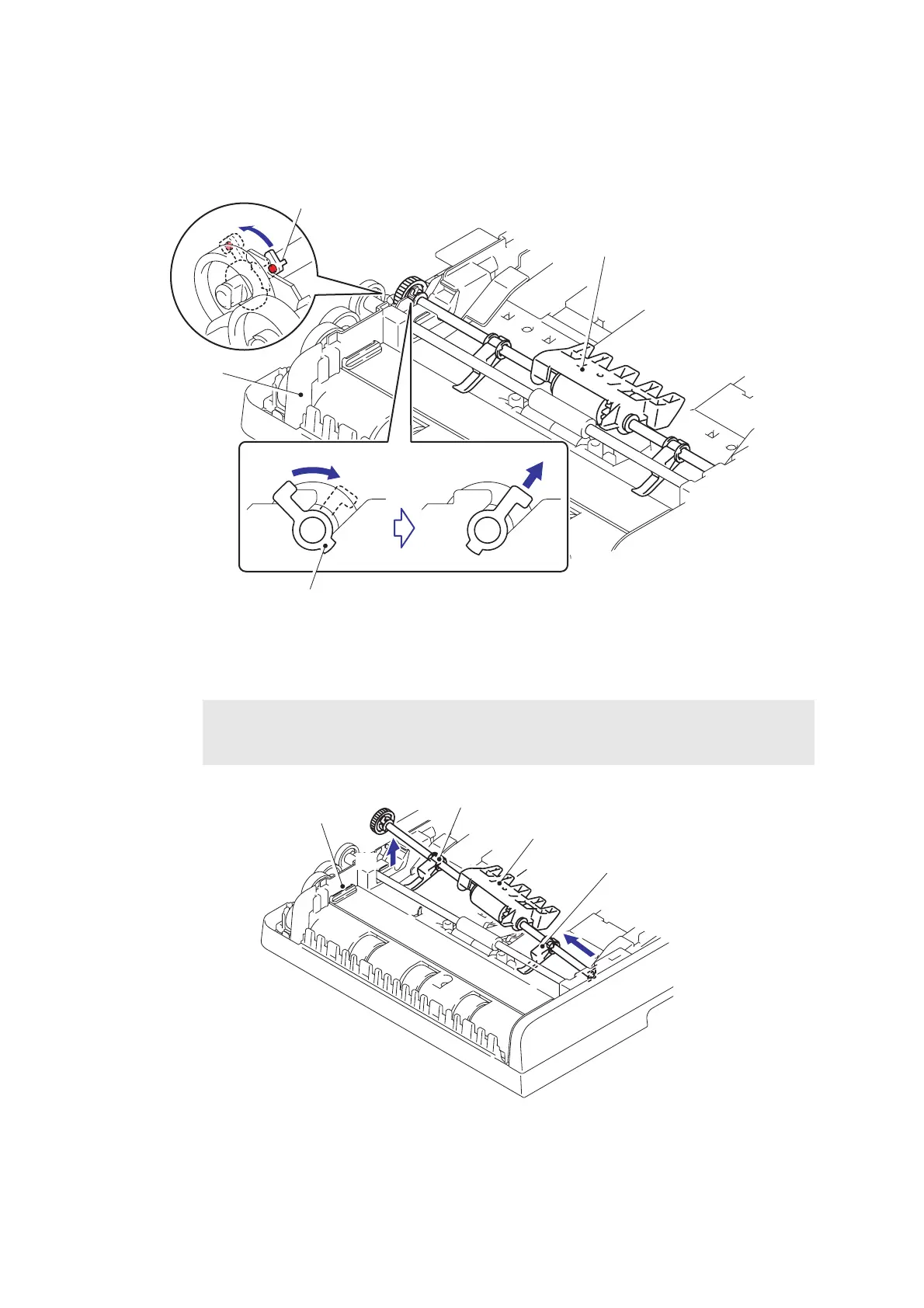

8.22 Document Separate Roller ASSY
(1) Rotate the Conductive bushing to release the lock.
Fig. 3-53
(2) Remove the Document separate roller ASSY from the ADF unit.
Fig. 3-54
Note:
When removing the Document separate roller ASSY, be careful not to damage the Flap
ADF.
Conductive bushing
ADF unit
Document separate roller ASSY
1a
1b
Conductive bushing
1a
Document separate roller ASSY
ADF unit
Flap ADF
Flap ADF
2b
2a
