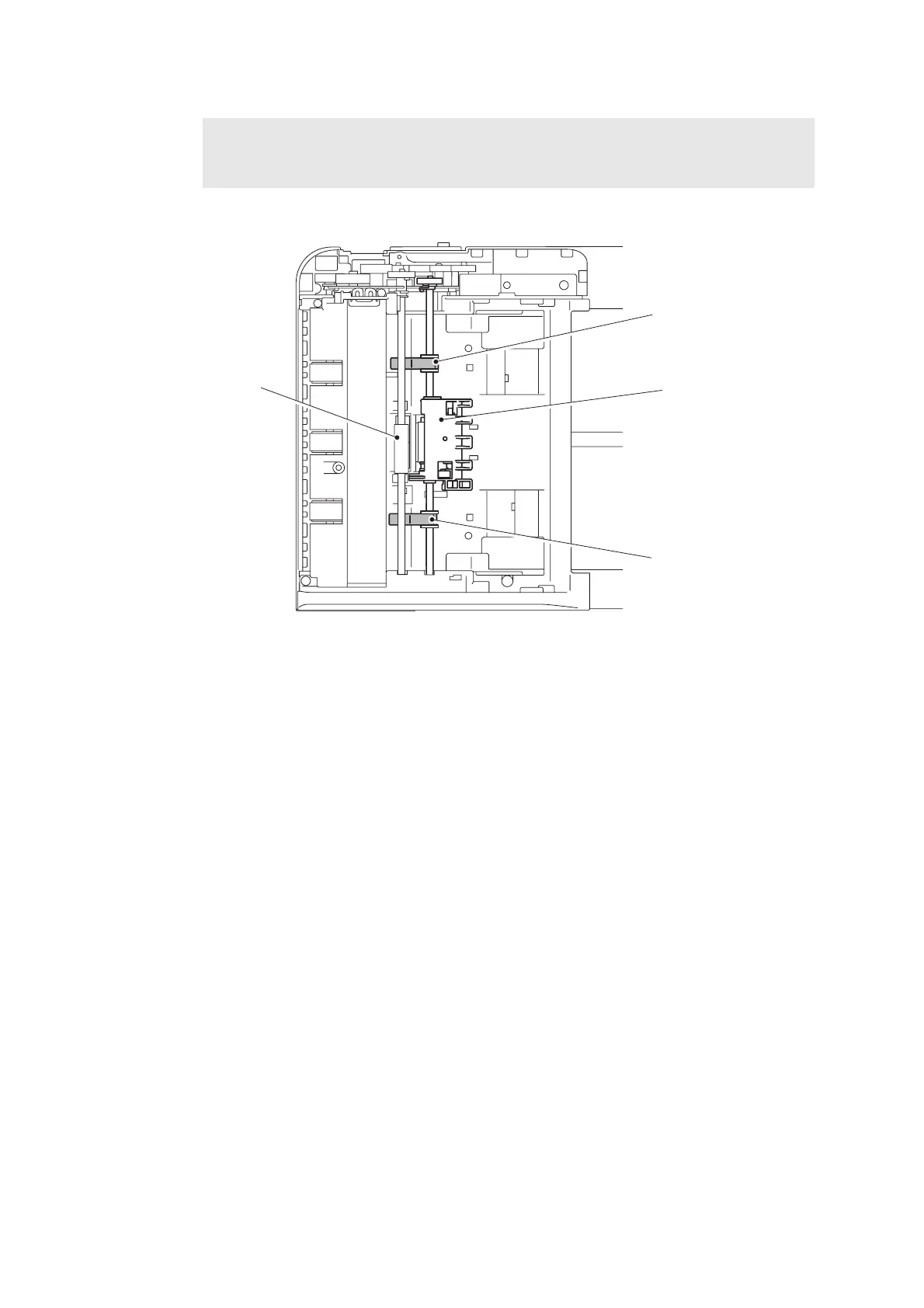

Fig. 3-55
Assembling Note:
When assembling the Document separate roller ASSY, be sure to assemble it in a way
that the Flap ADF comes under the Document feed roller ASSY1.
Document separate
Flap ADF
Flap ADF
Document feed roller
ASSY1
roller ASSY
