Brother MFC-9340CDW - Joint Cover ASSY

3-89
Confidential
8.35 Joint Cover ASSY

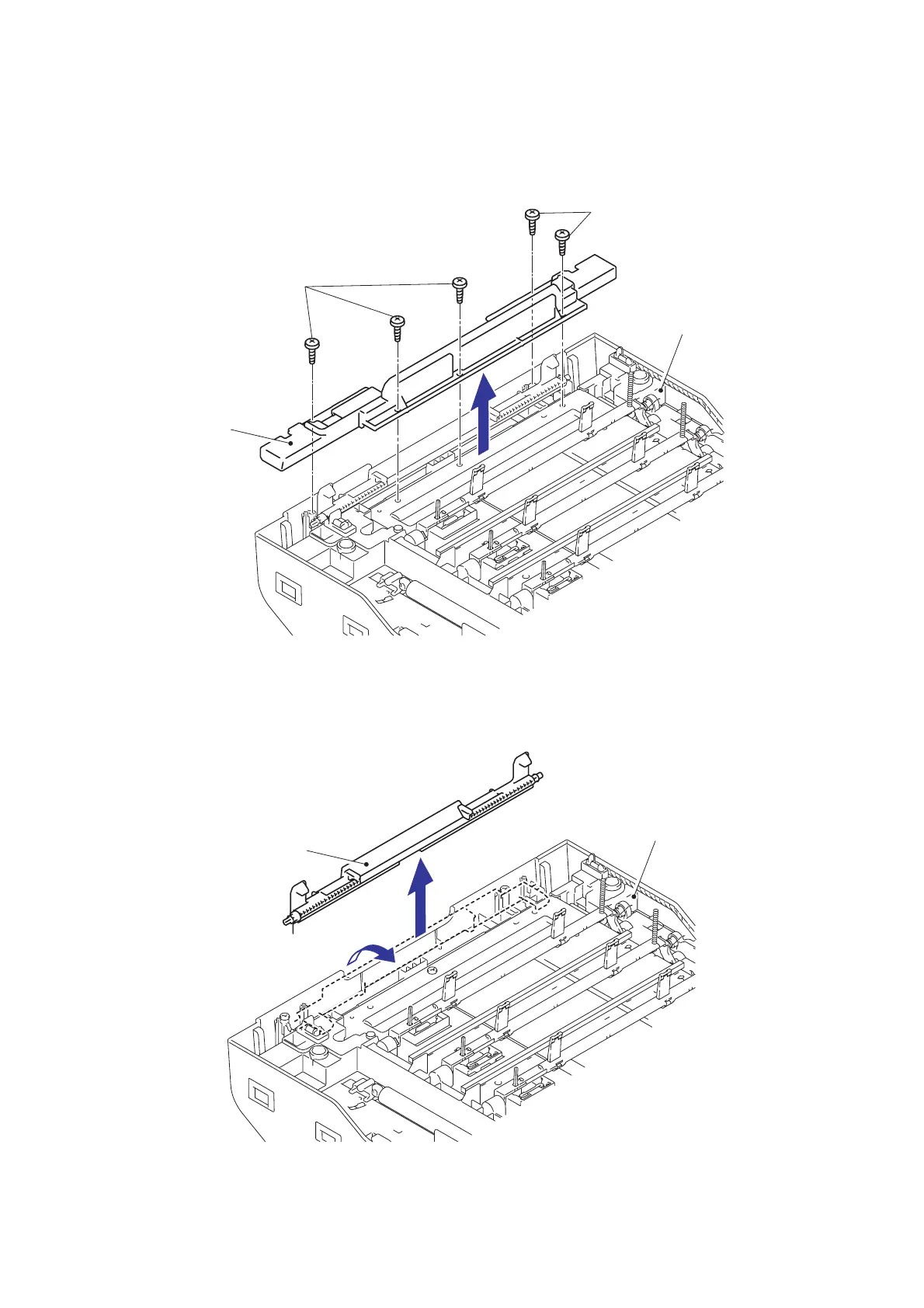

(1) Remove the five Taptite bind B M4x12 screws to remove the Joint cover open button
holder from the Joint cover ASSY.
Fig. 3-113
(2) Remove the Joint cover open button from the Joint cover ASSY.
Fig. 3-114
Taptite bind B M4x12
Taptite bind B M4x12
Joint cover ASSY
Joint cover open
button holder
Joint cover ASSY
2a
2b
Joint cover open button
