8.69 Low-voltage Power Supply PCB ASSY
(1) Turn the Main body upside down.

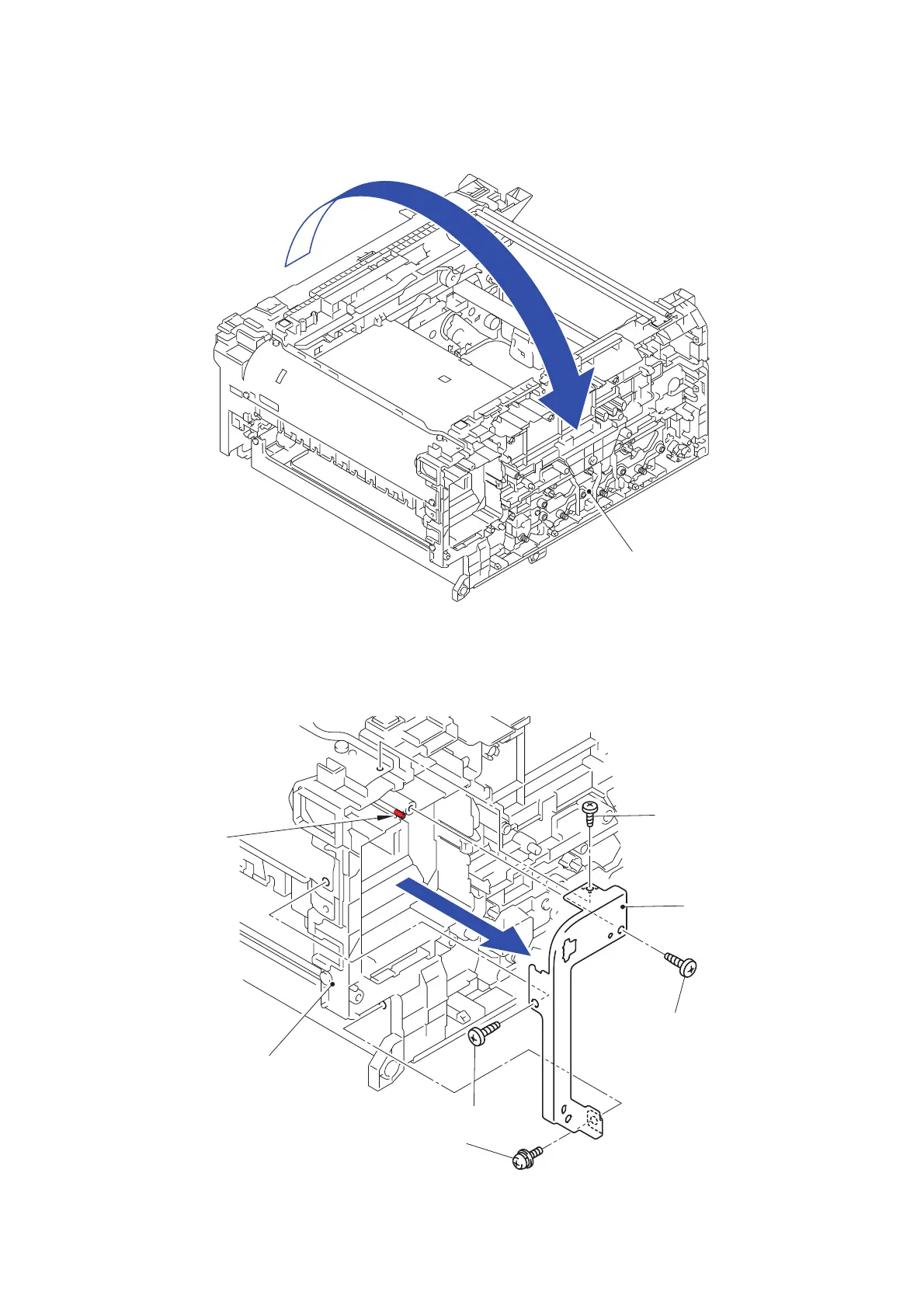

Fig. 3-228
(2) Remove the two Taptite bind B M4x12 screws, one Taptite bind S M3x5 screw, one Taptite
pan (washer) B M4x12 DA screw. Release the Boss to remove the Cover plate from the
Side frame R.
Fig. 3-229
Main body
Taptite bind B M4x12
Taptite bind B M4x12
Taptite pan (washer) M4x12 DA
Taptite bind S M3x5
Boss
Side frame R
Cover plate
