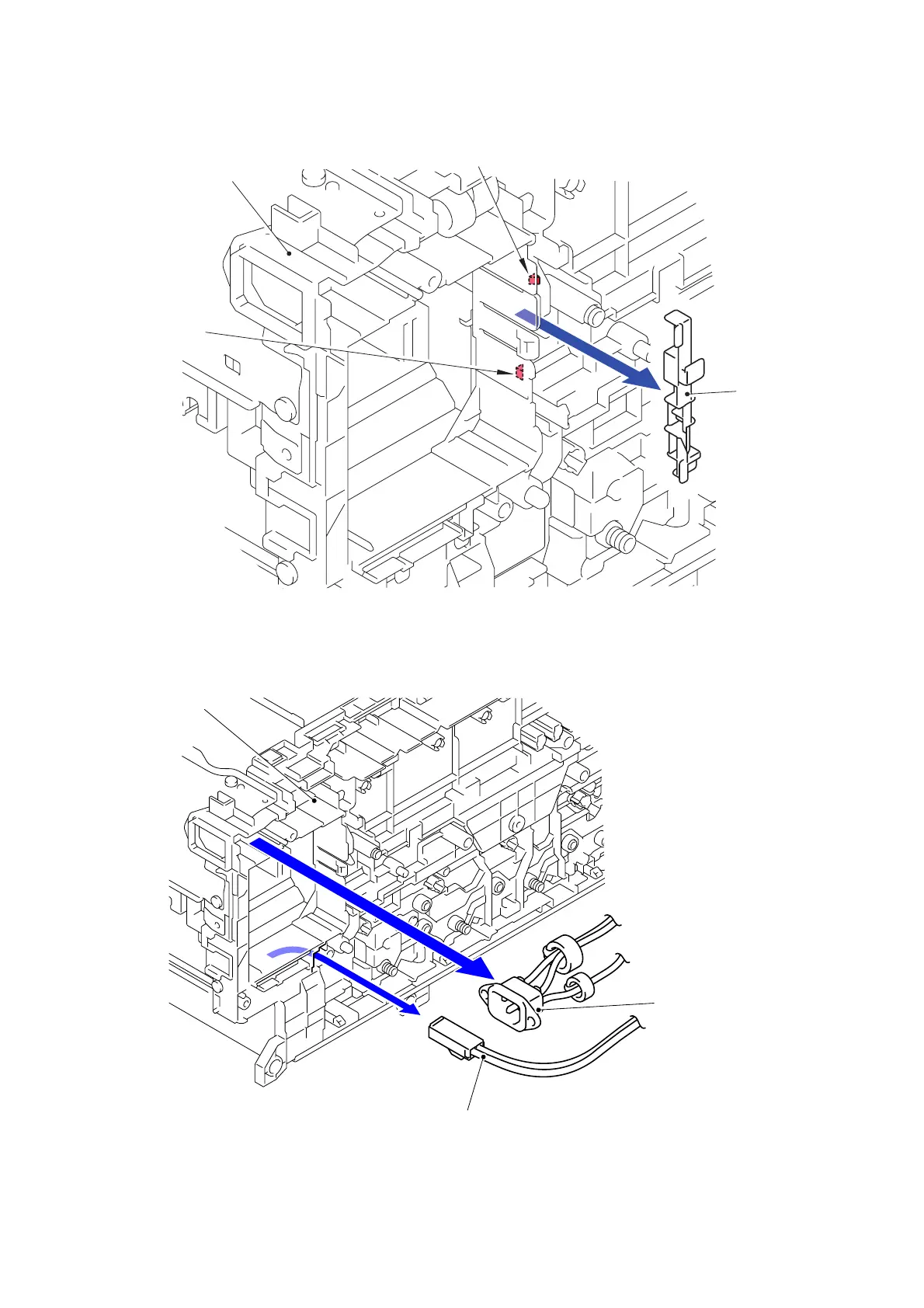

(3) Release the two Hooks to remove the Wire cap from the Side frame R.
Fig. 3-230
(4) Pull out the Heater harness and Inlet harness ASSY from the Main body.
Fig. 3-231
Hook
Hook
Side frame R
Wire cap
Inlet harness ASSY
Heater harness
Main body
