Brother MFC-9340CDW - Lift Gear 46;Gear Z23 M10 Z14 M75;Gear Z19 M10

3-28
Confidential

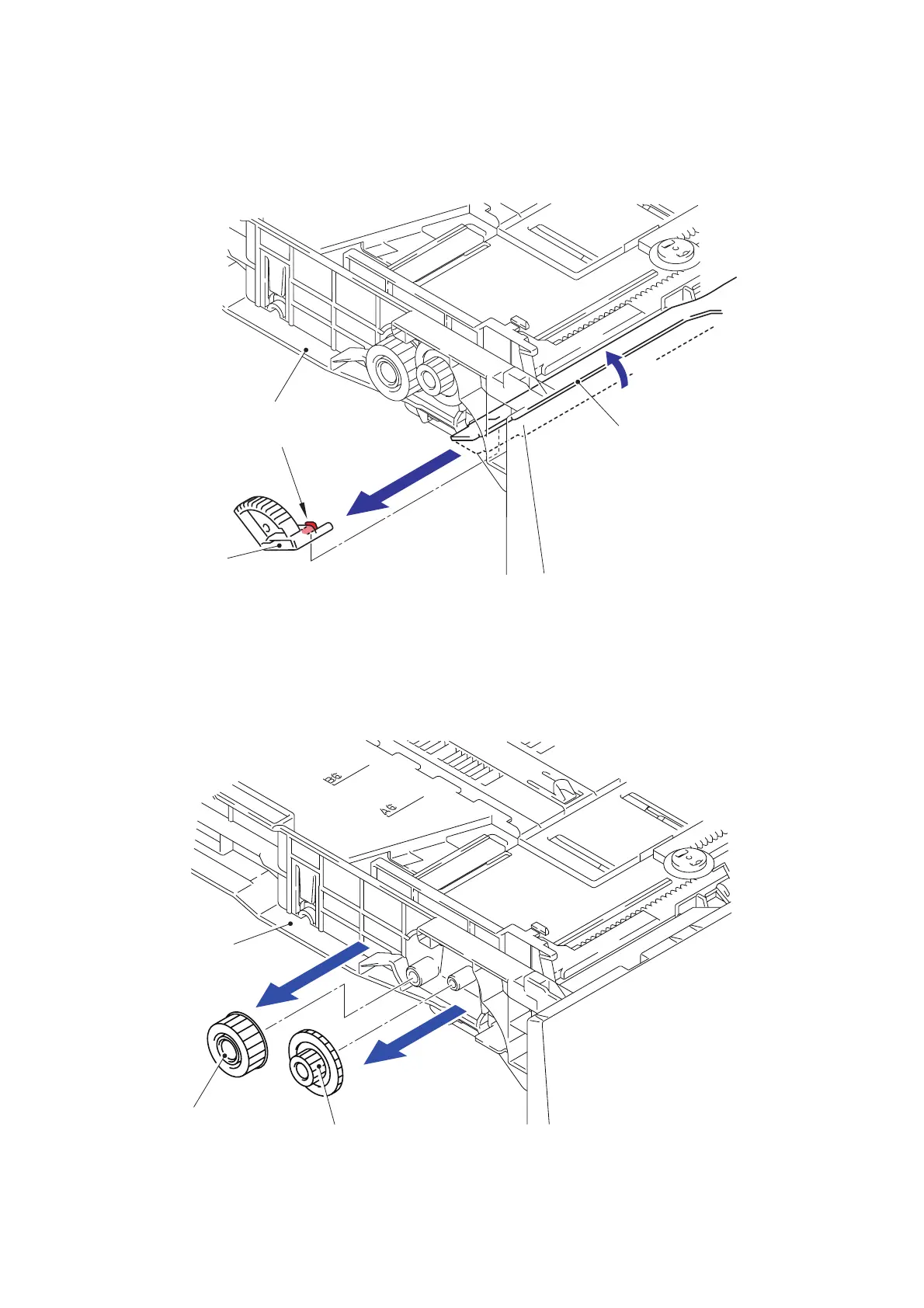

8.1 Lift Gear 46/Gear Z23M10Z14M75/Gear Z19M10
(1) Lift the Plate up plate. Release the Hook to remove the Lift gear 46 from the Plate up plate.
Fig. 3-1
(2) Remove the Gear Z23M10Z14M75 from the Paper tray.
(3) Remove the Gear Z19M10 from the Paper tray.
Fig. 3-2
Hook
Lift gear 46
Paper tray
Plate up plate
1a
1b
Paper tray
Gear Z19M10
Gear Z23M10Z14M75
2
3
