Brother MFC-9340CDW - Control Panel Assy

3-23
Confidential
Harness colors may be changed for any reason.

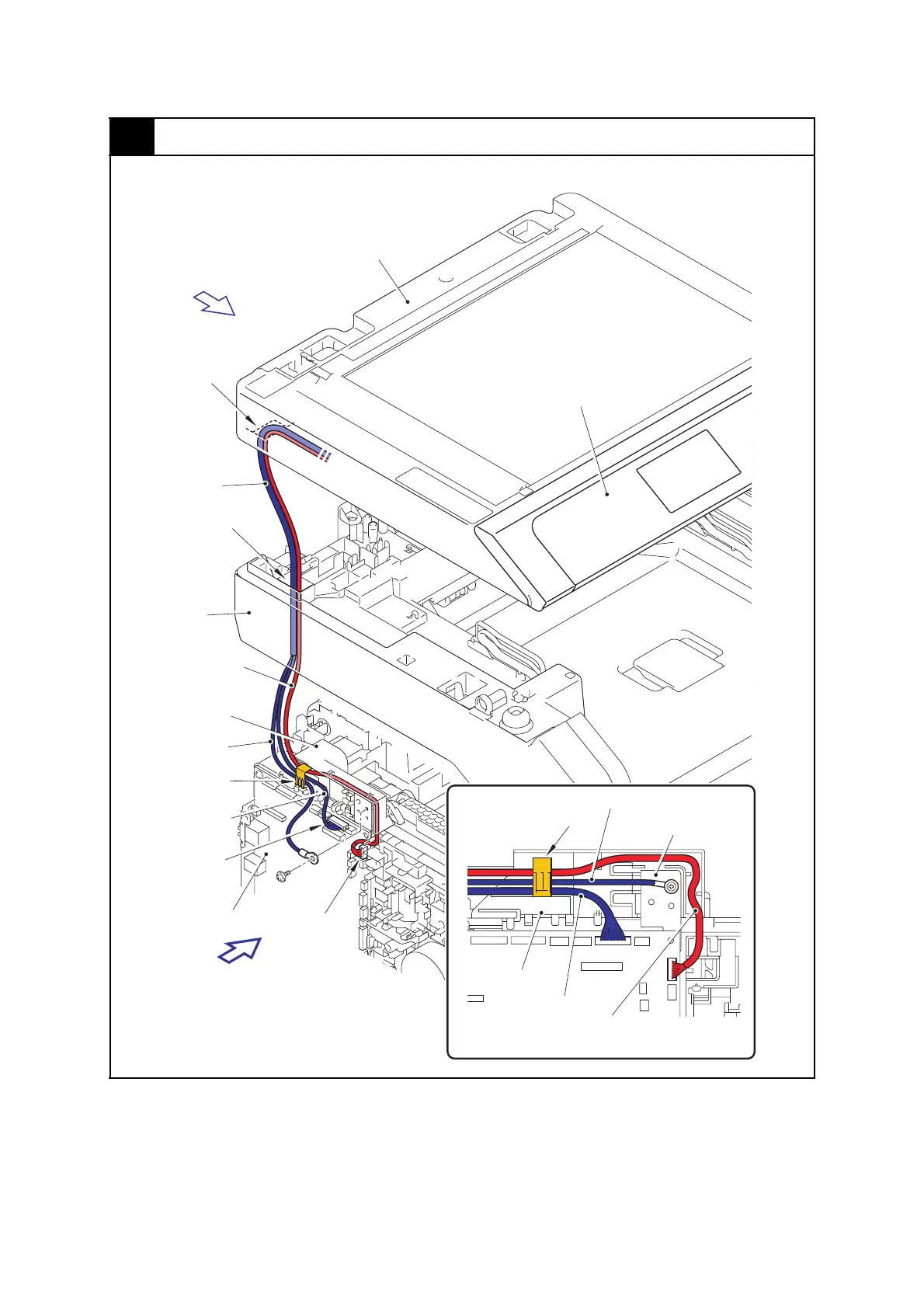

14 Control Panel ASSY
Hole
Hook
Main PCB ASSY
CN8
CN23
Hook
<A view>
A view
Joint cover
Main shield plate
Document scanner unit
Hole
Control panel ASSY
FFC guide
ASSY
Panel harness (WH)
Panel USB harness
(RD, WH, BK, GR)
Panel FG harness
Panel harness
Panel USB harness
(RD, WH, BK, GR)
Panel FG
harness
Panel harness
(WH)
Front
Flat cable guide
