8.47 Back Cover Lower

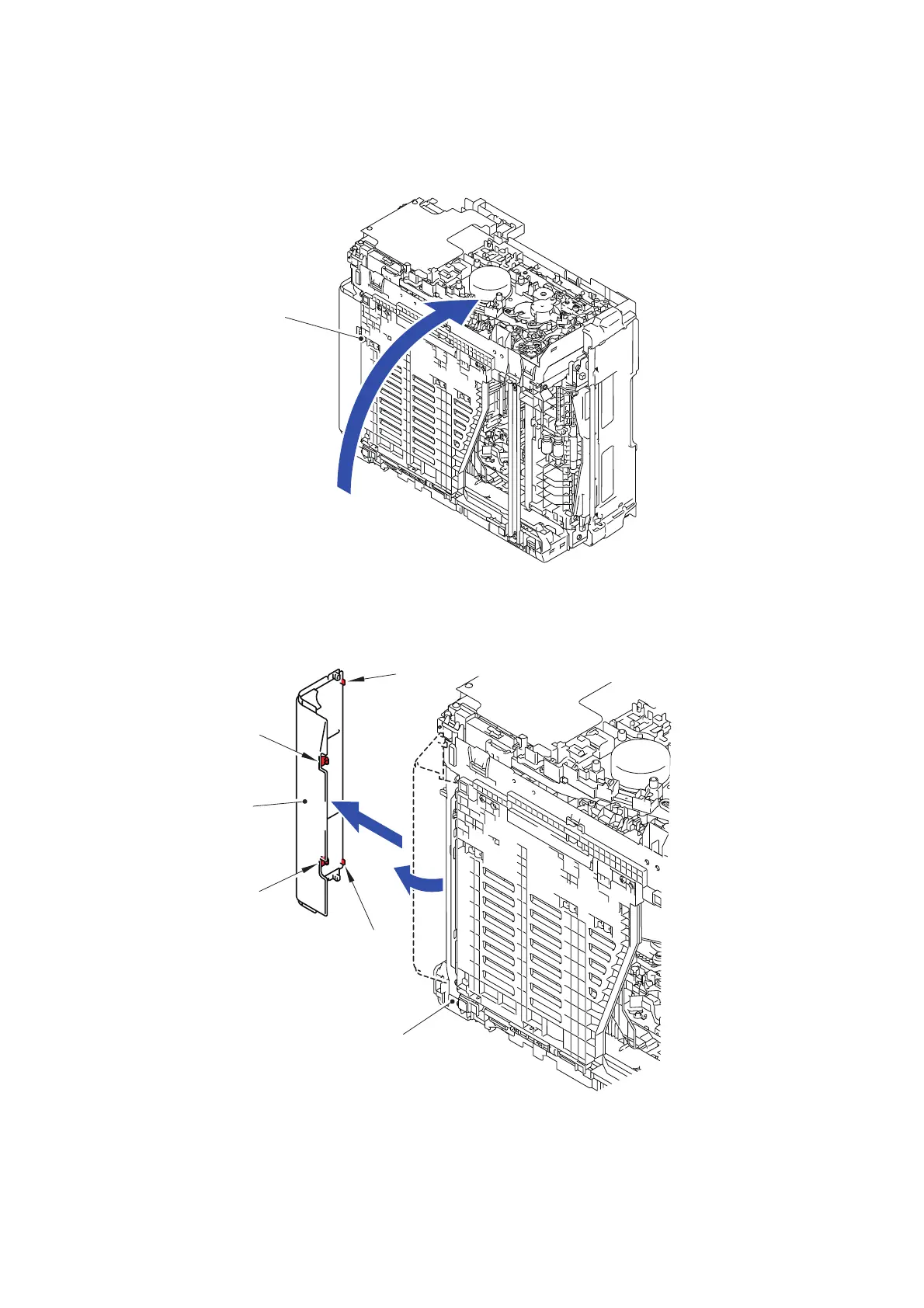

(1) Place the Main body upright as shown in the figure below.
Fig. 3-164
(2) Release the four Hooks to remove the Back cover lower from the Main body.
Fig. 3-165
Main body
<Front side>
Hook
Hook
Hook
Hook
Back cover lower
Main body
<Back side>
2a
2b
