Brother MFC-9340CDW Service Manual

5-2
Confidential
1.2 How to Enter the End User-accessible Maintenance Mode
Basically, the maintenance-mode functions listed in the next page should be accessed by
service personnel only. However, you can allow end users to access some of these under the
guidance of service personnel by phone, for example. The end user-accessible functions are
shaded in the table given on the next page. (codes 06, 09, 10, 11, 12, 25, 41, 43, 45, 52, 53,
54, 61, 66, 68, 71, 72, 77, 80, 82, 87, 88 and 91)
<Operating procedure>
(1) Hold down the Home key for about 5 seconds while the machine is in the ready state.

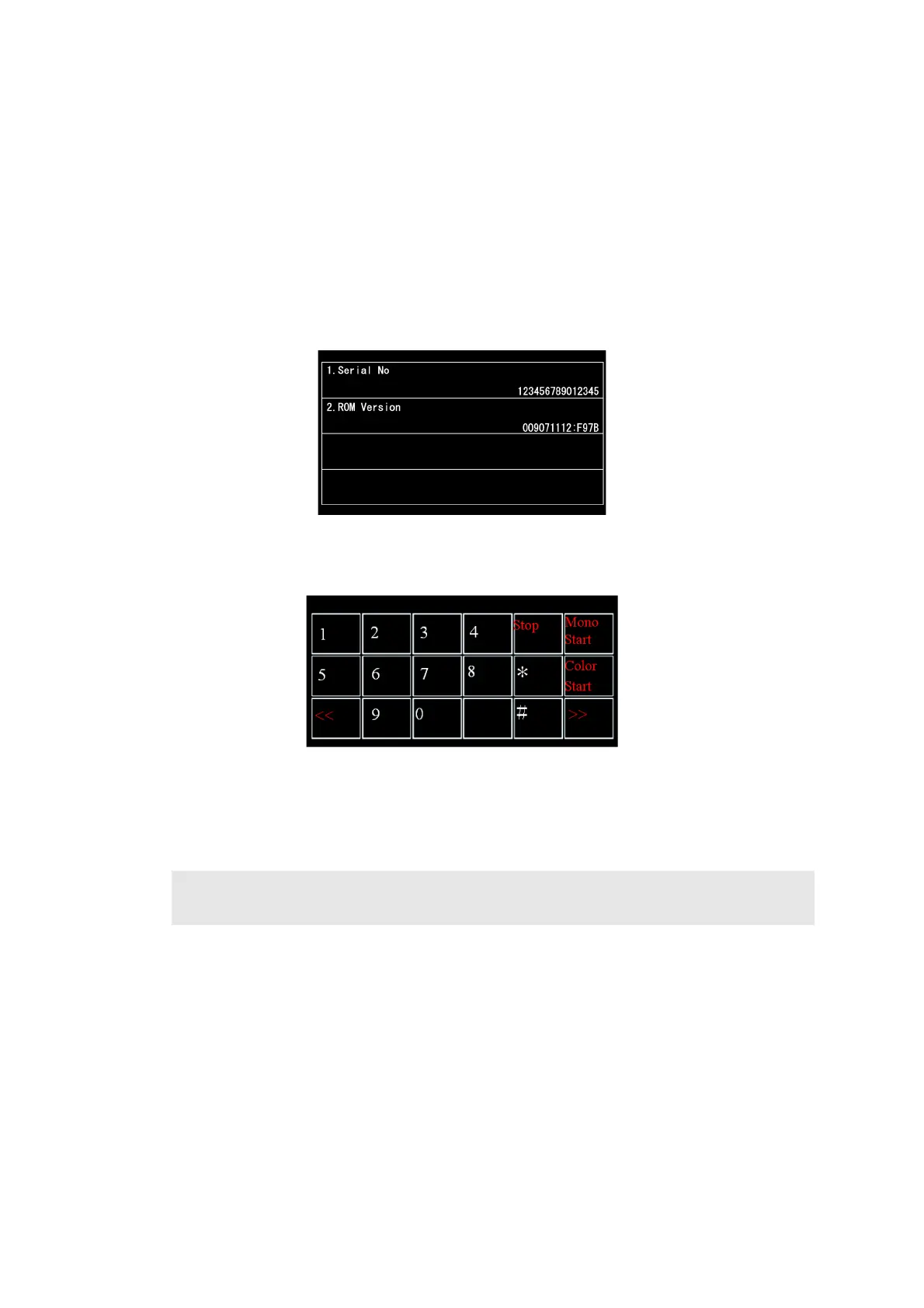

The following screen is displayed on the LCD.
(2) Hold down the blank space at the bottom of the LCD for about 2 seconds. The following
screen is displayed on the LCD.
(3) Press the *, 0, and # keys on the LCD in this order. The machine gets ready for the input
of a function code. Enter the function code you want to use.
(4) When each of the maintenance mode functions is completed, the machine automatically
returns to the ready state.
Note:
To cancel an operation and return the machine to the ready state, press the Stop key.

Brother MFC-9340CDW Specifications

Printing Specifications

print speed (black)	up to 23 ppm
print speed (color)	up to 23 ppm
print resolution	up to 600 x 2400 dpi
automatic duplex printing	Yes

Copying Specifications

copy speed (black)	up to 23 cpm
copy speed (color)	up to 23 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution (optical)	1200 x 2400 dpi
scan resolution (interpolated)	19200 x 19200 dpi

Fax Specifications

fax modem	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Memory and Interfaces

memory (standard/max)	192MB / 192MB
standard interfaces	Wireless 802.11b/g/n, Ethernet, Hi-Speed USB 2.0
usb direct interface	Yes

Supplies and Accessories

black toner cartridge yield	2, 500 pages
cyan toner cartridge yield (standard)	1, 400 pages
magenta toner cartridge yield (standard)	1, 400 pages
yellow toner cartridge yield (standard)	1, 400 pages
cyan toner cartridge yield (high capacity)	2, 200 pages
magenta toner cartridge yield (high capacity)	2, 200 pages
yellow toner cartridge yield (high capacity)	2, 200 pages
drum unit yield	15, 000 pages
belt unit yield	50, 000 pages
waste toner box yield	50, 000 pages
multi-purpose paper	Letter, 500 sheets
