3-13
Confidential
Harness colors may be changed for any reason.

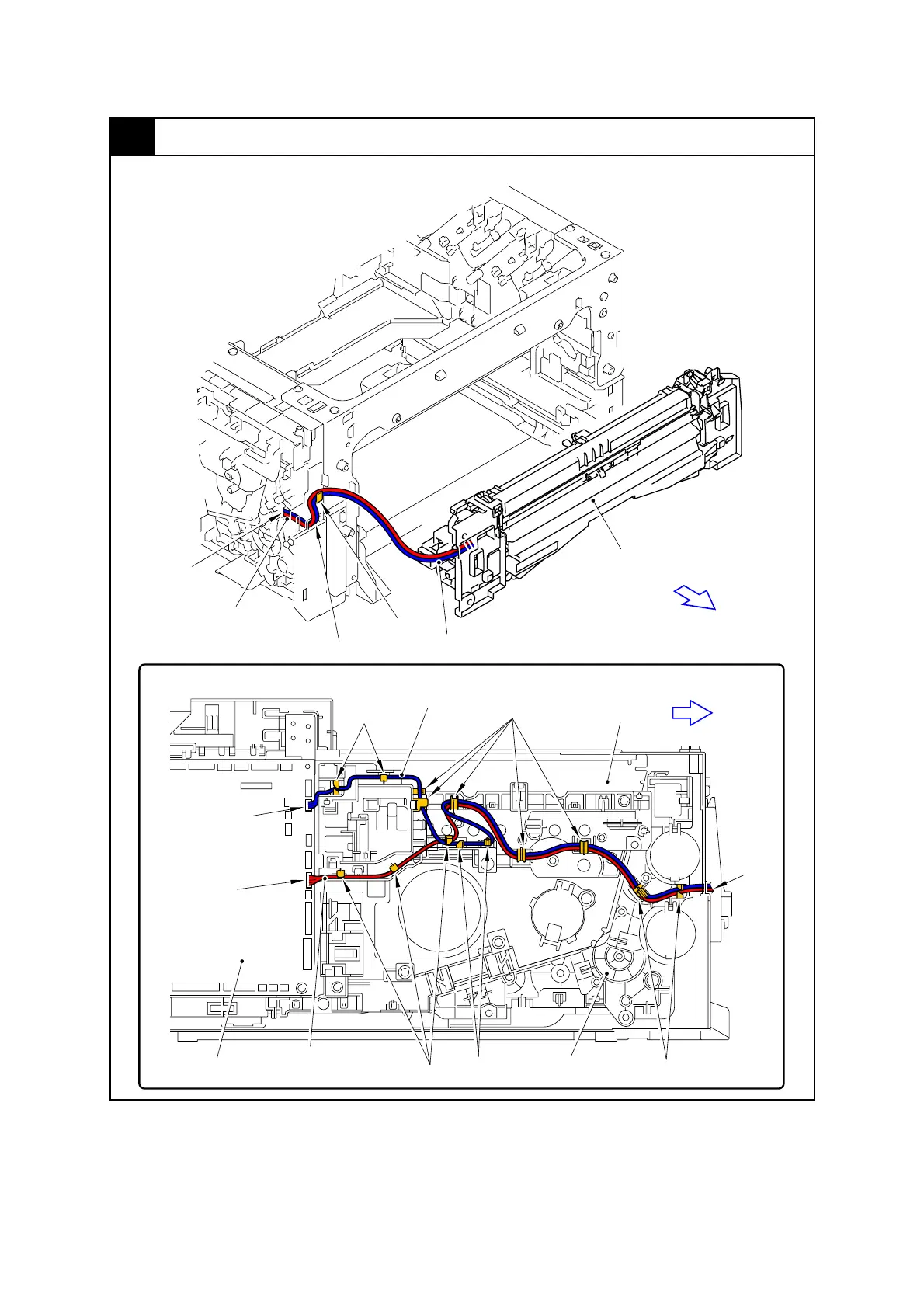

4 Paper Feed Unit
Hook
Hole
Paper feed unit
“A”
Hook
Hook
Hook
Hook
Main PCB ASSY
CN20
CN13
Process drive unit
Main drive unit
“A”
Front
Front
Hook
Edge sensor harness (RD, BL, WH)
Edge sensor harness
(RD, BL, WH)
Registration front/rear/manual
feed sensor harness
(RD, BL, WH, YL, BK)
Registration front/rear/manual
feed sensor harness
(RD, BL, WH, YL, BK)
