3-69
Confidential

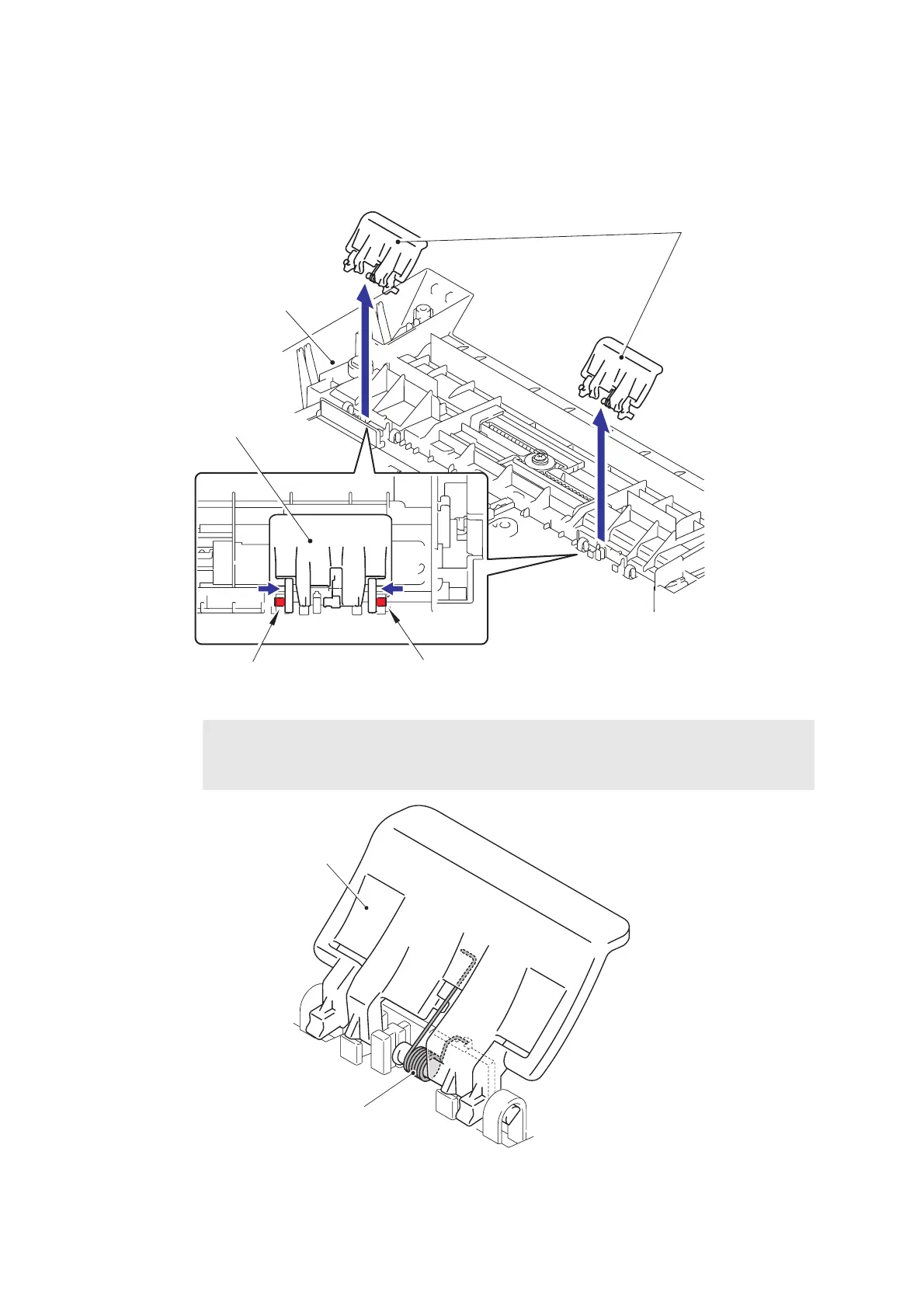

(6) Turn the Upper ADF chute upside down.
(7) Remove the two Pins to remove the Paper stack lever from the left side of the Upper ADF
chute.
(8) Remove the other Paper stack lever in the same way.
Fig. 3-76
Fig. 3-77
Assembling Note:
When assembling the Paper stack lever, be sure to assemble the Paper stack lever
spring as shown in the figure below.
Paper stack lever
Paper stack lever
Upper ADF chute
7a
8a
7a
8a
7b
8b
Pin
Pin
Paper stack lever
Paper stack lever spring
