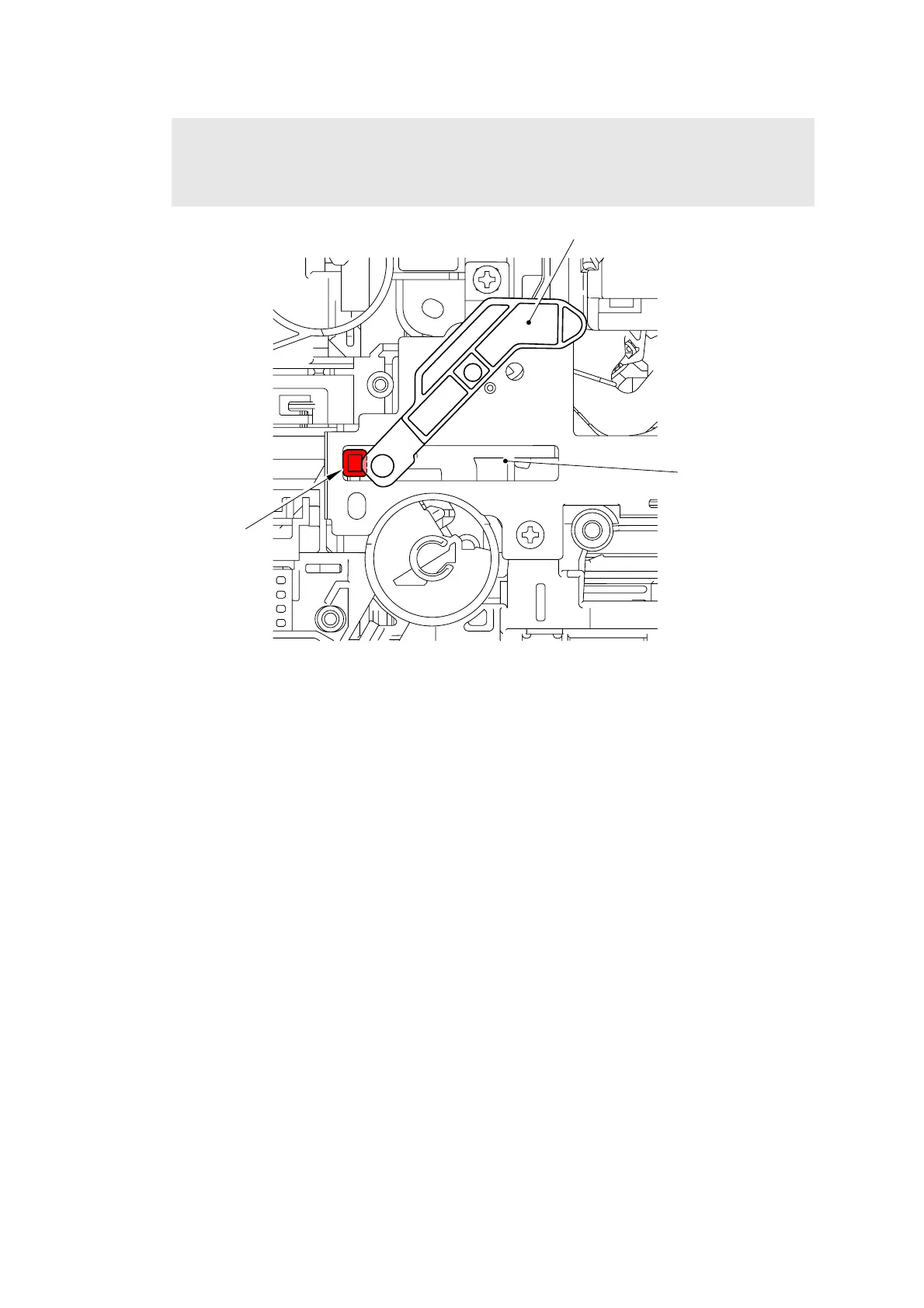

Fig. 3-177
Assembling Note:
When assembling the Develop release link, be sure to assemble that the positional
relationship between "A" of the Develop release cam and Develop release link is as shown
in the figure.
“A”
Develop release link
Develop release cam
<Front side><Back side>
