Brother MFC-9340CDW - Page 197

3-34
Confidential

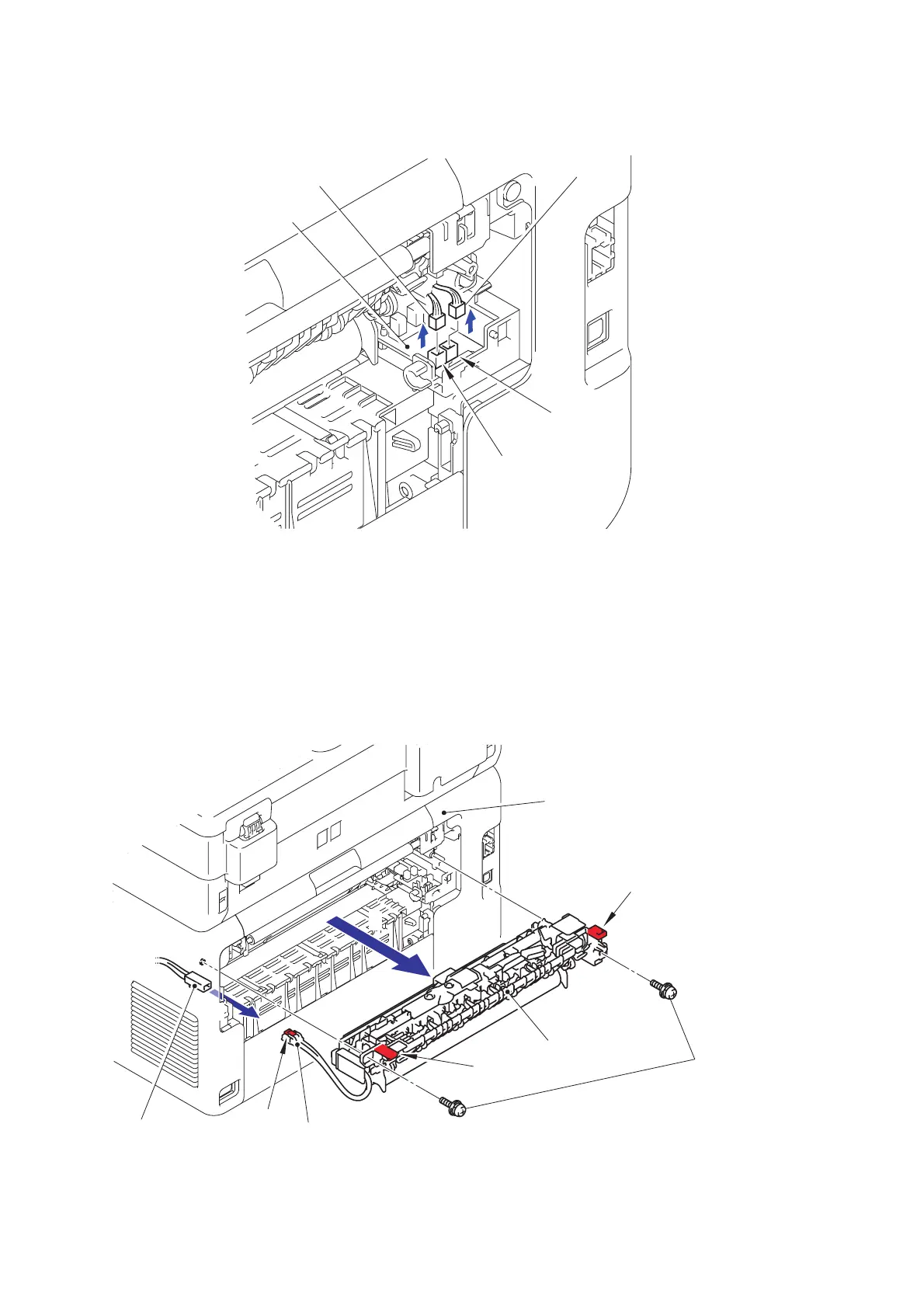

(4) Disconnect the two Connectors (CN4 and CN5) from the Eject sensor PCB ASSY.
Fig. 3-11
(5) Remove the two Taptite pan (washer) B M4x12 DA screws. Remove the Fuser unit from
the Main body holding the "A" parts.
(6) Disconnect the Electrode terminal of the Fuser unit from the Electrode terminal of the
Main body.
Fig. 3-12
CN4
CN5
Eject sensor PCB ASSY
Connector
Connector
<Back side>
Taptite pan (washer)
B M4x12 DA
Main body
Fuser unit
<Back side>
Electrode terminal
Electrode terminal
Hook
5
6
“A”
“A”
