3-65
Confidential

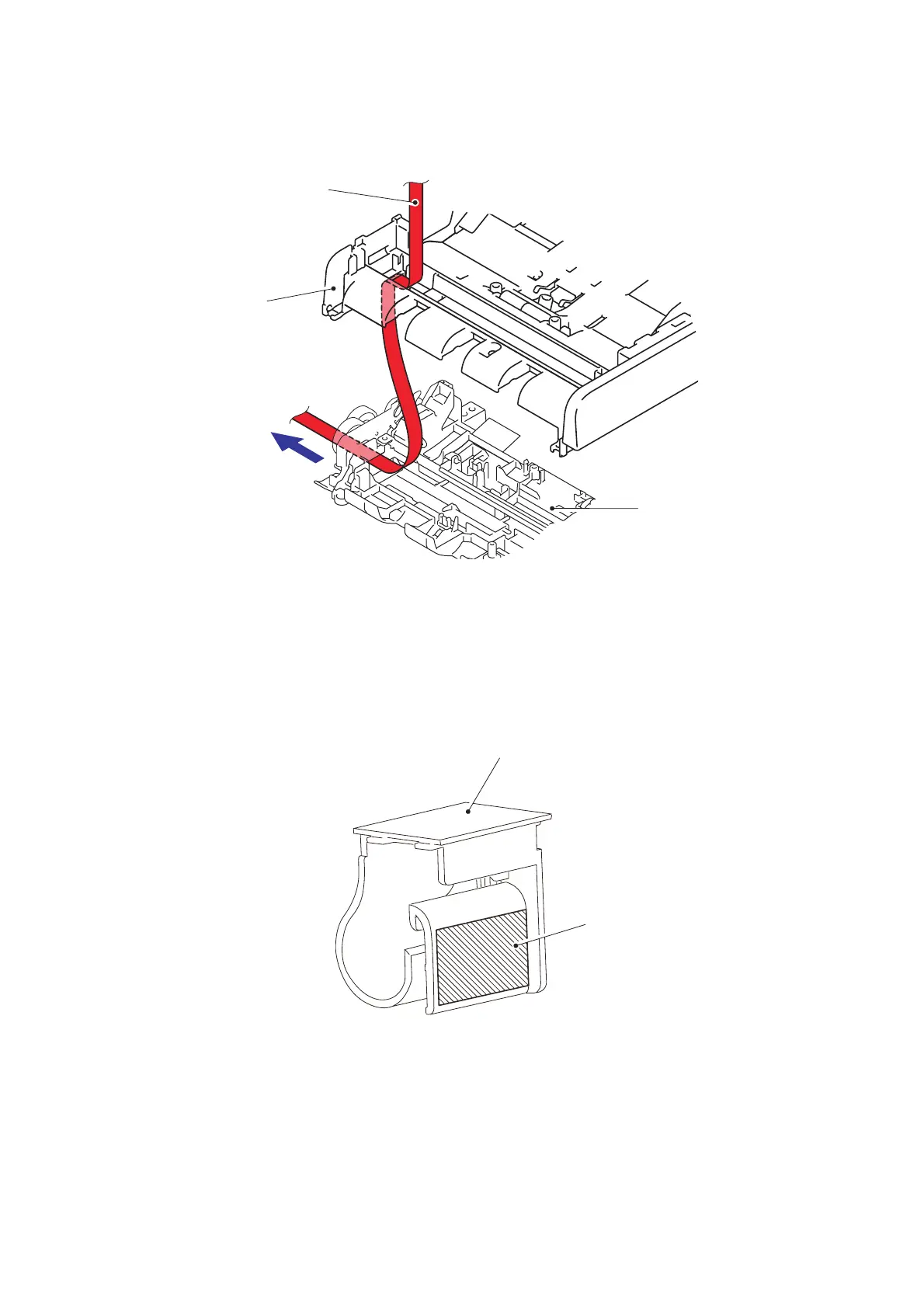

(3) Pass the Second side CIS flat cable through the ADF unit.
Fig. 3-68
(4) Affix Double-sided adhesive tape to the Flat cable holder ASSY as shown in the figure
below. (If the Double-sided adhesive tape has already been affixed, be sure to remove it,
and then affix new Double-sided adhesive tape.)
Fig. 3-69
Upper ADF chute
ADF unit
Second side CIS flat cable
Double-sided adhesive tape
Flat cable holder ASSY
To Next Page
