3-91
Confidential

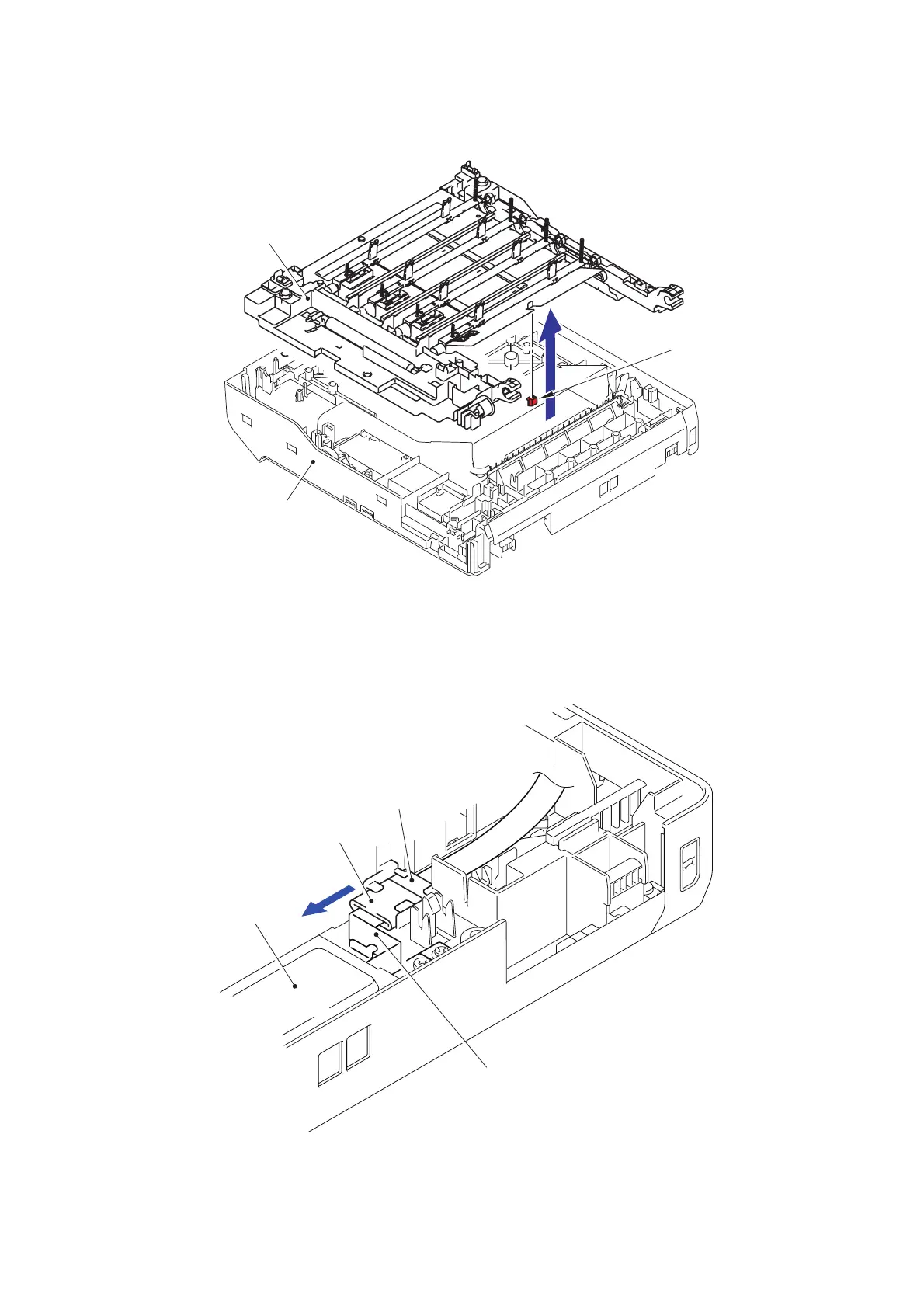

(5) Release the Hook to remove the Sub frame ASSY from the Joint cover ASSY.
Fig. 3-117
(6) Disconnect the wiring of the FG harness from the Joint cover ASSY.
(7) Remove the two Flat cores of the Modem flat cable from the Joint cover ASSY.
Fig. 3-118
Joint cover ASSY
Hook
Sub frame ASSY
Modem flat cable
Flat core (small)
Flat core (large)
Joint cover ASSY
