Brother MFC-9340CDW - Page 257

3-94
Confidential

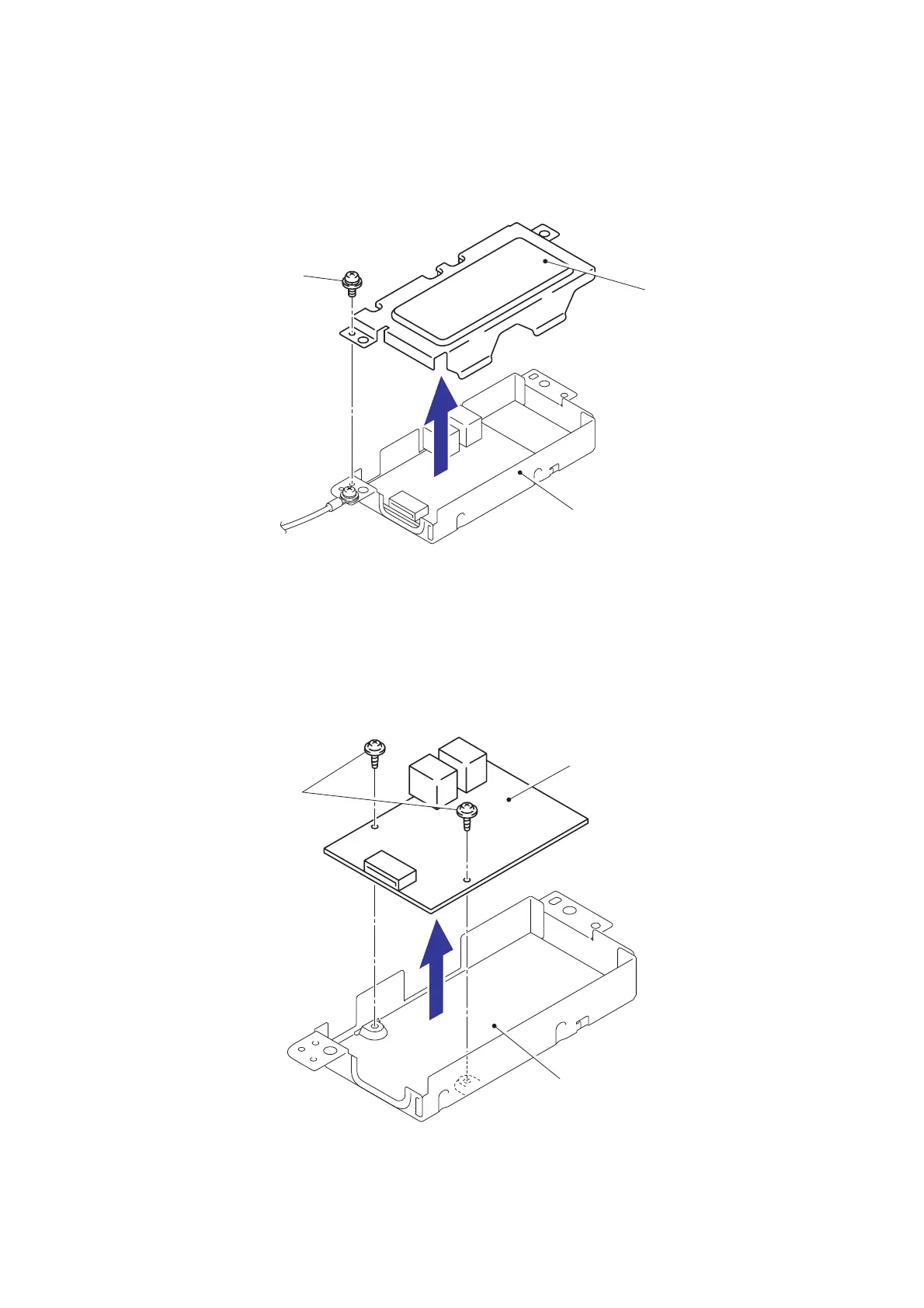

(4) Remove the Screw pan (S/P washer) M3.5x6 screw to remove the Modem shield cover
from the Modem shield plate.
Fig. 3-122
(5) Remove the two Taptite cup S M3x6 SR screws to remove the Modem PCB ASSY from
the Modem shield plate.
Fig. 3-123
Modem shield plate
Screw pan (S/P washer) M3.5x6
Modem shield cover
Modem shield plate
Modem PCB ASSY
Taptite cup S M3x6 SR
