3-114
Confidential

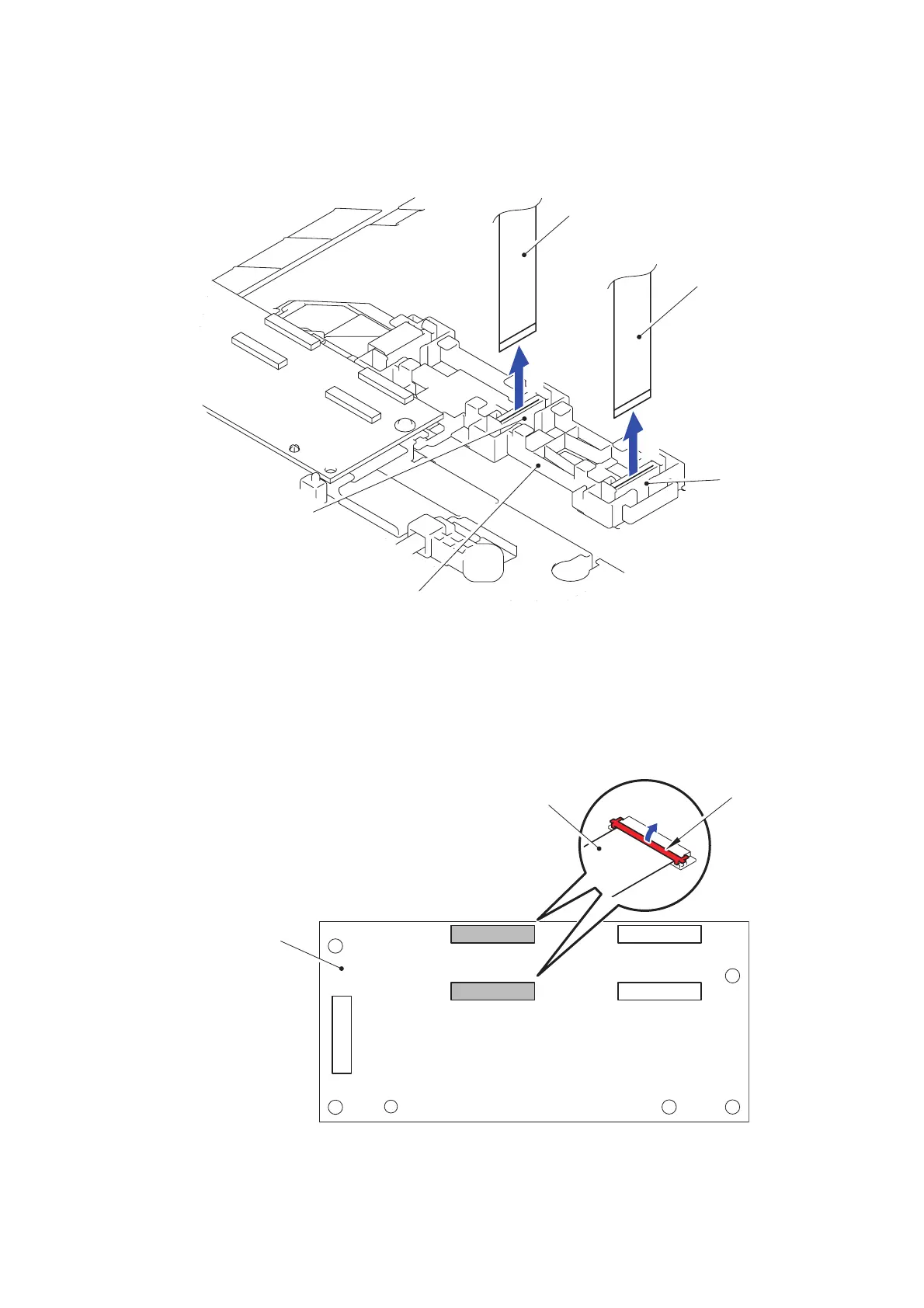

(3) Pull out the LED flat cable (Y) from the Flat core of the LED flat cable holder.
(4) Pull out the LED flat cable (M) from the Flat core of the LED flat cable holder.
Fig. 3-158
(5) Release the Lock of the LED flat cable connector (CN3). Disconnect the LED flat cable
(C) from the LED control PCB ASSY.
Release the Lock of the LED flat cable connector (CN5). Disconnect the LED flat cable
(K) from the LED control PCB ASSY.
Fig. 3-159
LED flat cable (Y)
LED flat cable (M)
Flat core
Flat core
LED flat cable holder
3
4
CN5 (K)
CN3 (C)
CN1
CN4 (Y)
CN2 (M)
Lock
LED flat cable
LED control PCB ASSY
