3-136
Confidential

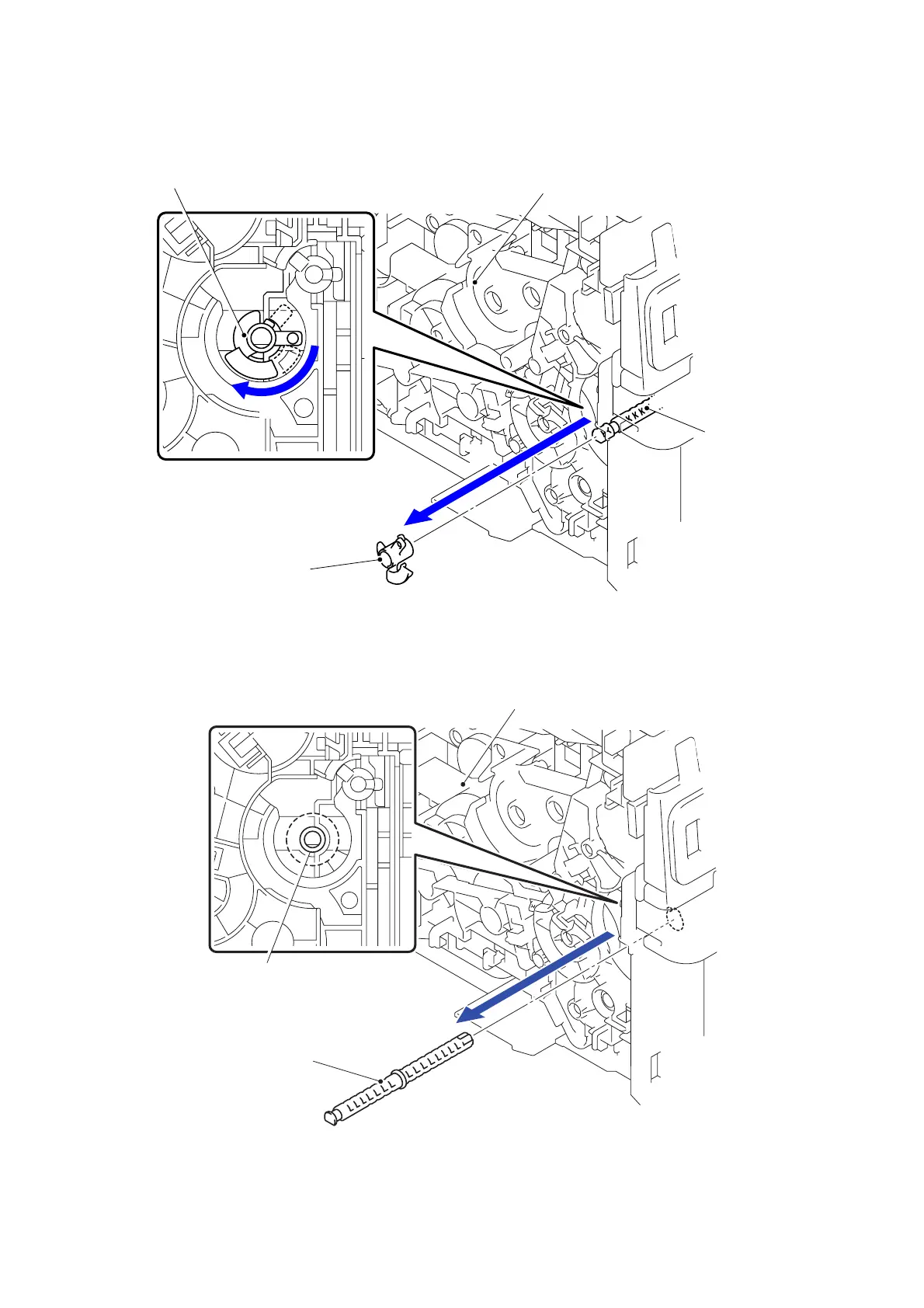

(3) Rotate the T1 bushing in the direction of the arrow 3a to remove it from the Separation
roller drive joint.
Fig. 3-191
(4) Remove the Separation roller drive joint from the Side frame L ASSY.
Fig. 3-192
T1 bushing
Side frame L ASSY
<Left side>
3b
3a
Separation roller
T1 bushing
drive joint
Side frame L ASSY
Separation roller drive joint
<Left side>
Separation roller drive joint
