Brother MFC-9340CDW Service Manual

3-138
Confidential

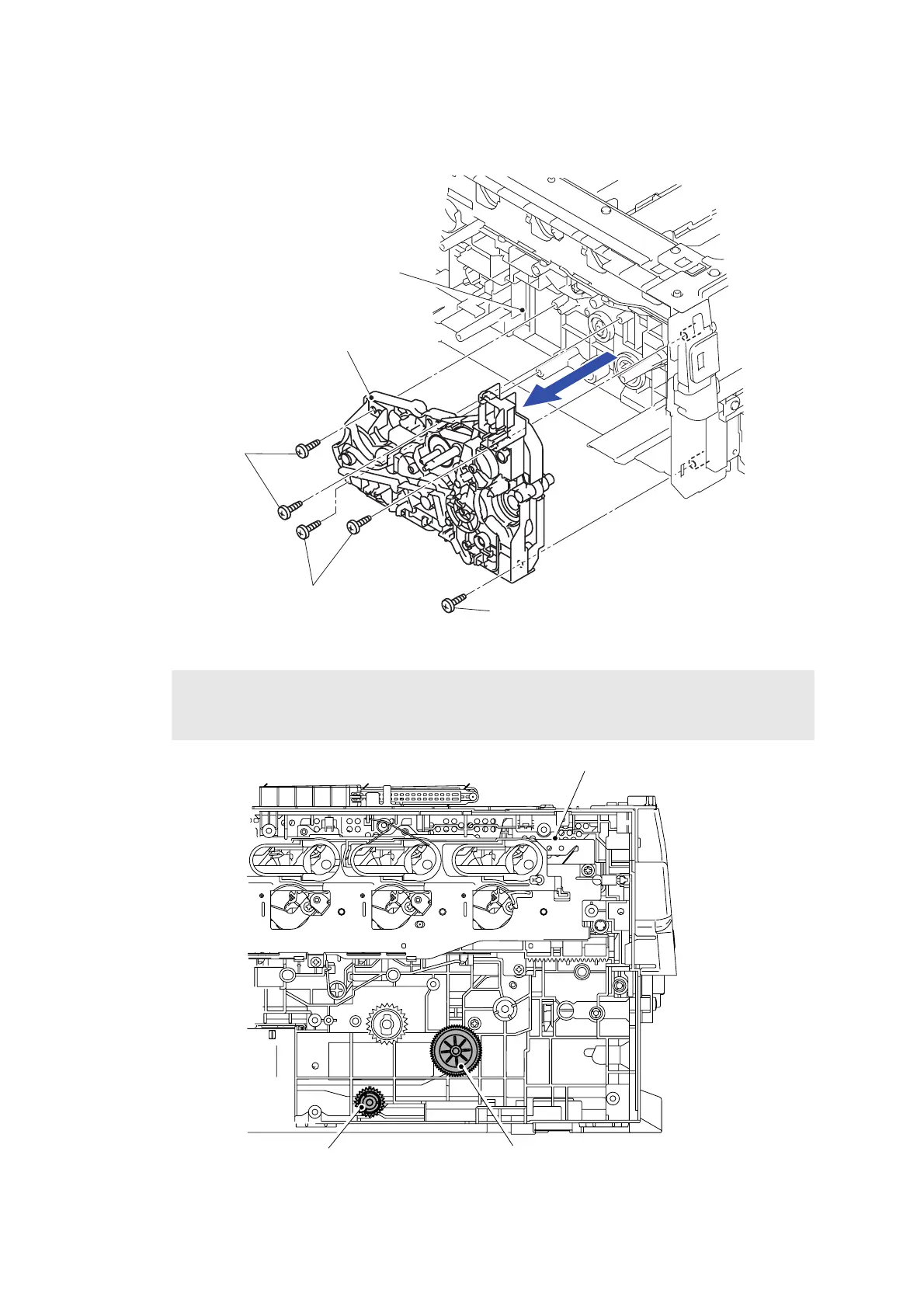

(7) Remove the five Taptite bind B M4x12 screws to remove the Main drive unit from the Side
frame L ASSY.
Fig. 3-195
Fig. 3-196
Note:
As the two gears (DX gear Z21 and PP gear Z14-51) shown in the figure tend to come off.
Be careful not to lose them.
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Main drive unit
Side frame L ASSY
<Left side>
Side frame L ASSY
DX gear Z21
PP gear Z14-51
<Back side> <Front side>

Brother MFC-9340CDW Specifications

Printing Specifications

print speed (black)	up to 23 ppm
print speed (color)	up to 23 ppm
print resolution	up to 600 x 2400 dpi
automatic duplex printing	Yes

Copying Specifications

copy speed (black)	up to 23 cpm
copy speed (color)	up to 23 cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11.7”
scan resolution (optical)	1200 x 2400 dpi
scan resolution (interpolated)	19200 x 19200 dpi

Fax Specifications

fax modem	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Memory and Interfaces

memory (standard/max)	192MB / 192MB
standard interfaces	Wireless 802.11b/g/n, Ethernet, Hi-Speed USB 2.0
usb direct interface	Yes

Supplies and Accessories

black toner cartridge yield	2, 500 pages
cyan toner cartridge yield (standard)	1, 400 pages
magenta toner cartridge yield (standard)	1, 400 pages
yellow toner cartridge yield (standard)	1, 400 pages
cyan toner cartridge yield (high capacity)	2, 200 pages
magenta toner cartridge yield (high capacity)	2, 200 pages
yellow toner cartridge yield (high capacity)	2, 200 pages
drum unit yield	15, 000 pages
belt unit yield	50, 000 pages
waste toner box yield	50, 000 pages
multi-purpose paper	Letter, 500 sheets
