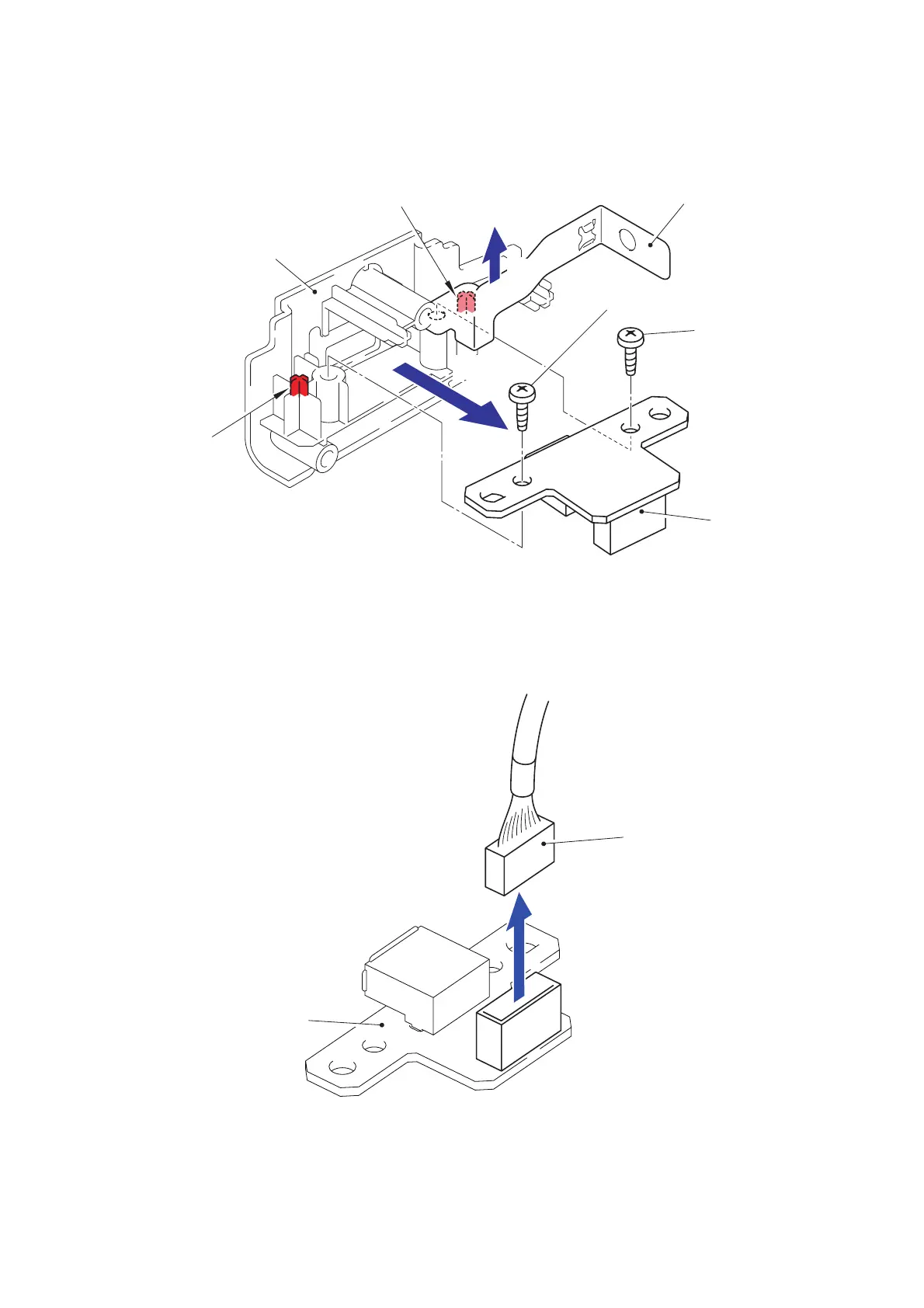

(3) Remove the two Taptite cup B 3x10 screws from the USB host PCB ASSY.
(4) Release the two Bosses to remove the USB host PCB ASSY from the USB cover ASSY.
Fig. 3-202
(5) Disconnect the Connector from the USB host PCB ASSY.
Fig. 3-203
4a
USB cover ASSY
USB host
PCB ASSY
Boss
Boss
Taptite cup B 3x10
Taptite cup B 3x10
4b
USB ground plate
USB host PCB ASSY
Connector
