(4) Check that the display on the LCD is changed when the detection condition of each
sensor is changed. For instance, insert paper through the registration front/rear sensor,
open the joint cover ASSY or the back cover, make a jam at the paper outlet, insert paper
from the manual feed slot, set paper tray, etc.
(5) Press the Stop key to return the machine to the initial state of the maintenance mode.

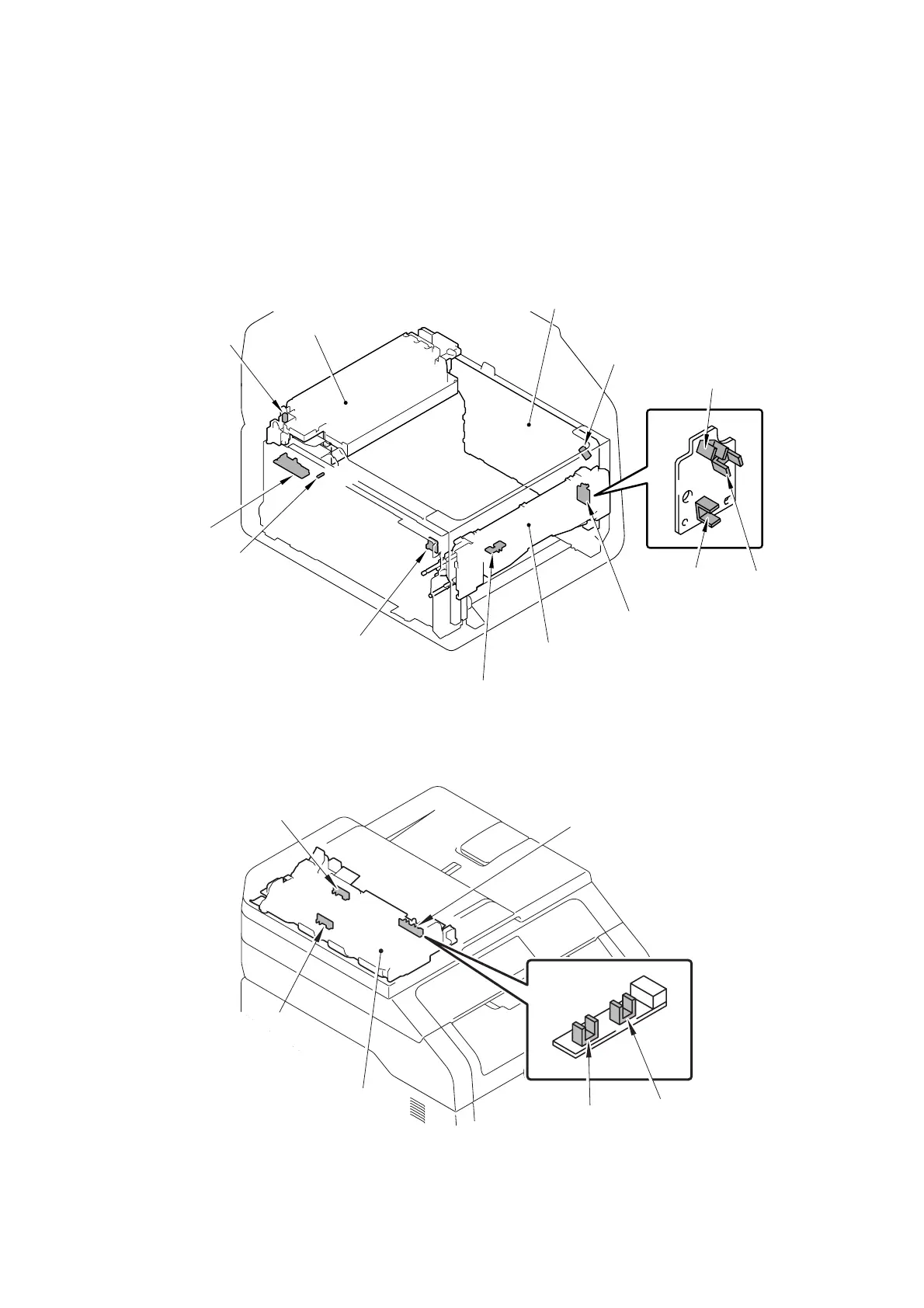

■ Location of sensors
Fig. 5-10
Fig. 5-11
Paper eject ASSY
Paper feed unit
Paper feed sensor
Top cover sensor
Back cover sensor
Eject sensor
Registration
Registration
Internal temperature sensor
External temperature sensor
External humidity sensor
front sensor
rear sensor
Manual feed paper empty sensor
Registration front/rear/
manual feed sensor PCB
High-voltage power
supply PCB ASSY
First side document scanning
Second side document scanning
ADF cover sensor/
document detection sensor
Lower ADF chute
Document
ADF cover sensor
detection sensor
position sensor
position sensor
