FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance

INSTALLATION

ORIGINAL INSTRUCTION 107

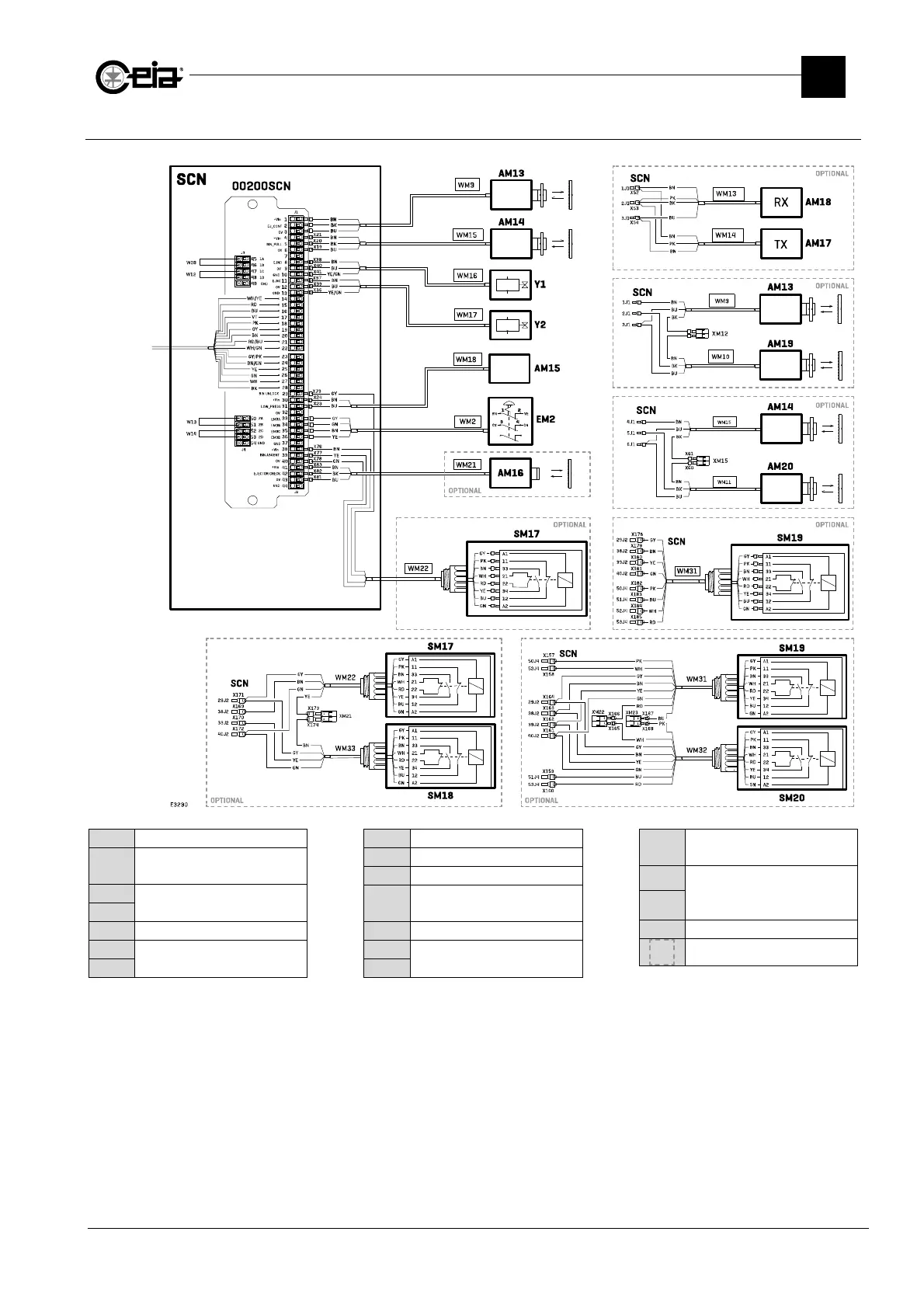

SCN SCN card Connections box

AM13

Ejection Confirmation

photocell

AM13

Ejection Confirmation

photocells

AM19

AM14 Bin Full photocell

AM14

Bin Full photocells

AM20

AM15 Pressure switch

AM16 Ejection check

Y1 Ejector activation

Ejector deactivation

(not used with air blow)

SM17 Bin lock

SM17 Double bin lock for two reject

bins

SM18

SM19

Bin lock connected to the

Emergency circuit

SM19

Double bin lock for two reject

bins, connected to the

Emergency circuit

SM20

EM2 Emergency Button
