3.4.3 Connecting up to the compressed air supply
If present, remove the protective casing, removing the screws, and connect the pneumatic pressure
source according to the ejector type.

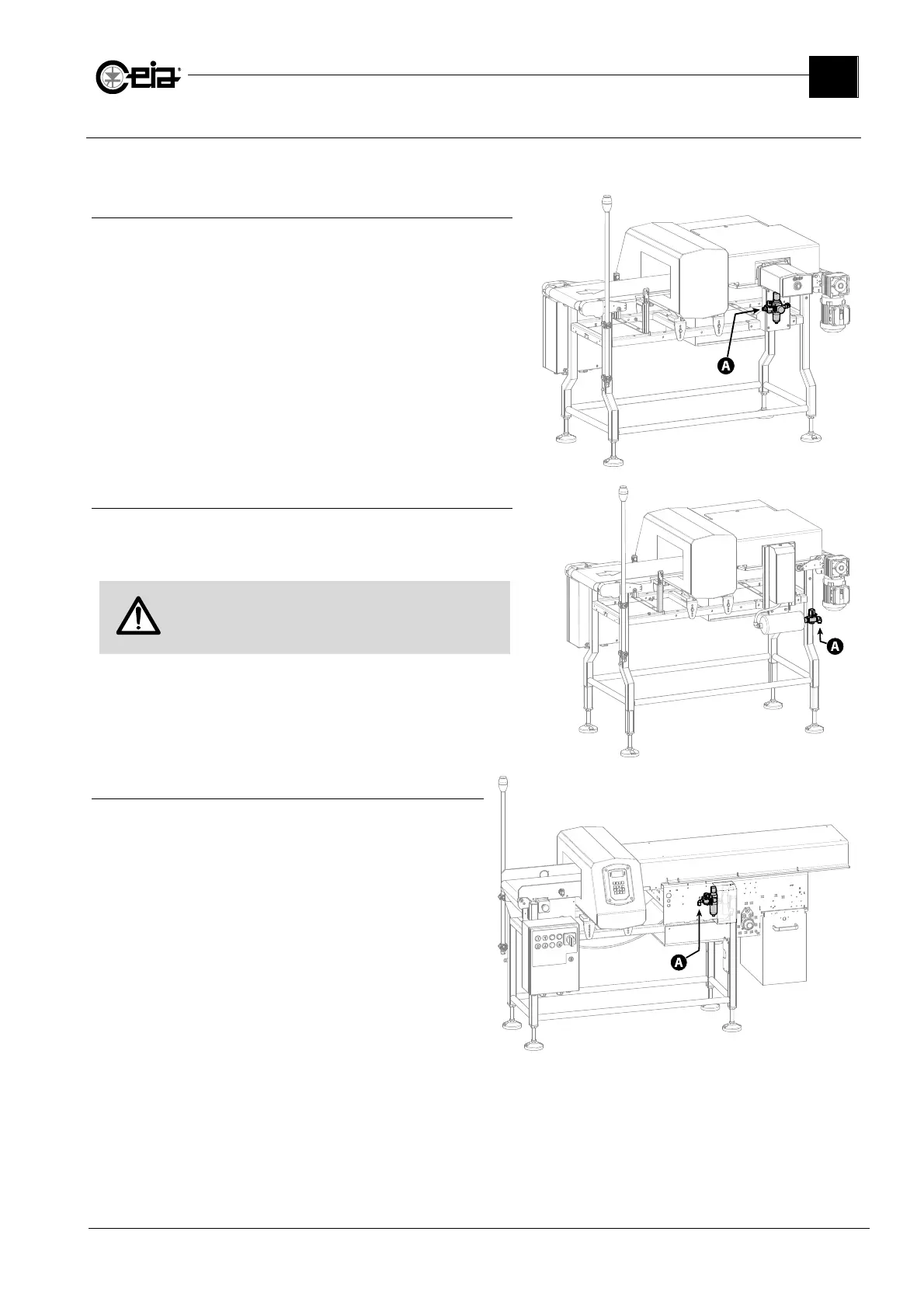

3.4.3.1 Ejector cylinder
Connect the unit to the compressed air supply
(A) with an 8 mm diameter hose and a quick-
release connector.
3.4.3.2 Air jet ejector
Connect the unit to the compressed air supply
(A) with a 10 mm diameter hose and a quick-
release connector.
The pneumatic pressure source must be filtered with an
oil-free 5

m filter, to prevent any contamination of the
product in transit and to ensure the ejection device
functions correctly.
3.4.3.3 Retracting belt
Connect the unit to the compressed air
supply (A) with an 8 mm diameter hose and
a quick-release connector.
