Ceia THS/21 - Disassembly of the Conveyor Belt

5
FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance
MAINTENANCE
170 ORIGINAL INSTRUCTION
5.2.3 Disassembly of the Conveyor belt
Shown below is the belt disassembly procedure, necessary for its cleaning or replacement.
If the conveyor belt is fitted with an ejection system, perform the following steps, before continuing:

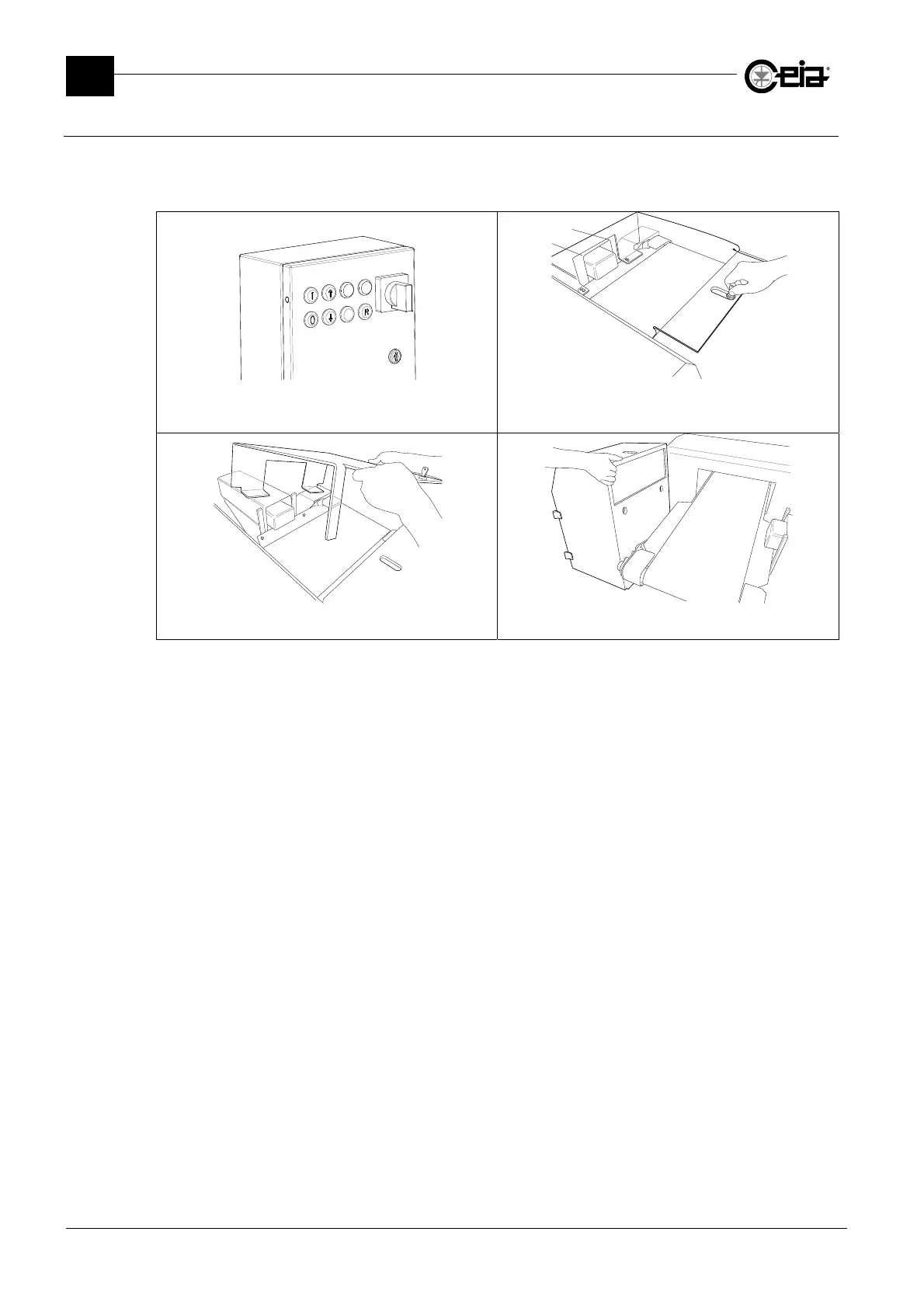

Remove all supply sources by means of the LOTO
devices and lock them in OFF position.
Unlock the transparent cover of the ejection area, using
its key.
Remove the transparent cover from the ejection area. Empty product from the bin, then lift it up and remove it
from its supports.
