2.3.2.3 THS-MBB (modular belt)

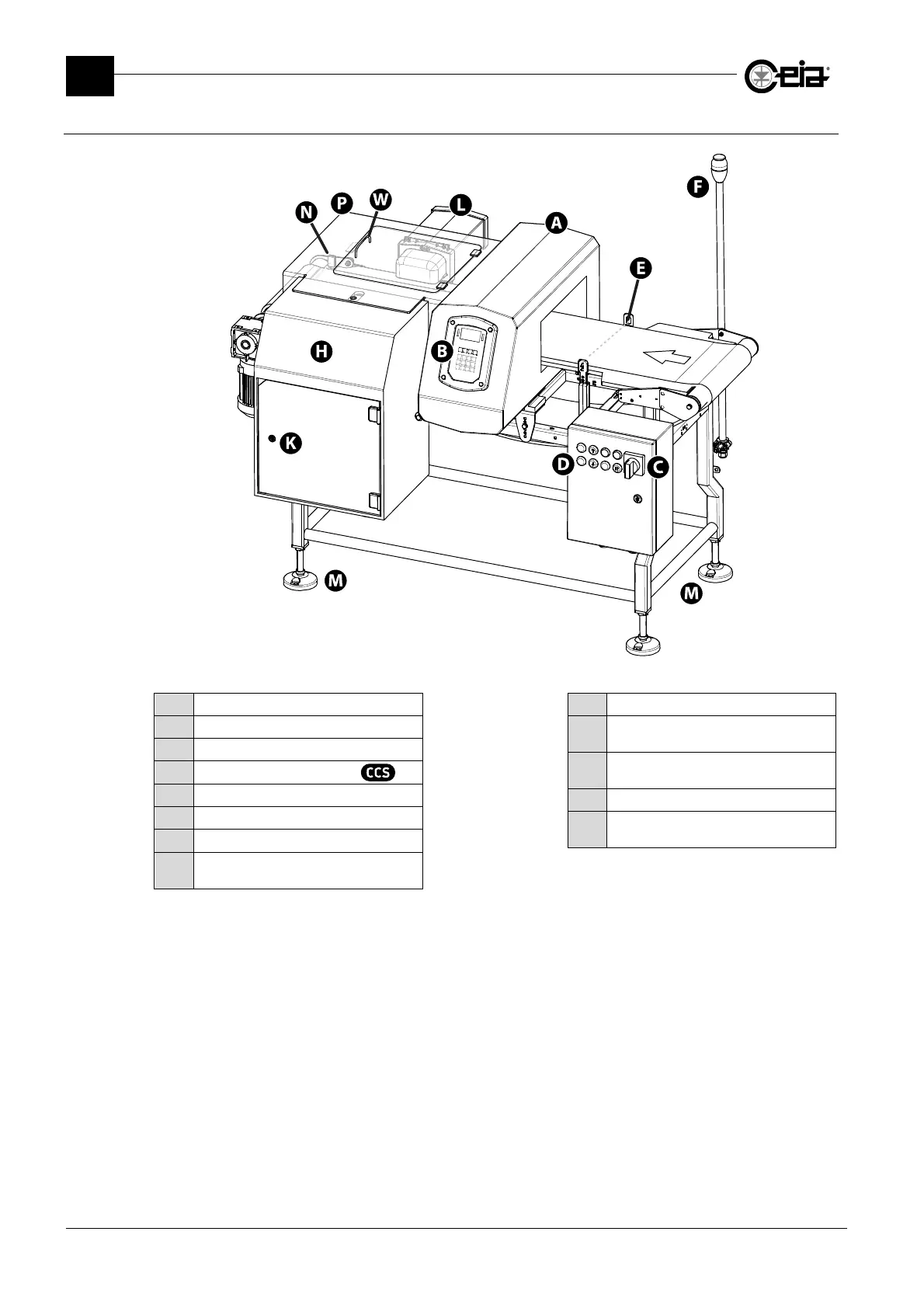

THS-MBB with ejection system
A Metal Detector Probe
B Programming and control panel
C Main switch
D
Conveyor belt control panel
E
Synchronization photocell
F
External beacon
H Reject bin
K
Rejected product bin lock (or, upon
request, solenoid lock)
L Ejection system
M
Support feet (to be fixed to the floor)
or lockable castors
N
Ejection Verification photocell
(optional)
P
Ejection area protection cover
W
Door with magnetic safety sensor
(optional)
