3.6 Electrical diagrams
Before consulting the electrical diagrams, check the applicable wire diagram numbers indicated by the FAT (Factory
Acceptance Test).
3.6.1 Functional diagrams

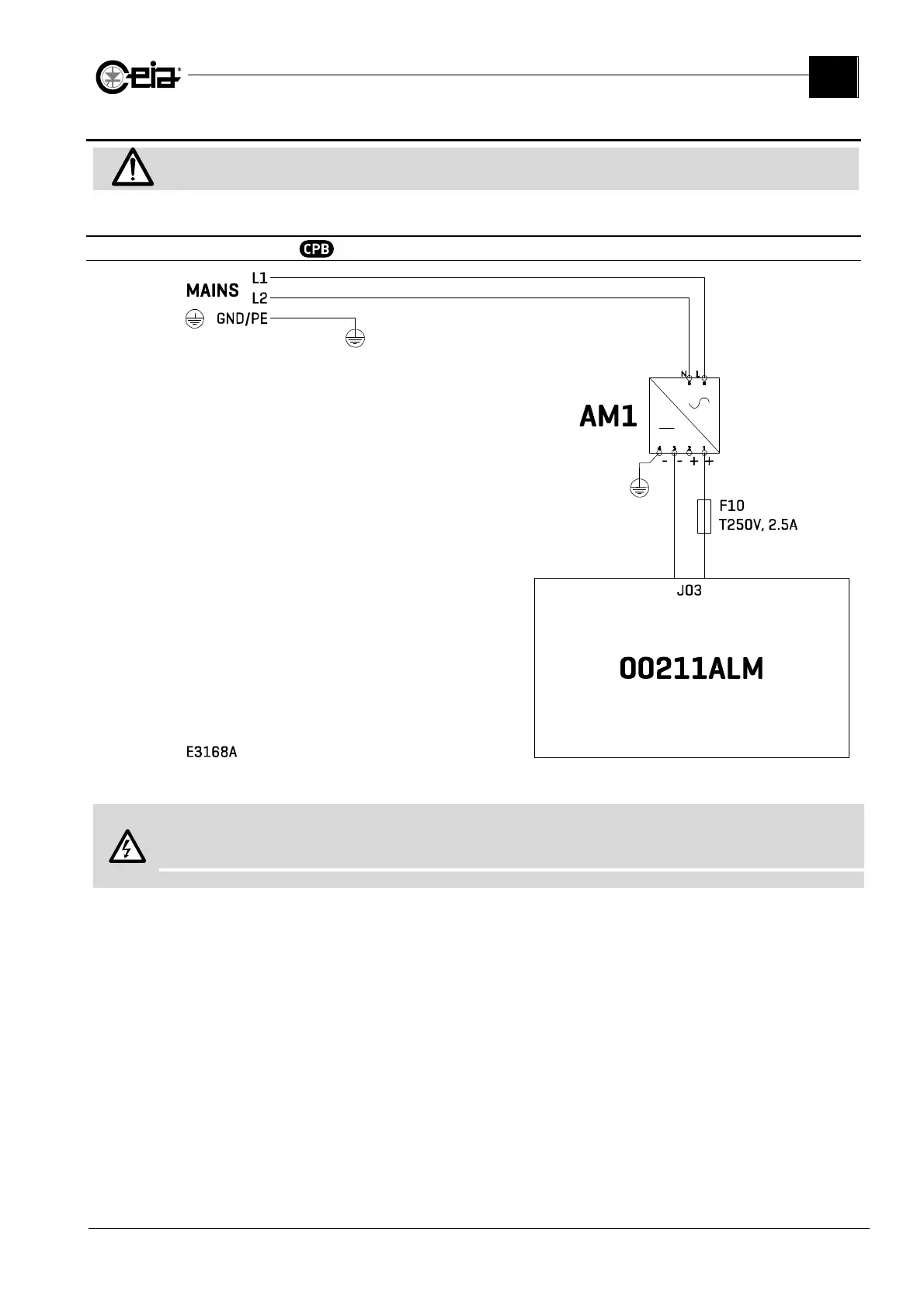

3.6.1.1 Control Power Box
MAINS: 100-240Vac, 50/60Hz, 1ph
MAIN OVERCURRENT PROTECTION TO BE PROVIDED ON
SITE
-
MAX 15 A CC CLASS FUSE FOR UL508A APPLICATIONS
-
MAX 16 A FUSE FOR CE APPLICATIONS
PROTECTION DE LIGNE A MAXIMUM DE COURANT A
INSTALLER SUR LE SITE
-
FUSIBLE CLASS CC 15A MAX POUR APPLICATION UL508A
-
FUSIBLE 16A MAX POUR APPLICATION CE
MAIN DISCONNECT SWITCH TO BE PROVIDED ON THE FIELD SECTIONNEUR DE LIGNE A INSTALLER SUR LE SITE
