Ceia THS/21 - THS-MBR (Modular Belt)

2
FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance
DESCRIPTION
24 ORIGINAL INSTRUCTION

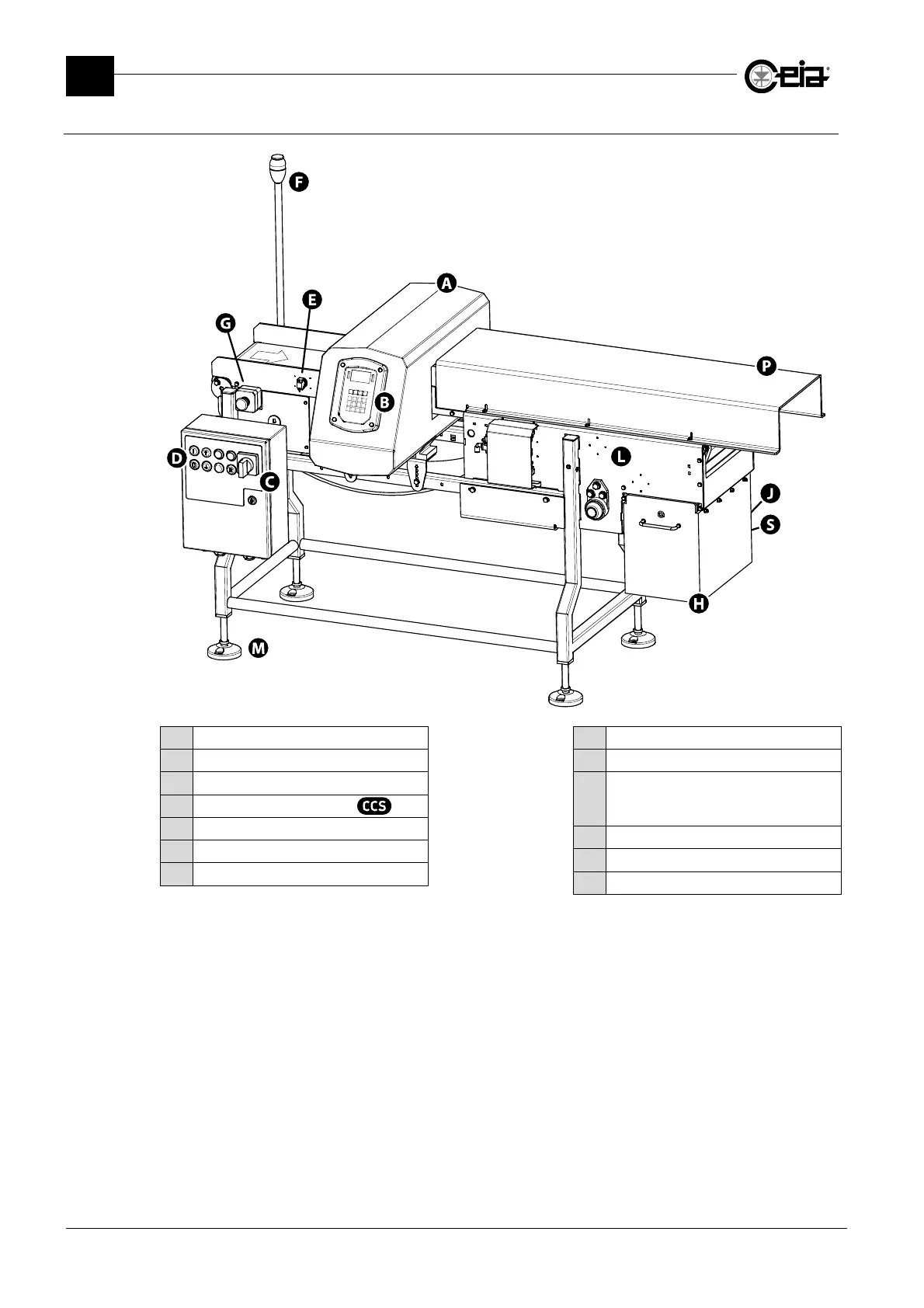

2.3.2.4 THS-MBR (modular belt)
A Metal Detector Probe
B Programming and control panel
C
Main switch
D
Conveyor belt control panel
E
Synchronization photocell
F External beacon
G Emergency button
H Reject bin
J Magnetic safety sensor
L
Ejection system, fitted with Ejection
Confirmation and Ejector Position
Check sensors
M
Support feet (to be fixed to the floor)
P
Ejection area protection cover
S Bin full sensor (optional)
