FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance

INSTALLATION

92 ORIGINAL INSTRUCTION

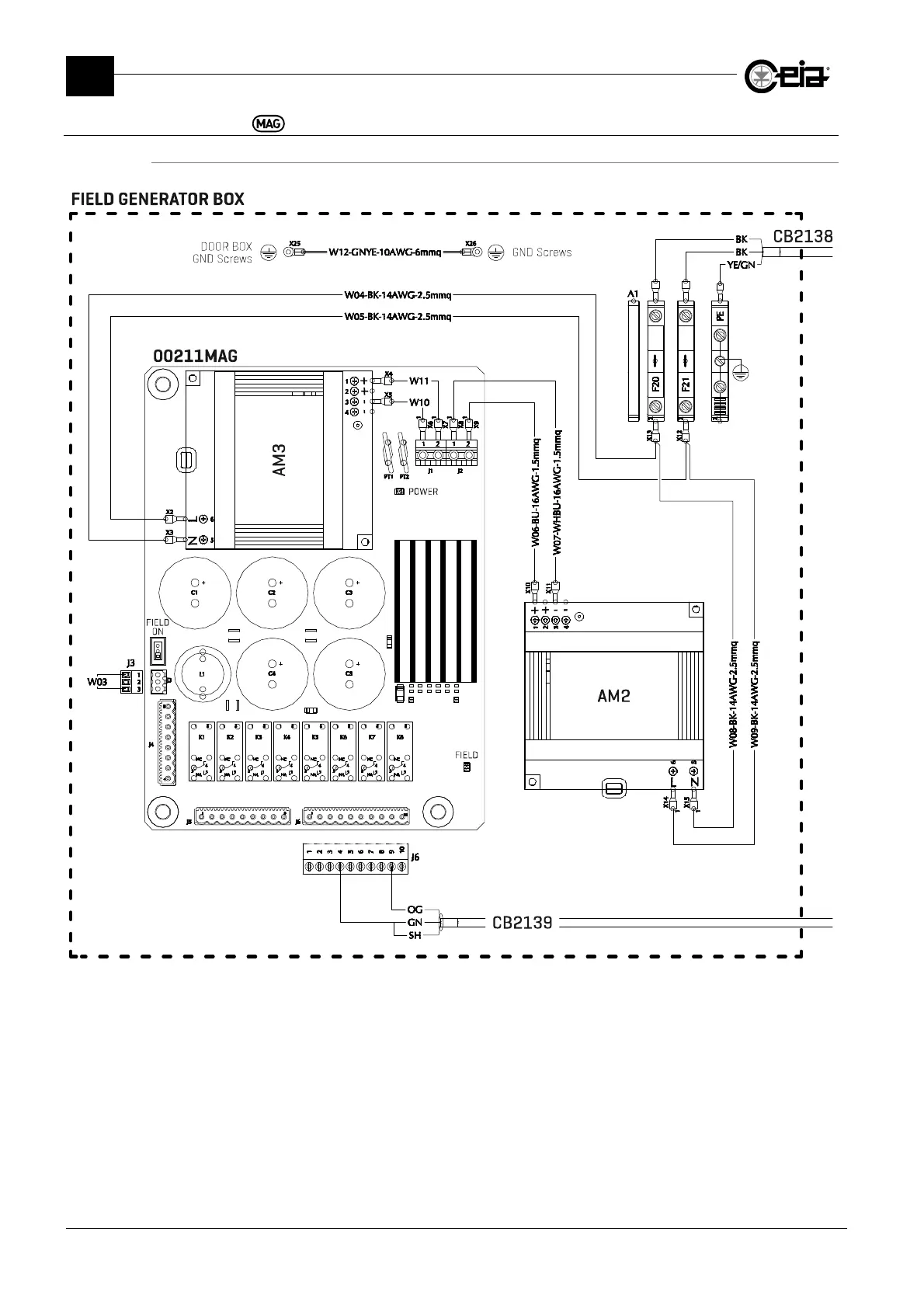

3.6.2.3 Field Generator for THS/MN21

E2559A

Trimmers on AM3 and AM2 are preset to obtain an output voltage of 21.8V on each

module.
