Ceia THS/21 - Operating the Device

4
FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance
USE OF THE DEVICE
156 ORIGINAL INSTRUCTION

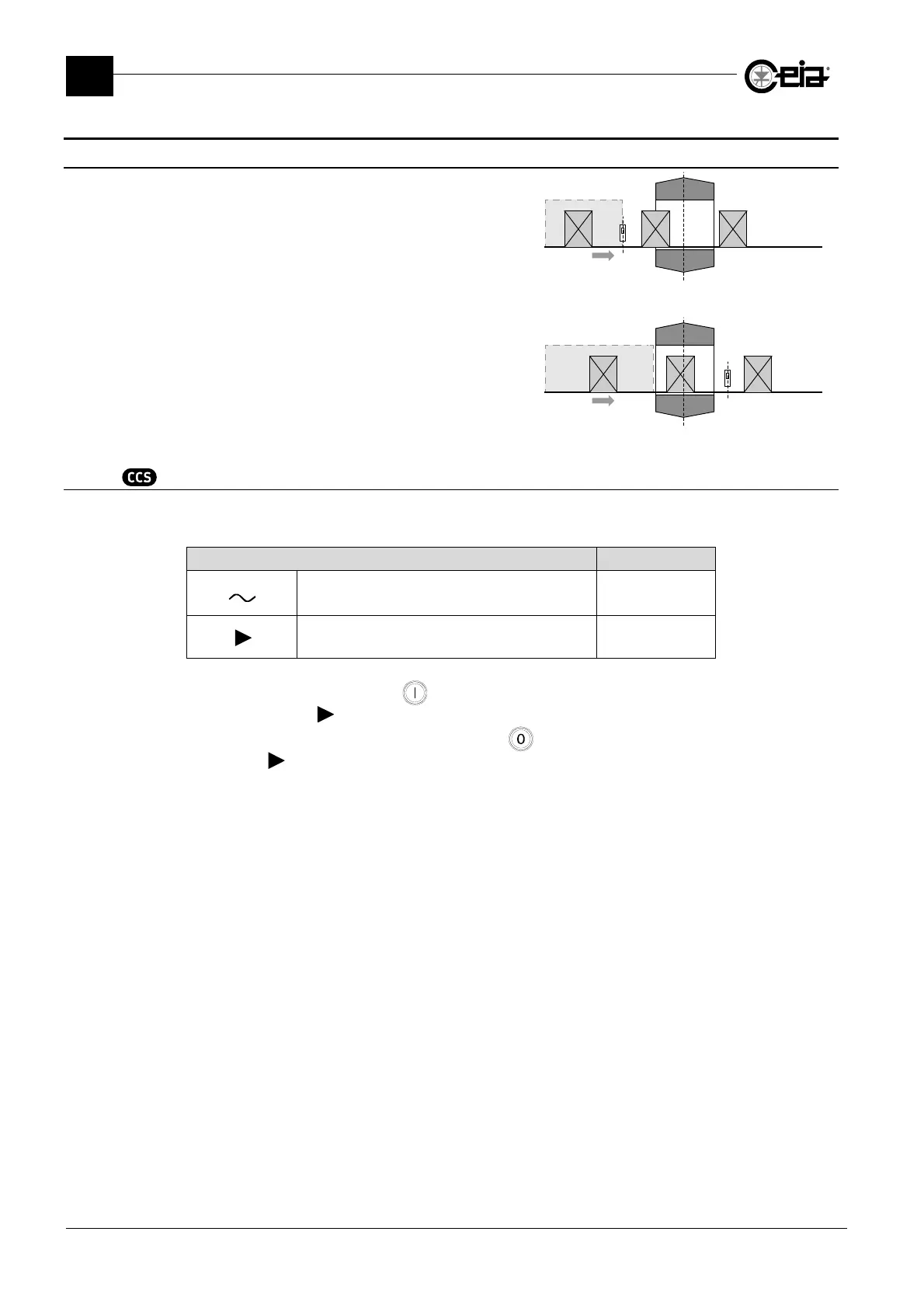

4.4 Use of the device
4.4.1 Loading the product to be inspected
The product to be inspected shall be loaded before
the Probe and, if present, before the
synchronization photocell.
Photocell at the entrance
Photocell at the exit
S: Metal Detector Probe; N: Conveyor belt;
F: Synchronization photocell;
I: Correct area where the product shall be loaded
4.4.2 Starting/stopping the conveyor belt
With the power supply on and with the motor stopped, check that the LED are ON or OFF as shown
in the following table:
Indicator Status
Mains voltage ON
Motor running OFF

Press the
Start
GREEN button to start the motor: check that it starts up, and that the
“motor on” indicator comes on.

To stop the motor, press the
Stop
RED button : check that it stops, and that the “motor
on” indicator goes off.
N
S
F
I
N
S
I
F
