FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance
3
INSTALLATION
ORIGINAL INSTRUCTION 77
3.4.5 Flow adjustment
3.4.5.1 Ejector cylinder
If the factory settings for the cylinder piston speed is not suitable for the product to be ejected, you
can adjust it using the IN and OUT flow regulators AM42 and AM43 on the cylinder.

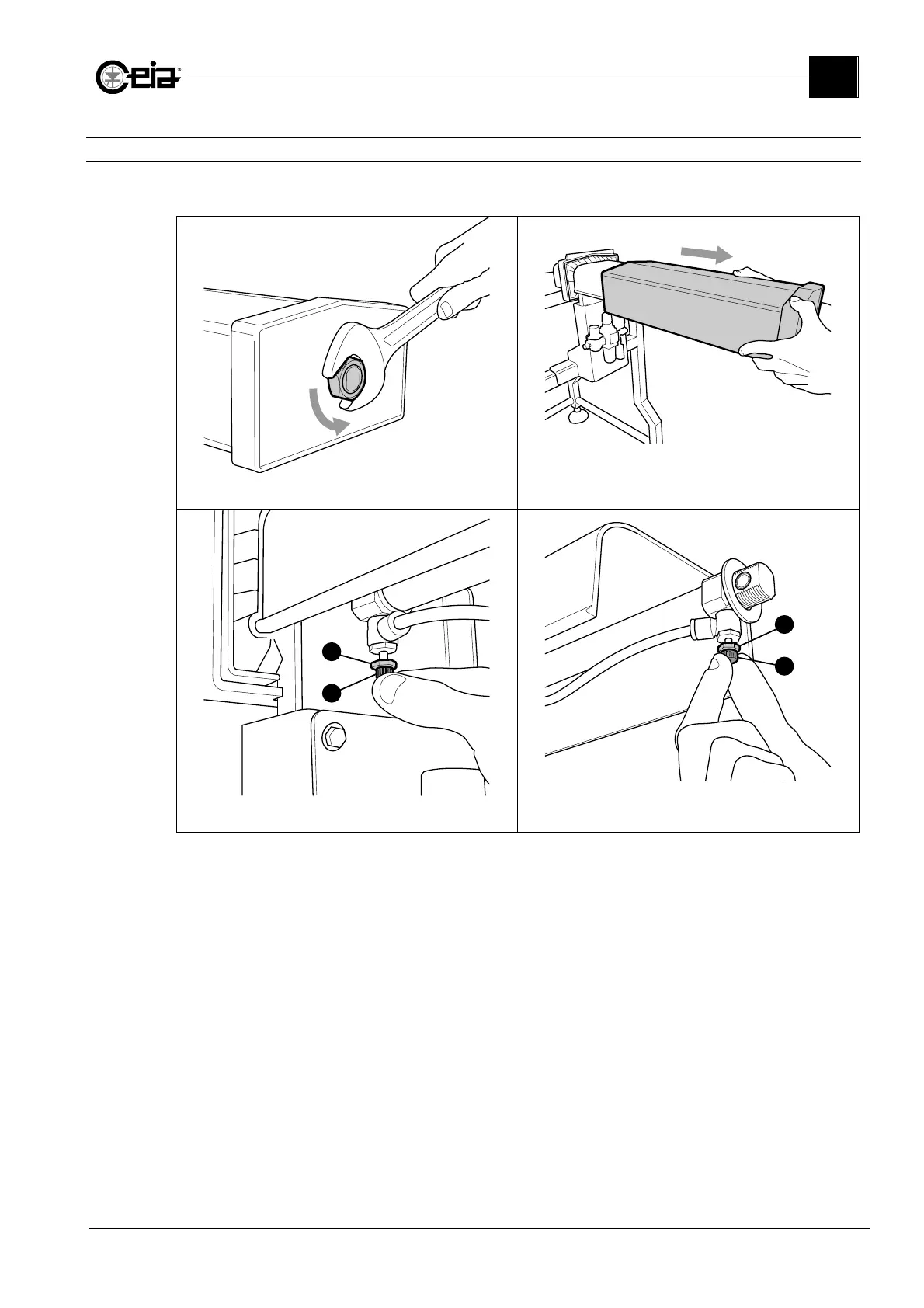

Using a N.32 wrench, unlock and remove the piston
carter nut
Pull the carter out of its place
Loose the blocking nut A, adjust the IN flow by rotating
the knob B, then lock again tightening the nut A
Loose the blocking nut A, adjust the OUT flow by rotating
the knob B, then lock again tightening the nut A
A
B
A
B
