USE OF THE DEVICE
ORIGINAL INSTRUCTION 153

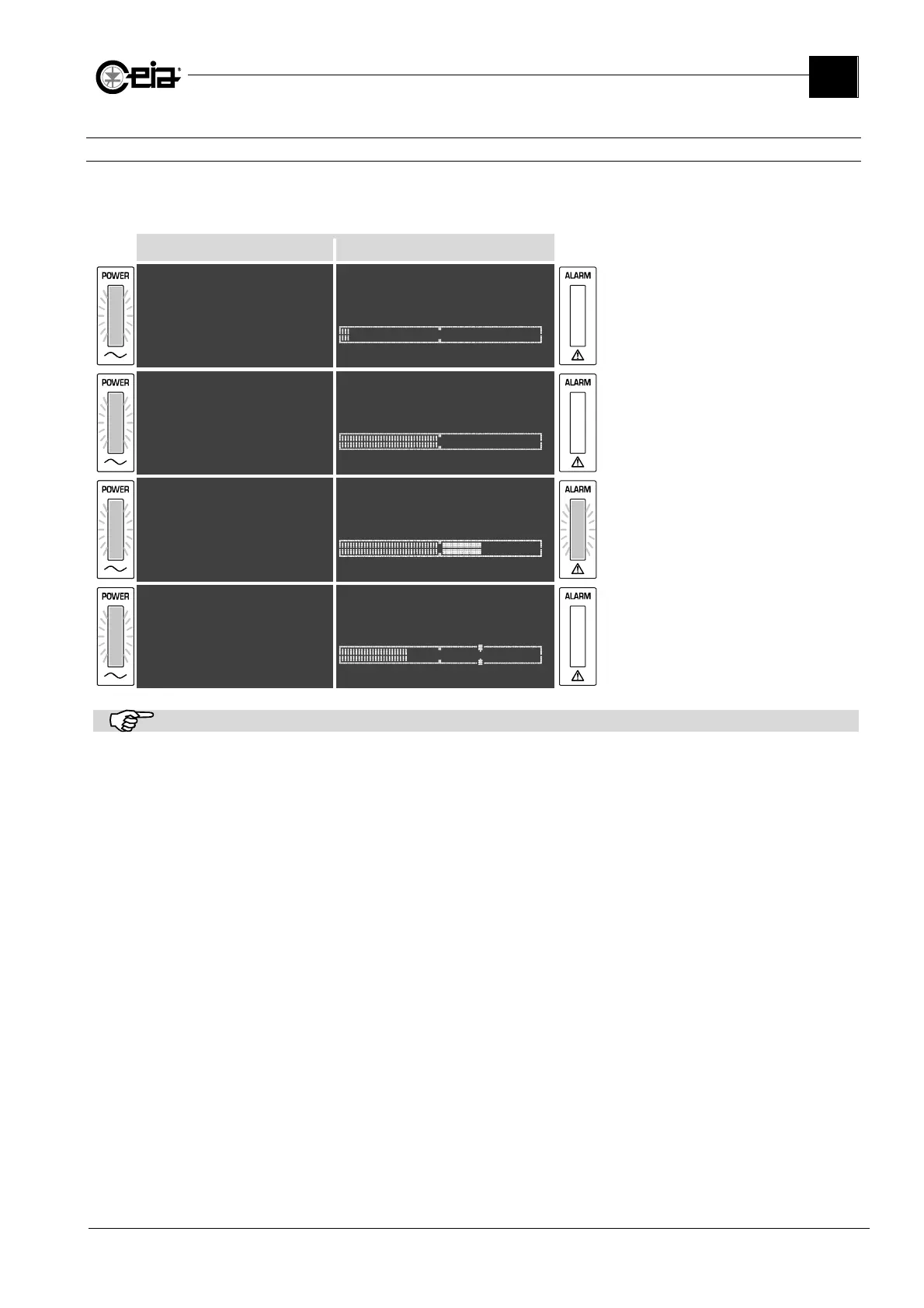

4.3.4 Signals given during normal operation
4.3.4.1 Indication of the received signal
On the fourth line of the display the signal being received is displayed by a horizontal illuminating
bar, divided into sections. When the signal increases, the bar extends towards the right. The alarm
threshold corresponds to the centre of the bar.
THS/xx21E THS/xx21
THS/xx21E V5.xxx
Prod. PROD01
^
CEIA
THS
/xx
21
ALM V5.xxx THS V5.xxx
Product:PROD01
Signal well below the threshold level
THS/xx21E V5.xxx
Prod. PROD01
^^^^^^^^^^
CEIA
THS
/xx
21
ALM V5.xxx THS V5.xxx
Product:PROD01
Signal just below the threshold level
THS/xx21E V5.xxx
Prod. PROD01
A: 4.0dB
^^^^^^^^^^*****
CEIA
THS
/xx
21
ALM V5.xxx THS V5.xxx
A: 4.0dB
Product:PROD01
Signal above the threshold level (alarm)
THS/xx21E V5.xxx
Prod. PROD01
A: 4.0dB
^^^^
CEIA
THS
/xx
21
ALM V5.xxx THS V5.xxx
A=4.0dB
Product:PROD01
After the alarm, the maximum signal
amplitude is displayed for a few seconds
together with its amplitude
The screens shown here are purely indicative.
