CEIA integrated systems incorporate the THS Metal Detector, a conveyor belt and all the related
accessories (e.g. ejection system, reject collection system, barcode reader) in a single system where
all the components are ready installed and configured.
The integrated systems are available with various types of belt, Metal Detector and accessory and
can therefore be customized to individual requirements and applications.

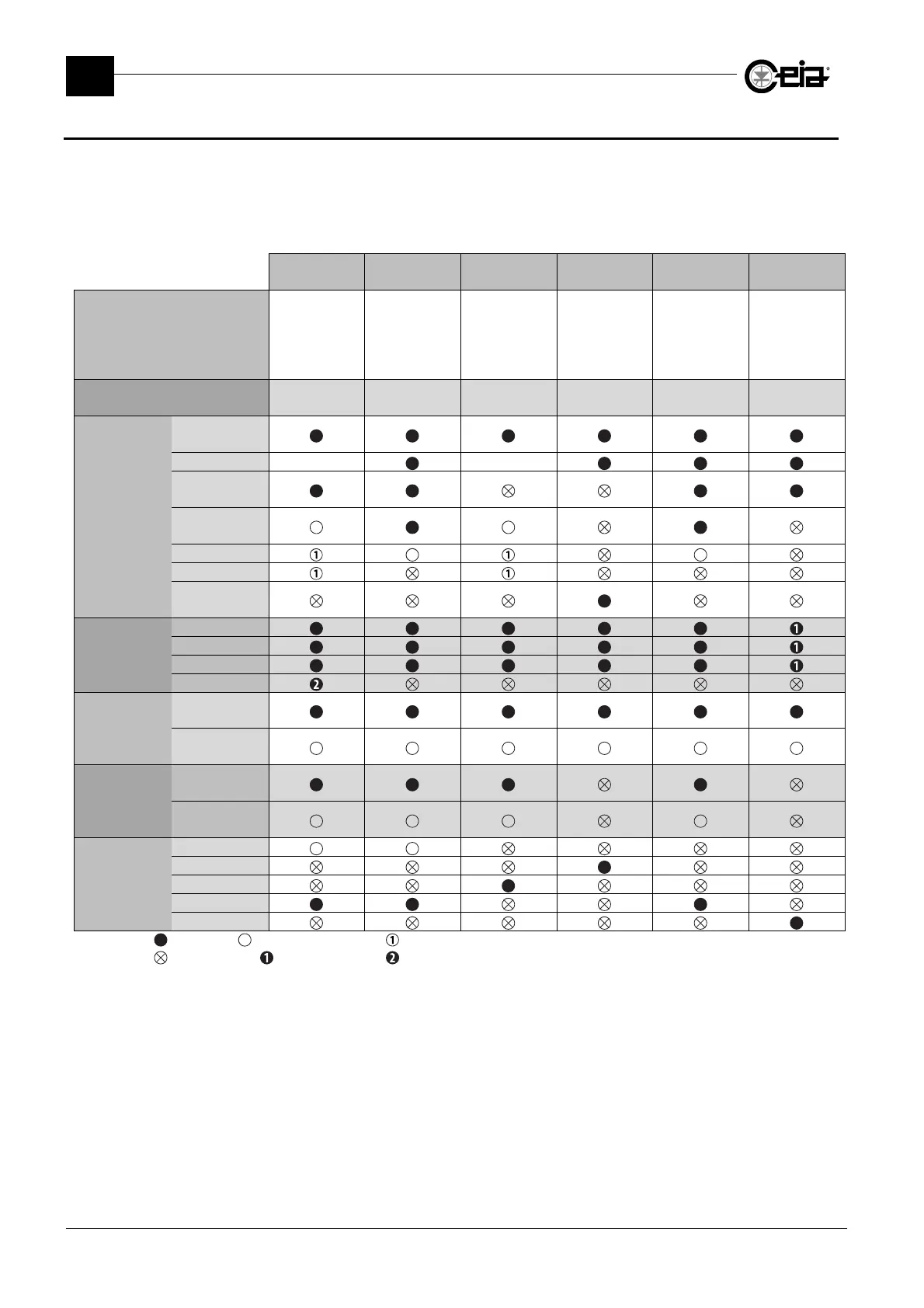

Model
THS-FBB THS-FBBV THS-MBB THS-MBR THS-FBV
THS-RB
THS-RBK
Typical product
that can be inspected
In horizontal
packaging,
single row;
or loose
In vertical
packaging,
single row
In horizontal
packaging,
single row;
or loose
In horizontal
packaging,
single or
multiple row;
or loose
In vertical
packaging,
single row
In horizontal
packaging,
single row
Belt type Flat Flat Modular Modular Flat Round belt
Available
ejection
mode
Signalization
relay
Belt stop
 
Reversing
belt
Reject pusher
cylinder
Reject air jet
Bridge ejector
Retracting
belt
Detection
Probe type
THS/21x
THS/MS21
THS/21E-3F
THS/MN21
Transito
direction
from left
to right
from right
to left
Ejection
direction
Towards
the front
Towards
the back
Speed
(m/min)
8 ÷ 40
10 ÷ 35
10 ÷ 55
14 ÷ 60
20 ÷ 80
: Standard - : Available on request - : Available on request, only on some configurations
: Not available - : Only SL version - : Only with belt length of 2000 mm
For details of customized versions with different dimensions and configurations, contact our Sales
Department.
