Ceia THS/21 - Small Size Power Supply

To Next Page

To Previous Page

FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance

INSTALLATION

ORIGINAL INSTRUCTION 91

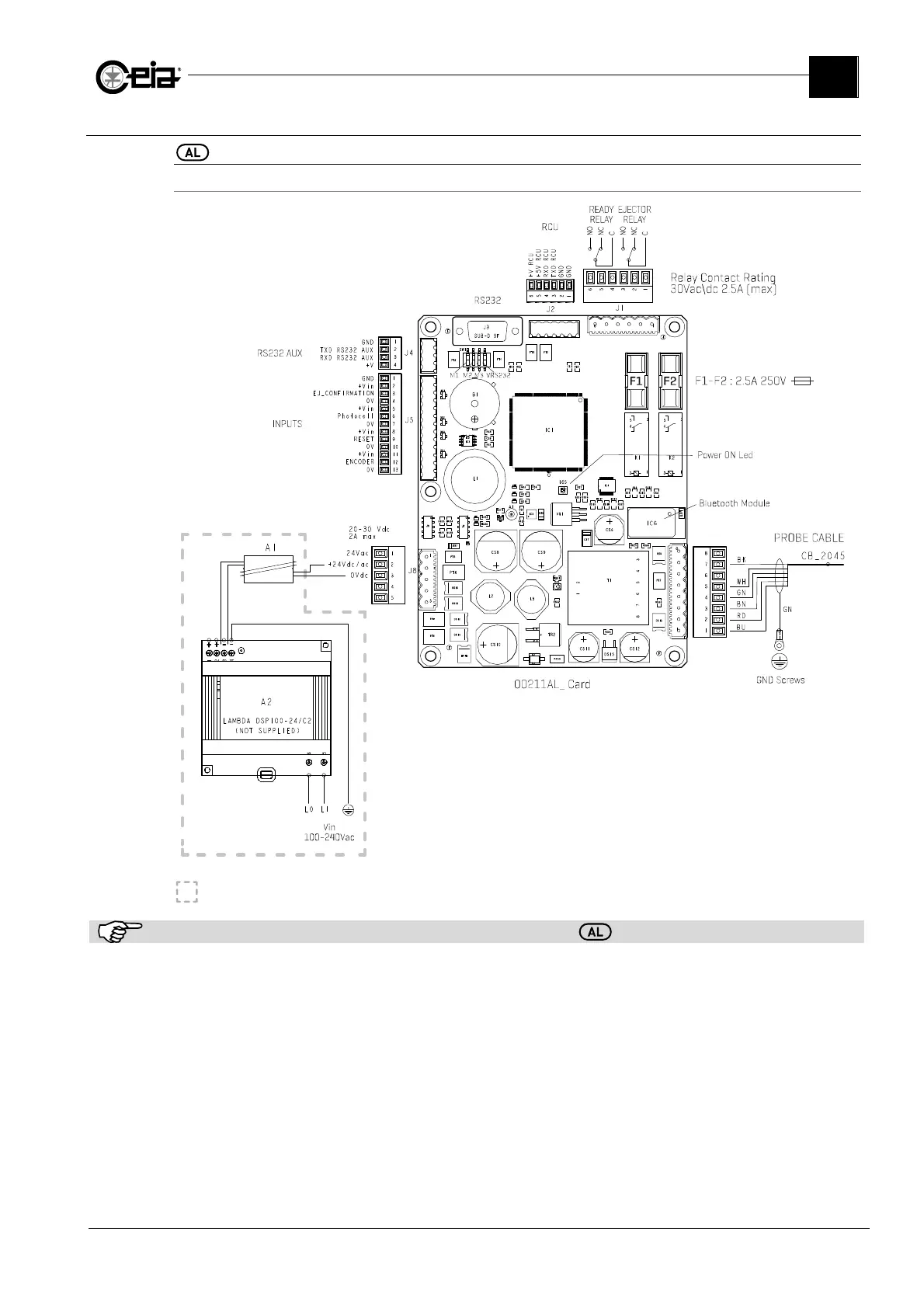

3.6.2.2 Small Size Power Supply

card

E2888

AC/DC 24V recommended module (not provided)

Wrap the output wires of the AC/DC module on the ferrite supplied with the board.
