INSTALLATION
52 ORIGINAL INSTRUCTION
3 INSTALLATION
Before starting any installation operation, carefully read all warnings and precautions described in this section and in the
Warnings Manuals supplied with the device.
Observe current regulations regarding electrical and personal safety for both the operator and the installer when
installing the device.
3.1 Minimum requirements
The minimum installation requirements depend on the THS model being installed. For precise details,
see the Technical Specifications section.
3.1.1 Minimum installation clearance
The minimum space for the System installation takes into account the overall dimensions of the
System and the surrounding minimum space that must be free for a correct use of the System itself.
Refers to the relative mechanical drawings (paragraph 2.6).
3.1.1.1 Detection Probes
For safe use of the equipment by the operator, and for maintenance operations, provide a free area
of at least 50 cm in front of the control panel and the power supply unit, in its configuration with the
door open.
3.1.1.2 Integrated systems
For safe use of the equipment by the operator, and for maintenance operations, provide a free area
of at least 50 cm around the equipment, in its configuration with all the doors open and the reject bin
absent.
The System shall be installed on a flat surface.

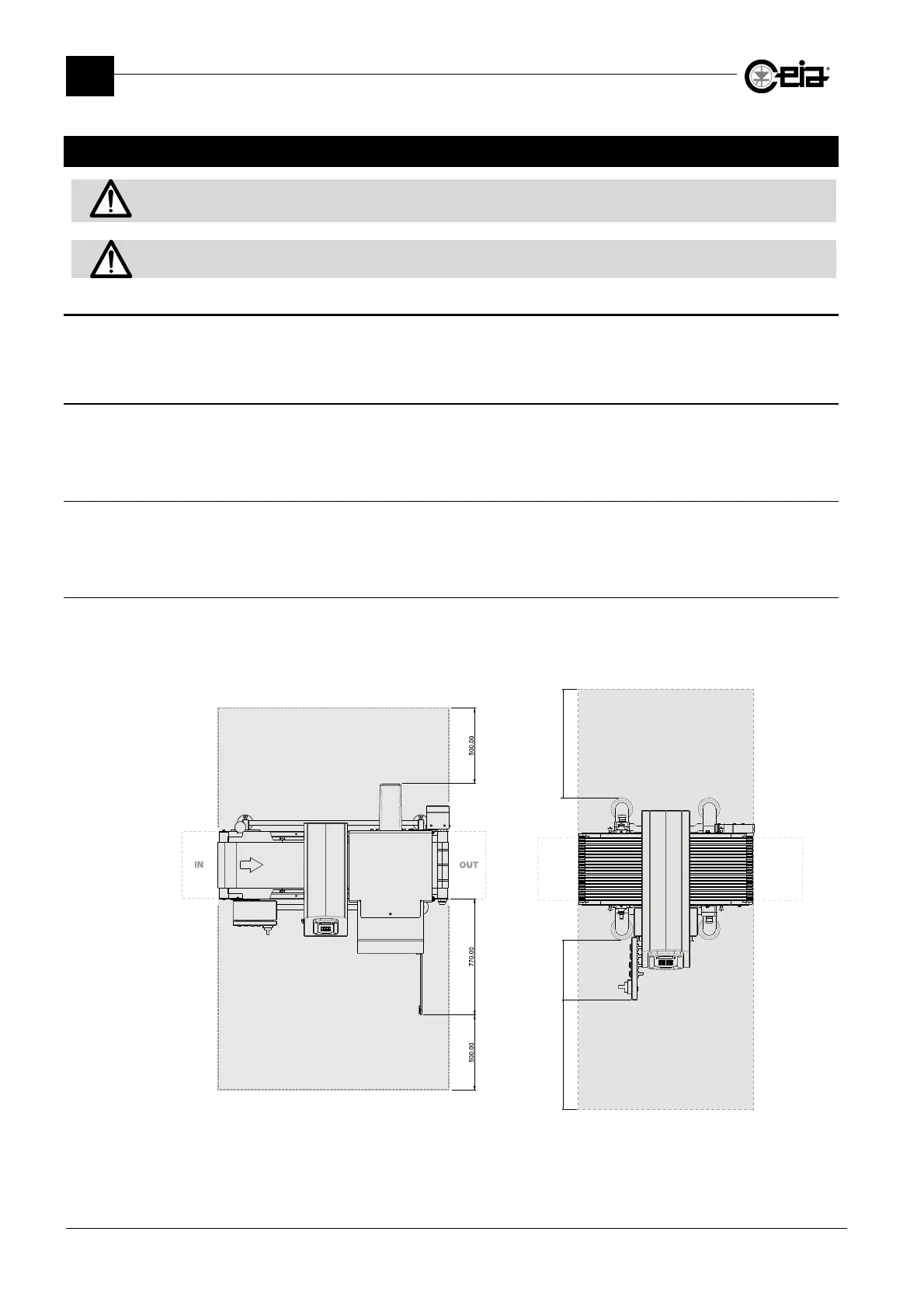

Example for THS-FBB and THS-MBB
Example for THS-RB
275.00500.00 500.00
IN OUT
