3.4.5.2 Air jet ejector
If the works flow regulator setting is not suitable for the product to be ejected, you can adjust this
setting on the flow regulator AM42.

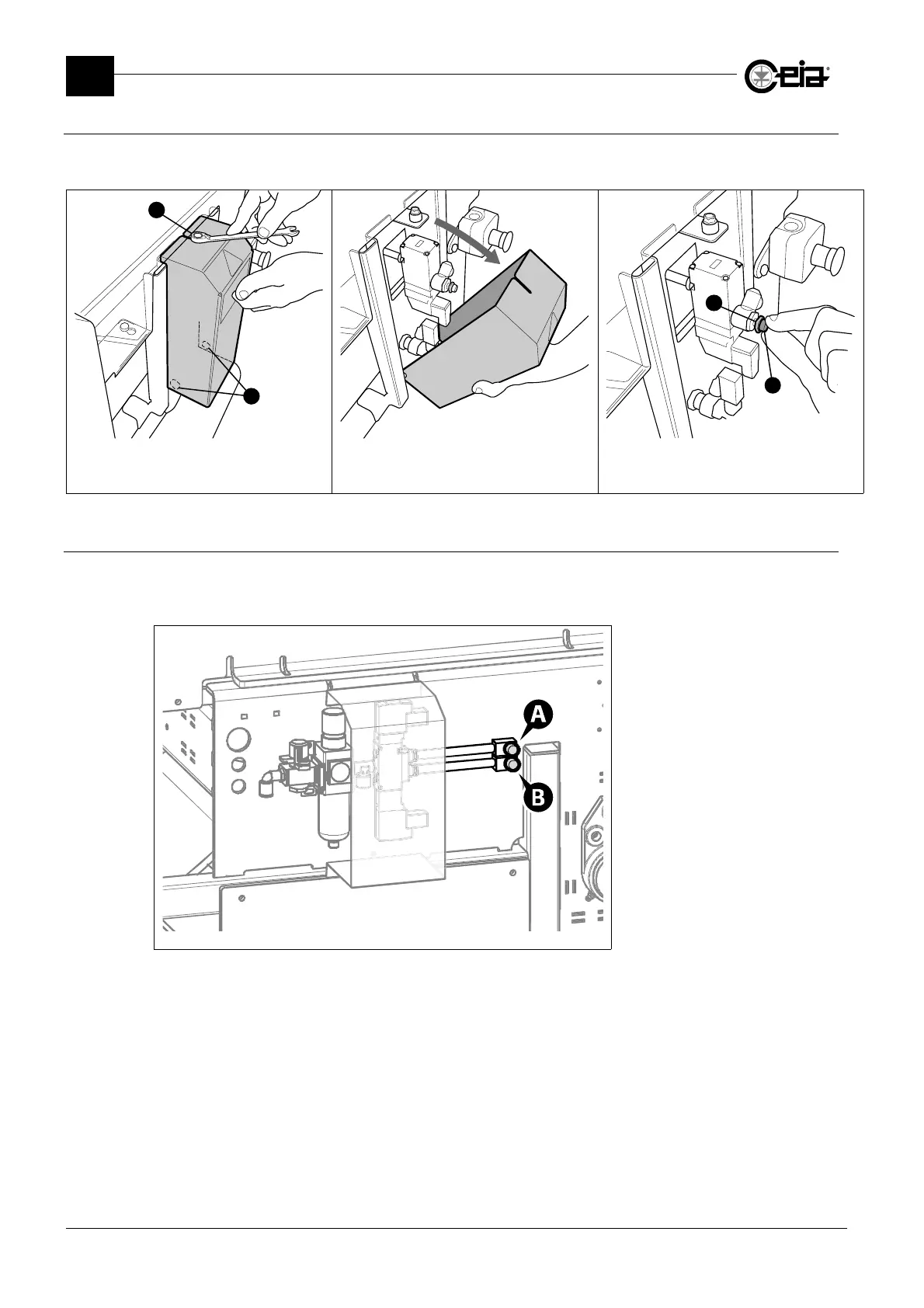

Loose the two nuts A located inside the
carter, accessible from below, then loose
nut B also
Open the carter by rotating them on the
lower pivots
Loose the blocking nut A, adjust the air flow
by rotating the knob B, then lock again
tightening the nut A
3.4.5.3 Retracting belt
If the factory settings for the retracting belt speed is not suitable for the product to be ejected, you
can adjust it using the IN and OUT flow regulators AM42 and AM43 on the air pipes of the retracting
belt supply.
Adjust the IN and OUT flows through A and B knobs
B
A
A
B
