FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance
DESCRIPTION
14 ORIGINAL INSTRUCTION
2.2.6 Applicable power supply boxes

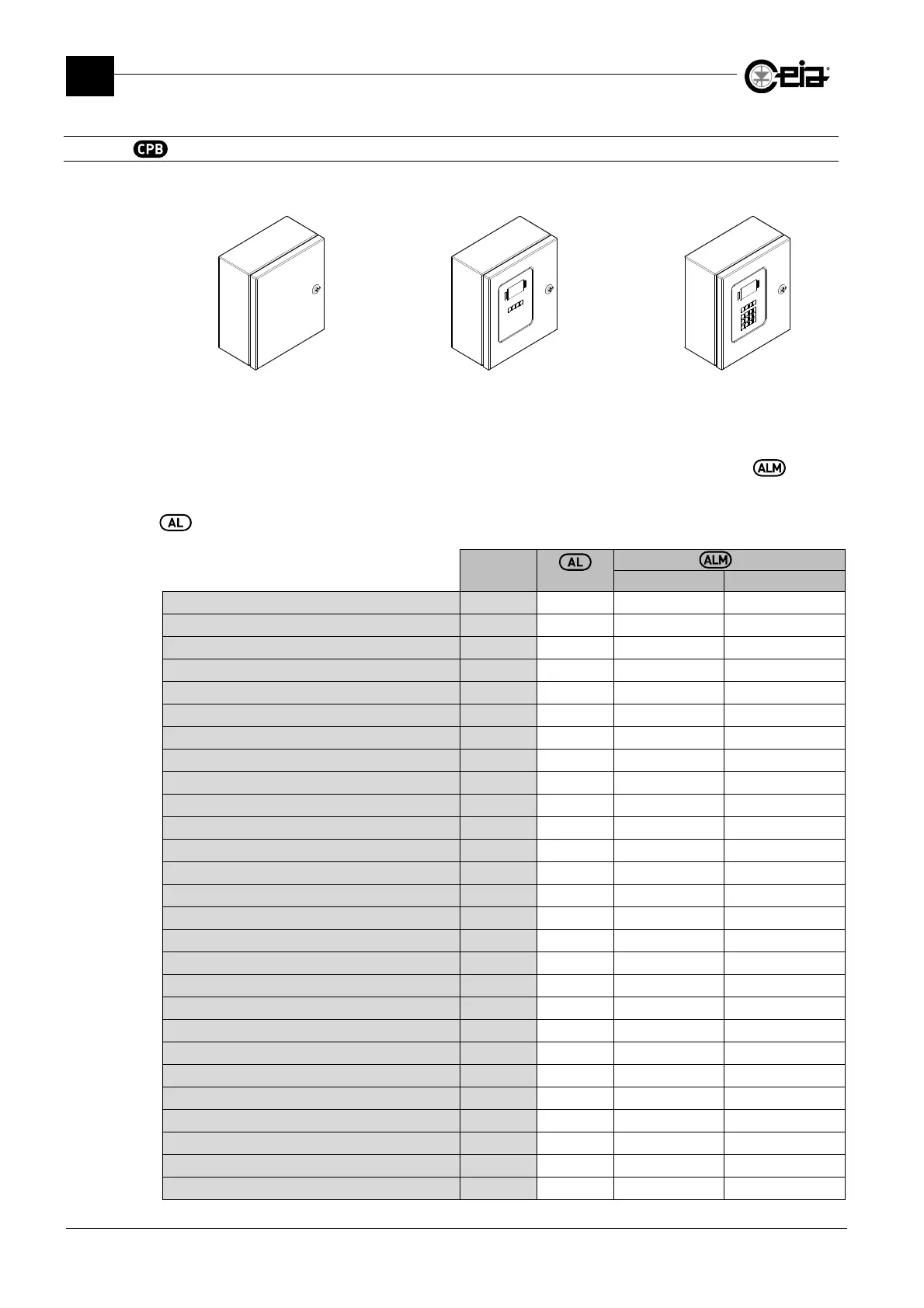

2.2.6.1 Control Power Box
The Control Power Box contains the Metal Detector power supply unit. It has connections for external
sensors and slave devices and can also house the remote control unit (RCU).
Control Power Box Control Power Box with Remote
Control Unit (RCU), with 4-key
keyboard and alphanumeric display
(21E series)
Control Power Box with Remote
Control Unit (RCU), with 16-key
keyboard and graphic display (21
Series)
The basic version and the complete version of the Control Power Box are fitted with an card.
The difference between the two versions is in the type and number of connections for external
devices as detailed in the table below, where all data related to the small-size power supply unit
( card) are also reported:
IN / OUT
card
card
Basic version Complete version
Auxiliary relay (AUX RELAY) OUT
Test request relay (TEST REQUEST RELAY) OUT
Upstream conveyor relay (PREC CONV RELAY) OUT
Ready relay (READY RELAY) OUT
Ejection relay (EJECT RELAY) OUT
Alarm relay (ALARM RELAY) OUT
RS-232 IN / OUT
Barcode Reader IN
Auxiliary RS-232 IN / OUT
RCU connection IN / OUT
Ejector OUT
Following Conveyor IN
Inhibition IN
Bin absent IN
Auxiliary input IN
Ejector position check IN
Ejection check IN
Ejection confirmation IN
Ejection synchronization IN
Reset IN
Low pressure IN
Encoder IN
Bin full IN
External beacon OUT
Emergency circuit IN
BT Wireless Communication IN / OUT
Predisposition for Ethernet/WIFI card IN / OUT
